Bin-Full/Narrow Media Sensor Removal - Lexmark C540n Service Manual

5025-2xx, 4xx

Bin-full/narrow media sensor removal

See "Photo sensor" on
Open the front cover.
1.
Remove the cable from the retainer.
2.
Note: Be sure to note the routing for re-installation.
Disconnect the cable from the bin-full/narrow media sensor.
3.

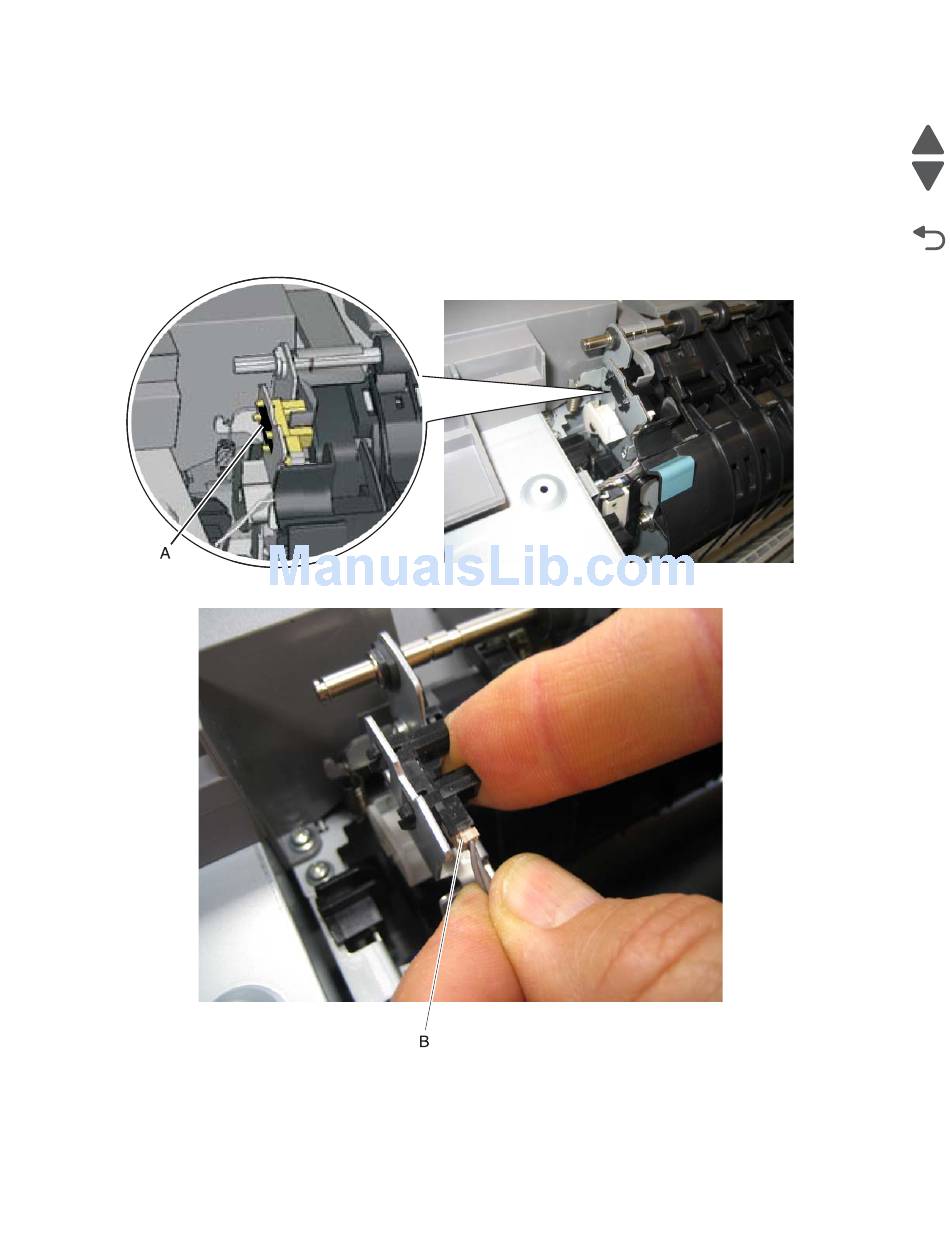

4. If there is a sensor retaining plate (A) on the side the latches connect, remove the old adhesive plate.
Gently remove the sensor (B) from the bracket by pressing the latches.
5.
Service Manual
4-18
for the part number.
page 7-7
