3

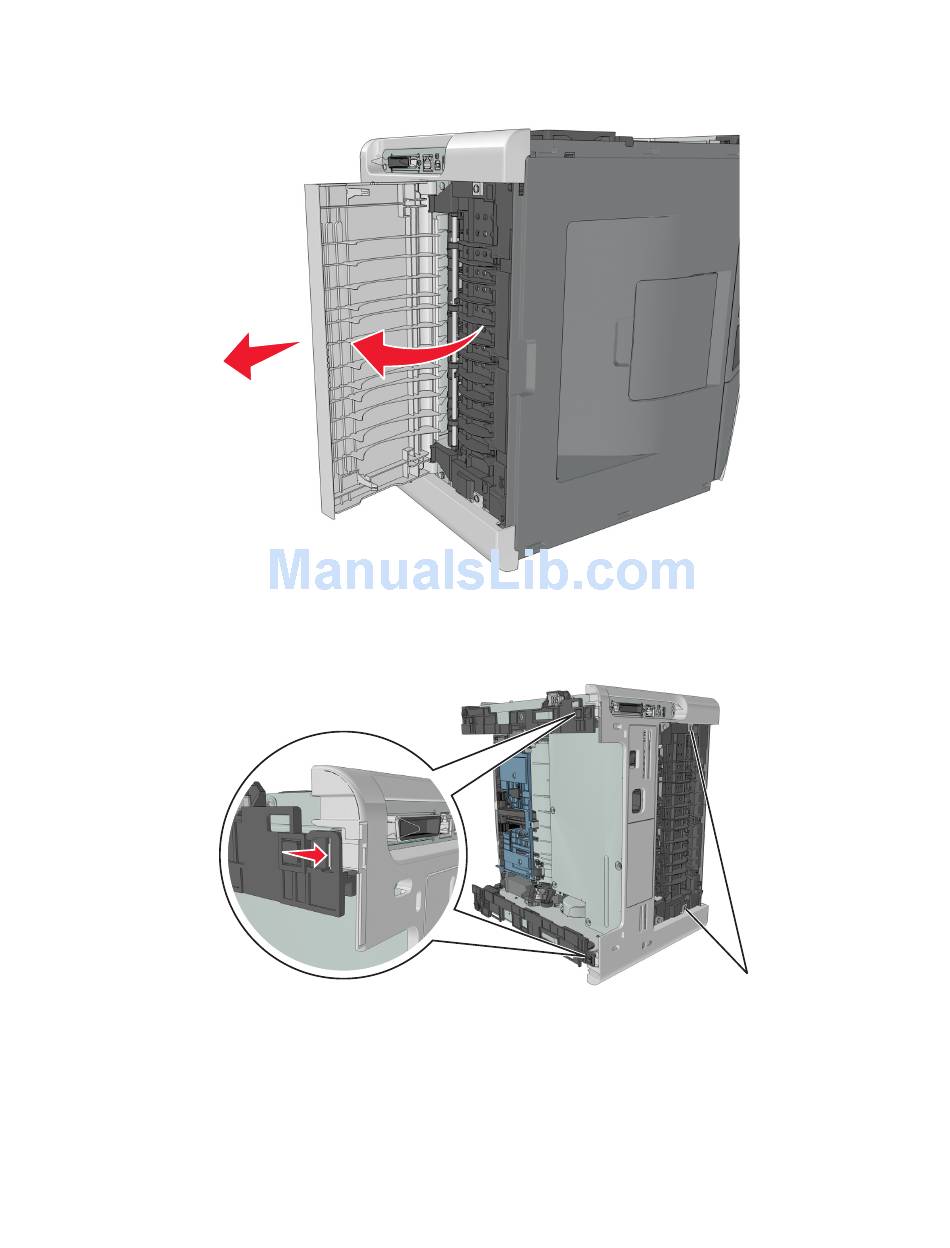

Pull the rear door to remove.
4
Remove the two screws (A) securing the rear cover.
5
Press the two latches to release the rear cover.

Narrow media/bin full sensor removal

1
Remove the right cover. See
2
Remove the left cover. See
3
Remove the rear door and cover. See
"Right cover removal" on page
"Left cover removal" on page
"Rear door and cover removal" on page
Repair information
243
4514-630, -635, -636, -638, -639, -649
179.
166.
242.
A
