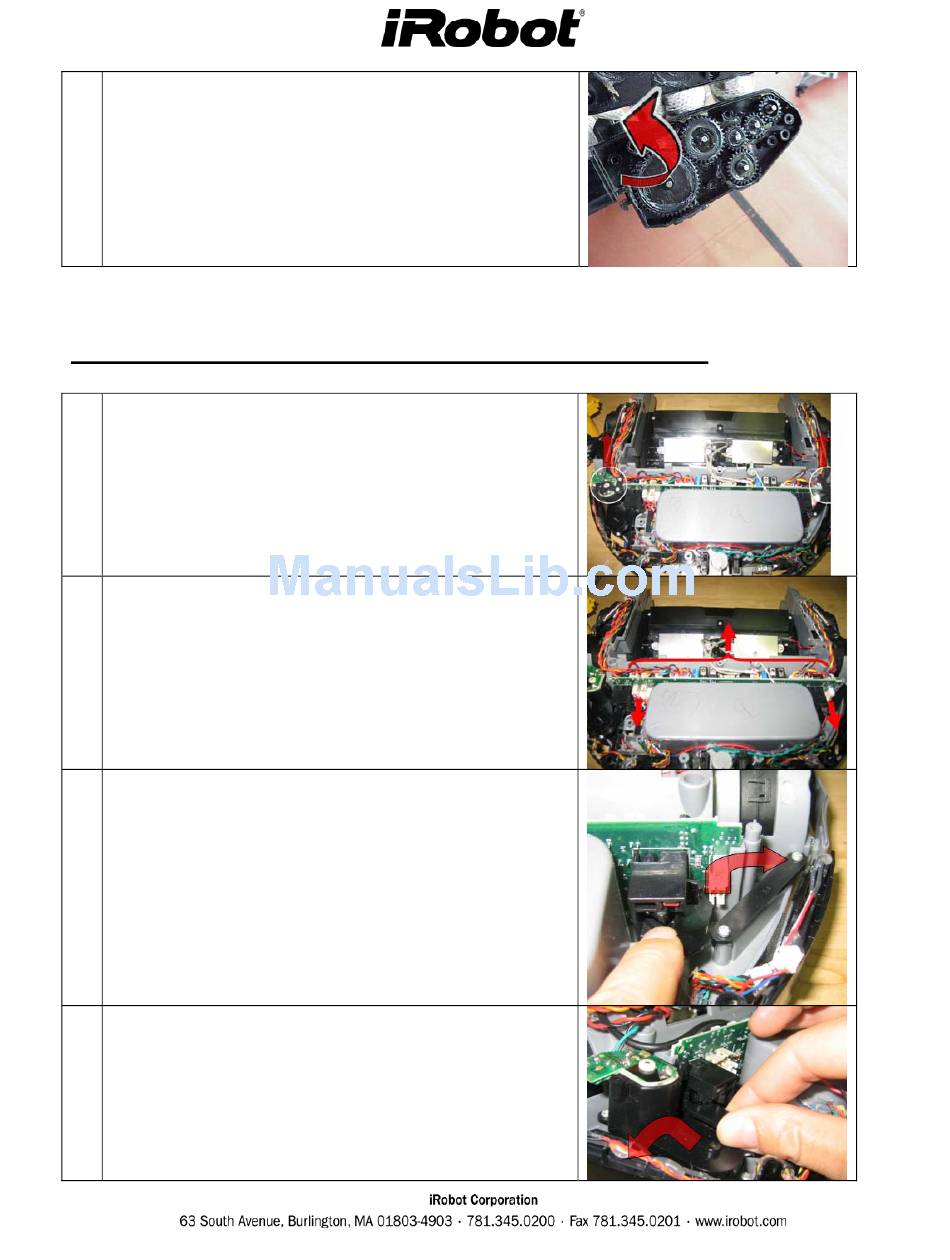

Lift the side gear box cover to inspect gears. Clear of
9
hair and apply lubricant grease if necessary.
Roomba Main PCB & Inner Bumper Removal Procedure
Unscrew the mounts (4) holding down the pcb on the
1
edges.
2
Detach all the connectors attached to the pcb.
Swing the inner bumper arm towards the pcb and
3
outwards to disengage it.
Swing the bumper arm towards the pcb and outwards
4
to disengage it. Allow the pcb to lift to avoid hitting
the side brush gearbox housing.
