Page 1 PCL Printer Driver Setting (Windows) Chapter 9: PostScript PPD Printer Driver setting (Windows) Chapter 10: KONICA MINOLTA PS Printer Driver setting (Windows) Chapter 11: PostScript PPD Printer Driver setting (Mac OS 9) Chapter 12: PostScript PPD Printer Driver setting (Mac OS X)

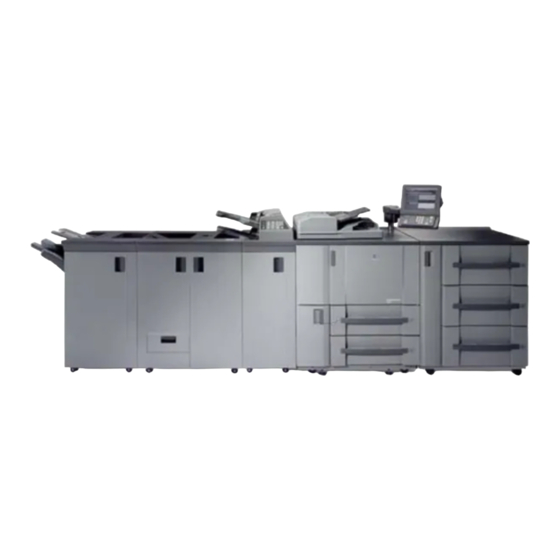

Page 2 Thank you very much for purchasing the bizhub PRO 1050/1050e/1050P/ 1050eP. This User's Guide includes instructions for making prints, correct handling of the machine, and precautions for safety. Please read this manual before printing. In order to maintain a satisfactory printing performance, please keep this User's Guide readily available for reference.
Page 3: Table Of Contents
Table of contents Introduction About this Product ................1-5 Folder structure on the CD-ROM (bizhub PRO 1050 Series CD-ROM) ..........1-6 Folder structure on the CD-ROM for Windows (PS-502 CD-ROM) ................1-7 Folder structure on the CD-ROM for Mac OS (PS-502 CD-ROM) ................
Page 4 About Properties window ..............8-1 8.1.1 Properties window ................. 8-2 About button ..................8-3 Combination of the function ............8-4 General tab ..................8-5 Sharing tab ..................8-6 Ports tab .................... 8-7 Advanced tab ..................8-9 Color Management tab ..............8-11 bizhub PRO 1050/1050e/1050P/1050eP...
Page 5 Device Settings tab ................ 9-12 Layout tab ..................9-16 9.10 Paper/Quality tab ................9-18 9.11 Advanced Options windows ............9-20 10 KONICA MINOLTA PS Printer Driver setting (Windows) 10.1 About Properties window .............. 10-1 10.1.1 Properties window ............... 10-2 10.2 About button ...................
Page 6 Page Attributes (Page Setup window) .......... 12-3 12.3 Custom Paper Size (Page Setup window) ........12-5 12.4 Copies & Pages (Print window) ............. 12-7 12.5 Layout (Print window) ..............12-8 12.6 Paper Feed (Print window) ............12-10 bizhub PRO 1050/1050e/1050P/1050eP...
Page 7 Outline of the PageScope Web Connection ........ 15-2 15.1.2 Start the PageScope Web Connection ........15-3 15.1.3 Print the Report ................15-21 15.2 Using KONICA MINOLTA Peer to Peer Printing Tool ....15-22 15.3 Internet Printing ................15-26 15.4 NetWare ..................15-31 15.5 UNIX Printing through TCP/IP .............
Page 8: Introduction
1050eP (The following writes it as bizhub PRO 1050 Series). This User's Guide describes the operating procedures and safety precau- tions of the bizhub PRO 1050 Series so that you can handle it safely and make the best of its capabilities. Usually keep this User’s Guide close at hand for the convenience of reference later.
Page 9 88 built-in Agfa Microtype fonts. For a complete list, refer to "Font" on Page 14-1. When equipping PostScript kit, the print controller also includes support for Adobe PostScript 3 (PS3) and includes the 136 built-in Adobe fonts. For a complete list, refer to "Font" on Page 14-1. bizhub PRO 1050/1050e/1050P/1050eP...
Page 10 States and/or other countries. In regard to the Citrix access Partner Network Premier KONICA MINOLTA BUSINESS TECHNOLOGIES, Inc. is a member of the Ci- trix access Partner Network. The Citrix access Partner Network is a program that, in combination with a solution of Citrix, promotes and develops solutions to provide the customers with better solutions.
Page 11 - A part or all of this User's Guide may not be used or copied without per- mission. - KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. will have no liabil- ity for any influences caused by using the printing system and this User’s Guide.
Page 12: About This Product
Introduction About this Product Package Contents The following items are supplied with the Print Controller: - bizhub PRO 1050 Series CD-ROM (Windows) - Printer Driver - Scanner Driver (compatible with TWAIN) - Network Connection Utilities Peer to Peer Printing Tool...
Page 13: Folder Structure On The Cd-Rom (Bizhub Pro 1050 Series Cd-Rom)
Introduction Folder structure on the CD-ROM (bizhub PRO 1050 Series CD-ROM) The folders included on the accompanying CD-ROM for print controller are structured as shown below. This illustration will be helpful for locating specific folders or files. - In this manual, folder names and file names are not necessarily preceded by the root directory.
Page 14: Folder Structure On The Cd-Rom For Windows (Ps-502 Cd-Rom)
WinNT_2K_XP_2003Server (Printer Driver for Windows 2000/XP/Server 2003) UserGuide ZH-TW Driver AdobePS Win9X_Me (Printer Driver for Windows) WinNT (Printer Driver for Windows NT4.0) Win2K_XP_Server2003 (Printer Driver for Windows 2000/XP/Server 2003) KonicaMinoltaPS Setup WinNT_2K_XP_2003Server (Printer Driver for Windows 2000/XP/Server 2003) UserGuide bizhub PRO 1050/1050e/1050P/1050eP...
Page 15: Folder Structure On The Cd-Rom For Mac Os (Ps-502 Cd-Rom)
(Printer Driver for MacOS X 10.3x, 10.4x/PPD pkg file) UserGuide ZH-TW Driver OS9_X (Printer Driver for MacOS9.x/PPD file) OS10_2_X (Printer Driver for MacOS X 10.2x/PPD pkg file) OS10_3_X (Printer Driver for MacOS X 10.3x, 10.4x/PPD pkg file) UserGuide bizhub PRO 1050/1050e/1050P/1050eP...
Page 16: About This Manual
Introduction About this Manual This document describes how to operate bizhub PRO 1050 Series as a print- er from various computers and networks. This manual assumes you are familiar with the basic operation of your oper- ating system and the KONICA MINOLTA copier.
Page 17 Chapter 15 Utility Tool This chapter describes how to use the utility tool included on the user software CD. Chapter 16 Appendix This chapter lists and describes technical terms to read this manual. bizhub PRO 1050/1050e/1050P/1050eP 1-10...
Page 18: Notation Of Each Product
PRO 1050/1050e/1050P/1050eP print controller Print Controller: bizhub PRO 1050/1050e/1050P/1050eP PostScript3 : bizhub PRO 1050/1050e Printer/Copier: copier (or main body printer) A printing system that combines the printing system above (1), (2), and (3) products: Microsoft Windows 98 Second Edition:...
Page 19: How To Read This Manual
Click [OK]. The print controller receives and processes a print job sent from your computer. [ ] are used for the terms bizhub PRO 1050/1050e/1050P/1050eP displayed on the screens. This page does not exist in the document. bizhub PRO 1050/1050e/1050P/1050eP...
Page 20: Software License Agreement
Introduction SOFTWARE LICENSE AGREEMENT SOFTWARE LICENSE AGREEMENT This package contains the following materials provided by Konica Minolta Business Technologies, Inc. (KMBT): software included as part of the printing system, the digitally-encoded machine-readable outline data encoded in the special format and in the encrypted form (“Font Programs”), other software which runs on a computer system for use in conjunction with the Printing Software (“Host Software”), and related explanatory written materials (“Doc-...
Page 21 End Users acquire the Software with only those rights set forth herein. 12. You agree that you will not export the Software in any form in violation of any applicable laws and regulations regarding export control of any countries. bizhub PRO 1050/1050e/1050P/1050eP 1-14...
Page 22 TER YOU AGREE TO BE BOUND BY THE TERMS OF THIS LICENSE. The computer programs embedded in the equipment and User Documenta- tion are licensed (not sold) to You by Konica Minolta Business Technologies, Inc. (“KMBT or LICENSOR”). The term “Software” shall be used to describe accompanying Printer Drivers, software included as part of the printing sys- tem including PostScript software and other Adobe software (“Printing Soft-...
Page 23 LICENSOR'S RIGHTS. You acknowledge and agree that the Licensed Articles, including but not limited to the Software and the Documenta- tion, are owned by Licensor and its suppliers, and its structure, organi- zation and code are proprietary and valuable trade secrets of Licensor bizhub PRO 1050/1050e/1050P/1050eP 1-16...
Page 24 CENSED “AS IS,” AND, TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE LICENSOR DISCLAIMS AND EXCLUDES ANY AND ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUD- ING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MER- CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. bizhub PRO 1050/1050e/1050P/1050eP 1-17...
Page 25 48 C.F.R. 12.212. Consistent with 48 C.F.R. 12.212 and C.F.R. 227.7202-1 through 227.7202-4, all U.S. Government End Users acquire the Software with only those rights set forth herein. The manufacturer is: Konica Minolta Business Solutions U.S.A., Inc., 500 Day Hill Road, Windsor, Connecticut 06095 bizhub PRO 1050/1050e/1050P/1050eP...
Page 26 Agreement contains provisions which relate to Li- censee's use of the Software, Font Programs, Typefaces and the trade- marks licensed hereby. Such provisions are made expressly for the benefit of Adobe and are enforceable by Adobe in addition to KMBT. bizhub PRO 1050/1050e/1050P/1050eP 1-19...
Page 27 Introduction SOFTWARE LICENSE AGREEMENT (For Others) (Exclusive for PostScript3) This package contains the following materials provided by Adobe Systems Incorporated (“Adobe”) and Konica Minolta Business Technologies, Inc. (KMBT): software included as part of the printing system, including Post- ® Script software and other Adobe software (“Printing Software”), the digital-...
Page 28 Agreement contains provisions which relate to Licensee’s use of the Software, Font Programs, Typefaces and the trademarks licensed here- by. Such provisions are made expressly for the benefit of Adobe and are enforceable by Adobe in addition to KMBT. bizhub PRO 1050/1050e/1050P/1050eP 1-21...
Page 29: Overview
Overview Overview The print controller feature enables the copier to connect to computers and networks to use as a printer. Copier bizhub PRO 1050/1050e/1050P/1050eP...
Page 30: Printer Driver
The PCL Printer Driver is not corresponding to the 64 bit OS (Windows XP/Server 2003). For the PS Plug-in driver, see User's Guide in the PS Plug-in CD-ROM. For acquisition of the KONICA MINOLTA PS driver for the Windows XP x64/Server 2003 x64, contact your service representative. bizhub PRO 1050/1050e/1050P/1050eP...
Page 31: Composition Of A Product
The print controller is equipped with 512 MB memory by default. 2.2.2 PostScript3 Installing the PostScript3 in the print controller, enables you to can print data from the application on Windows98/Me/NT 4.0/2000/XP/Server 2003 or Mac OS 9/X with your copier as the PostScript3 printer. bizhub PRO 1050/1050e/1050P/1050eP...
Page 32: Other Options
Refer to "Option tab" on Page 8-12, "Device Settings tab" on Page 9-12, "Option tab" on Page 10-14, "Configure dialog box" on Page 11-42 and "Printer Info" on Page 12-35 for more information about installation of op- tions. bizhub PRO 1050/1050e/1050P/1050eP...
Page 33: Connections Of The Print Controller
- Printing in which AppleTalk from Macintosh is used. - IPP (Internet Printing Protocol) printing - Printing in which Novell NetWare is used. Note Refer to “Installation (Network printing)” on page 5-1 for more information about installation of the printer driver. bizhub PRO 1050/1050e/1050P/1050eP...
Page 34: Product Specifications
Overview Product Specifications Type Type: Built-in box type for the KONICA MINOLTA Printer/ Copier Functions Resolution: Printing System: 600 x 600 dpi Scanning resolution: 200 dpi / 300 dpi / 400 dpi / 600 dpi Gradation: binary Printable Area: Standard: Margine 2.5 mm (left, right, top...
Page 35 (IEEE 1284 / amphenol 36 pin female connector) Hard Disk Drive: EIDE drive 40 GB or more Power: Obtain from main body printer Network Interface: Ethernet (100Base-TX / 10Base-T) Operating Environment Temperature: Same as the copier Humidity: Same as the copier bizhub PRO 1050/1050e/1050P/1050eP...
Page 36: Restrictive Conditions
Although the Weekly Timer function of the main body printer is available in the Printer mode, the power is not turned off until the data output is finished when print data remains in the Image memory. Note Specifications are subject to change without notice. bizhub PRO 1050/1050e/1050P/1050eP...
Page 37: Installation (Installer)
Automatic installation (PCL) with installer Install the printer driver with the installer. This installer can be used with any Windows OSs supporting it to install the KONICA MINOLTA PCL driver. Fol- low the procedure below to install the printer driver.
Page 38 – Selection from list detected When a copier is detected on the TCP/IP network, for instance, the driver name (KONICA MINOLTA 1050 PCL) is displayed on the screen as shown below. Then select [Select Printers/MFPs to Install from the List. You can se-...
Page 39 To check the details of the printer driver again. [Rename Printer] To change the printer name. [Share Setting] To share the printer. [Property] To see the property of printer. [Print Setting] To see the printing setup. [Print Test Page] To see the test page. bizhub PRO 1050/1050e/1050P/1050eP...
Page 40: Installation (Local Printing)
Print the test page. This chapter describes how to install the printer driver for local printing to Windows-compliant computers and how to print the test page. Refer to "Installation (Network printing)" on Page 5-1 about network printing. bizhub PRO 1050/1050e/1050P/1050eP...
Page 41: Printer Drivers
Windows 2000 • "Installing to Windows 2000 (PCL/PPD)" on Page 4-12 Windows XP/Server • "Installing to Windows XP/Server 2003 (PCL/PPD)" on 2003 Page 4-17 Windows NT4.0/2000/ • "Installing the KONICA MINOLTA PS Driver" on Page 4-22 XP/2003 bizhub PRO 1050/1050e/1050P/1050eP...
Page 42 To install the PCL/PostScript PPD printer driver to Windows 98/Me, perform the following steps. 0 In case you install the PCL driver, you can check the location of the [.inf] file through the bizhub PRO 1050 Series CD-ROM start-up screen. Turn on the computer and start Windows 98/Me. –...
Page 43 Click [Have Disk]. The [Install From Disk] window ap- pears. Click [Browse]. The [Open] window appears. Set the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” in the CD-ROM drive. Change [Drive] to CD-ROM drive. Select the following file; –...
Page 44 [KONICA MINOLTA 1050 PS(P)] is highlighted. – [KONICA MINOLTA 1050 PCL]/ [KONICA MINOLTA 1050 PS(P)] is the default printer name. Click [Next]. The [Add Printer Wizard] window to assign a port appears. Select the port to which the printing system is connected.
Page 45 Click [Finish]. – Necessary files will be copied from the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” to complete the installation. If you have selected [Yes (recommended)] at step 21, performing of the test print starts.
Page 46 0 In case you install the PCL driver, you can check the location of the [.inf] file through the bizhub PRO 1050 Series CD-ROM start-up screen. Turn on the computer and start Windows NT4.0. Log on as an administrator (or a user entitled to install a printer).
Page 47 Click [Have Disk]. The [Install From Disk] window ap- pears. Click [Browse]. The [Locate File] window appears. Set the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” in the CD-ROM drive. Change [Look in] to CD-ROM drive. Select the following file; –...
Page 48 When you install PPD driver: [KONICA MINOLTA 1050 PS(P)] is highlighted. – [KONICA MINOLTA 1050 PCL]/ [KONICA MINOLTA 1050 PS(P)] is the default printer name. Click [Next]. The [Add Printer Wizard] window appears. In the [Printer name] text box, check the printer name.
Page 49 Click [Finish]. – Necessary files will be copied from the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” to complete the installation. – If you have selected [Yes (recommended)] at step 23, performing of the test print starts.
Page 50 You must delete the current printer driver at first if you want to update/ reinstall the printer driver. Refer to "Deleting the Printer Driver (Windows NT4.0)(PCL/PPD)" on Page 6-5 for the method of deleting the printer driver. bizhub PRO 1050/1050e/1050P/1050eP 4-11...
Page 51 0 In case you install the PCL driver, you can check the location of the [.inf] file through the bizhub PRO 1050 Series CD-ROM start-up screen. Turn on the computer and start Windows 2000. Log on as an administrator (or a user entitled to install a printer).
Page 52 Click [Have Disk]. The [Install From Disk] window ap- pears. Click [Browse]. The [Locate File] window appears. Set the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” in the CD-ROM drive. Change [Look in] to CD-ROM drive. bizhub PRO 1050/1050e/1050P/1050eP 4-13...
Page 53 The [Add Printer Wizard] window to select the manufacturer and model of the printer appears. Confirm the followings in the list of [Printers]. – When you install PCL driver: [KONICA MINOLTA 1050 PCL] is highlighted. – When you install PPD driver: [KONICA MINOLTA 1050 PS(P)] is highlighted.
Page 54 If you have selected [Share as] at step 22, enter the location of the shared printer and comment in the [Location] and [Comment] textboxes. Click [Next]. The [Add Printer Wizard] window to perform the test print will appear. bizhub PRO 1050/1050e/1050P/1050eP 4-15...
Page 55 You must delete the current printer driver at first if you want to update/ reinstall the printer driver. Refer to "Deleting the Printer Driver (Windows 2000)(PCL/PPD)" on Page 6-6 for the method of deleting the printer driver. bizhub PRO 1050/1050e/1050P/1050eP 4-16...
Page 56 XP/Server 2003). 0 In case you install the PCL driver, you can check the location of the [.inf] file through the bizhub PRO 1050 Series CD-ROM start-up screen. Turn on the computer and start Windows XP/Server 2003. Log on as an administrator (or a user entitled to install a printer).
Page 57 LPR port. For details, refer to "Installing to Windows 2000/XP/Server 2003(PCL/PPD)" on Page 5-13. Click [Next]. The window to select the printer manufacturer and model appears. Click [Have Disk]. The [Install From Disk] window ap- pears. bizhub PRO 1050/1050e/1050P/1050eP 4-18...
Page 58 Installation (Local printing) Click [Browse]. The [Locate File] window appears. Set the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” in the CD-ROM drive. Change [Look in] to CD-ROM drive. Select the following file; – When you install PCL driver: [KMRG602.inf] file in the “\Driver\Driv-...
Page 59 If you have selected [Share name:] at step 22, the window to enter location and comment appears. In this case, go to step 24. If you have selected [Share name:] at step 22, enter the location of the shared printer and comment in the [Location] and [Comment] textbox- bizhub PRO 1050/1050e/1050P/1050eP 4-20...
Page 60 You must delete the current printer driver at first if you want to update/ reinstall the printer driver. Refer to "Deleting the Printer Driver (Windows XP/Server 2003)(PCL/ PPD)" on Page 6-7 for the method of deleting the printer driver. bizhub PRO 1050/1050e/1050P/1050eP 4-21...
Page 61 Installation (Local printing) Installing the KONICA MINOLTA PS Driver KONICA MINOLTA PS Driver is to be installed from [Setup.exe] of the PS- 502 CD-ROM. To install the KONICA MINOLTA PS printer driver to Windows, perform the following steps. The installation should be performed by a qualified system administrator or printer administrator.
Page 62 [Yes] or [No]. – If you want to share the printer on the network, refer to "Installing the KONICA MINOLTA PS Driver" on Page 5-17. Click [Next]. Select the port to which the PS print- ing system is connected, and click [Next].
Page 63 If you want to manually configure the printer, click [Document Defaults] or [Printer Properties]. – For more information, refer to "KONICA MINOLTA PS Printer Driver setting (Windows)" on Page 10-1. Click [Exit to Windows]. The installation session is over and you go back to the desktop.
Page 64: Test
[Properties] window. The property window of the printer driver you have selected is dis- played. The explanation here is given by using the [KONICA MINOLTA 1050 PCL Properties] window. Select [General] tab and click [Print Test Page].
Page 65: Installation (Network Printing)
Windows-compliant computers and Macintosh and how to print the test page. Refer to "Installation (Local printing)" on Page 4-1 about local printing. This chapter also describes the outline of the network configuration. Refer to the Copier’s manual about the network configuration of the copier. bizhub PRO 1050/1050e/1050P/1050eP...
Page 66: Printer Drivers
Windows 2000/XP/Serv- • "Installing to Windows 2000/XP/Server 2003(PCL/PPD)" on er 2003 Page 5-13 Windows NT4.0/2000/ • "Installing the KONICA MINOLTA PS Driver" on Page 5-17 XP/Server 2003 Macintosh Printer Driver Mac OS 9 • "Installing to Macintosh (Mac OS 9)" on Page 5-20 Mac OS X •...
Page 67 To install the PCL/PostScript PPD printer driver to Windows 98/Me, perform the following steps. 0 In case you install the PCL driver, you can check the location of the [.inf] file through the bizhub PRO 1050 Series CD-ROM start-up screen. Turn on the computer and start Windows 98/Me. –...
Page 68 In this case, go to step 21. Click [Have Disk]. The [Install From Disk] window ap- pears. Click [Browse]. The [Open] window appears. Set the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” in the CD-ROM drive. Change [Drive] to CD-ROM drive. bizhub PRO 1050/1050e/1050P/1050eP...
Page 69 When you install PPD driver: [KONICA MINOLTA 1050 PS(P)] is highlighted. – [KONICA MINOLTA 1050 PCL]/ [KONICA MINOLTA 1050 PS(P)] is the default printer name. Click [Next]. – The [Add Printer Wizard] window to specify the printer name ap- pears.
Page 70 Click [Finish]. – Necessary files will be copied from the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” to complete the installation. If you have selected [Yes (recommended)] at step 22, performing of the test print starts.
Page 71 0 In case you install the PCL driver, you can check the location of the [.inf] file through the bizhub PRO 1050 Series CD-ROM start-up screen. Turn on the computer and start Windows NT4.0. Log on as an administrator (or a user entitled to install a printer).
Page 72 Click [Finish]. – Necessary files will be copied from the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” to complete the installation. – If you have selected [Yes (recommended)] at step 11, performing of the test print starts.
Page 73 If you have selected [No] at step 11, the test page will not be print- – If the test page is printed properly, click [Yes]. The installation is completed. The printer driver of the printing system becomes available without re- starting your computer. bizhub PRO 1050/1050e/1050P/1050eP...
Page 74 Click [Have Disk]. The [Install From Disk] window appears. Click [Browse]. The [Locate File] window appears. Set the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” in the CD-ROM drive. Change [Look in] to CD-ROM drive. Select the following file;...
Page 75 Click [Finish]. – Necessary files will be copied from the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” to complete the installation. – If you have selected [Yes (recommended)] at step 13, performing of the test print starts.
Page 76 You must delete the current printer driver at first if you want to update/ reinstall the printer driver. Refer to "Deleting the Printer Driver (Windows NT4.0)(PCL/PPD)" on Page 6-5 for the method of deleting the printer driver. bizhub PRO 1050/1050e/1050P/1050eP 5-12...
Page 77 0 In case you install the PCL driver, you can check the location of the [.inf] file through the bizhub PRO 1050 Series CD-ROM start-up screen. Turn on the computer and start Windows 2000/XP/Server 2003.
Page 78 Select whether to use this printer as the default printer or not by select- ing [Yes] or [No]. Click [Finish]. The installation is completed. The printer driver of the printing system becomes available without re- starting your computer. bizhub PRO 1050/1050e/1050P/1050eP 5-14...
Page 79 Click [Have Disk]. The [Install From Disk] window ap- pears. Click [Browse]. The [Locate File] window appears. Set the “bizhub PRO 1050 Series CD-ROM or PS-502 CD-ROM” in the CD-ROM drive. Change [Look in] to CD-ROM drive. Select the following file; –...
Page 80 Installation (Network printing) Confirm the followings in the list of [Printers]. – When you install PCL driver: [KONICA MINOLTA 1050 PCL] is highlighted. – When you install PPD driver: [KONICA MINOLTA 1050 PS(P)] is highlighted. – [KONICA MINOLTA 1050 PCL]/ [KONICA MINOLTA 1050 PS(P)] is the default printer name.
Page 81 Installation (Network printing) Installing the KONICA MINOLTA PS Driver KONICA MINOLTA PS Driver is to be installed from [Setup.exe] of the PS- 502 CD-ROM. To install the KONICA MINOLTA PS printer driver to Windows, perform the following steps. The installation should be performed by a qualified system administrator or printer administrator.
Page 82 If you share it, select [Yes]. – If you do not share the printer on the network, refer to "Installing the KONICA MINOLTA PS Driver" on Page 4-22. Click [Next]. Click [Add Network Port] to select the network printer you want to add.
Page 83 If you want to manually configure the printer, click [Document Defaults] or [Printer Properties]. – For more information, refer to "KONICA MINOLTA PS Printer Driver setting (Windows)" on Page 10-1. Click [Exit to Windows]. The installation session is over and you go back to the desktop.
Page 84 PS3 printing system. Click [Accept] and go to the next step. The [AdobePS Installer] dialog box appears. Click [Install]. The installation starts. When the installation is completed, the following message appears. bizhub PRO 1050/1050e/1050P/1050eP 5-20...
Page 85 Installation (Network printing) Click [Restart]. – Then, go to "Selecting the printer with the Chooser". bizhub PRO 1050/1050e/1050P/1050eP 5-21...
Page 86 You must delete the current printer driver at first if you want to update/ reinstall the printer driver. Refer to "Deleting the Printer Driver (Mac OS 9)(PPD)" on Page 6-8 for the method of deleting the printer driver. bizhub PRO 1050/1050e/1050P/1050eP 5-22...
Page 87 Double-click on “KONICAMINOLTA_1050_xxx.pkg”. – When using the Mac OS X v10.2x, enter the name and password of the administrator. A message is indicated asking whether or not to execute the install- er. Click [Continue]. Click [Continue]. bizhub PRO 1050/1050e/1050P/1050eP 5-23...
Page 88 “Easy Install” window appears. Click [Install]. – When using the Mac OS X (v10.3x/v10.4x), enter the name and password of the administra- tor. – When reinstallation is carried out, the indication [Install] may be changed to [Upgrade]. bizhub PRO 1050/1050e/1050P/1050eP 5-24...
Page 89 You must delete the current printer driver at first if you want to update/ reinstall the printer driver. Refer to "Deleting the Printer Driver (Mac OS X)(PPD)" on Page 6-9 for the method of deleting the printer driver. bizhub PRO 1050/1050e/1050P/1050eP 5-25...
Page 90 From installed [HDD]-[Applica- tions]-[Utilities], double-click on [Print Center]. Click [Add]. – If the applicable printer is set, the illustration of 2 is not dis- played. Select the corresponding printer name. Click [Printer Model] and select [KONICA MINOLTA]. bizhub PRO 1050/1050e/1050P/1050eP 5-26...
Page 91 Installation (Network printing) Select the [KONICA MINOLTA 1050 PS (P)] and then click [Add]. – If you choose [IP Printing] as a connection method of the print- er, you need to input the IP ad- dress of the printer. The selected printer is registered to [Printer List].
Page 92 Max OS X v10.3 screens are indicated here will be listed. for description. Select the corresponding printer, and select [KONICA MINOLTA] from [Printer Model] (v10.4x is shown as [Printer Using].). Select [KONICA MINOLTA 1050 PS (P)] from the list, and click [Add]. bizhub PRO 1050/1050e/1050P/1050eP 5-28...
Page 93 Click the printer name and from menu - [Printers], select [Show Info]. [Printer Info] window will be dis- played. Select [Installable Options]. Setup the options that are equipped to copier. Click [Apply Changes]. Close [Print Info] window. bizhub PRO 1050/1050e/1050P/1050eP 5-29...
Page 94: Test
[Properties] window. The property window of the printer driver you have selected is dis- played. The explanation here is given by using the [KONICA MINOLTA 1050 PCL Properties] window. Select [General] tab and click [Print Test Page].
Page 95: Uninstallation Of The Printer Driver
Deletion of printer driver with installer (PCL) Delete the printer driver with the installer. The printer driver which can be de- leted with the installer is “KONICA MINOLTA PCL” only. Follow the proce- dure below for deletion. Insert the “bizhub PRO 1050 Series CD-ROM” into the CD-ROM tray of the personal computer.
Page 96 [Unin- stall]. Upon completion of deletion of the printer driver, you are prompted to restart the computer. Click [OK] to start again. Deletion of the printer driver with the installer is now completed. bizhub PRO 1050/1050e/1050P/1050eP...
Page 97: Deletion Of Printer Driver By Manual Operation
2003)(PCL/PPD)" on Page 6-7 Macintosh Deleting a Printer Driver Mac OS 9 • "Deleting the Printer Driver (Mac OS 9)(PPD)" on Page 6-8 Mac OS X • "Deleting the Printer Driver (Mac OS X)(PPD)" on Page 6-9 bizhub PRO 1050/1050e/1050P/1050eP...
Page 98 If the printer has been set as the default printer, the message saying the default printer is deleted appears after the deletion. The printer driver is uninstalled. When updating the printer driver, go to "Installing to Windows 98/Me (PCL/PPD)" on Page 4-3. bizhub PRO 1050/1050e/1050P/1050eP...
Page 99 [Printers] window. Restart the computer. To avoid the system failure, make sure to restart the computer after de- leting the printer driver. When updating the printer driver, go to "Installing to Windows NT4.0 (PCL/PPD)" on Page 4-7. bizhub PRO 1050/1050e/1050P/1050eP...
Page 100 The printer driver is deleted (uninstalled). Restart the computer. – To avoid the system failure, make sure to restart the computer after deleting the printer driver. When updating the printer driver, go to "Installing to Windows 2000 (PCL/PPD)" on Page 4-12. bizhub PRO 1050/1050e/1050P/1050eP...
Page 101 Restart the computer. – To avoid the system failure, make sure to restart the computer after deleting the printer driver. When updating the printer driver, go to "Installing to Windows XP/Serv- er 2003 (PCL/PPD)" on Page 4-17. bizhub PRO 1050/1050e/1050P/1050eP...
Page 102 When updating the printer driver, go to "Installing to Macintosh (Mac OS 9)" on Page 5-20. Note The files for the old driver may be left if you have problems updating the driver. If such cases, delete them all. bizhub PRO 1050/1050e/1050P/1050eP...
Page 103 Drag the following files in the “Library” — “Printers” — “KONICA MINOLTA”— “Filter” to “Trash”. – pstokm1050 – Drag the following files in the “Library” — “Printers” — “KONICA MINOLTA” — “PDEs” to “Trash”. – KONICAMINOLTA1050 Finishing.plugin – KONICAMINOLTA1050 ImageLayout.plugin – KONICAMINOLTA1050 Security.plugin – KONICAMINOLTA1050 Setup.plugin bizhub PRO 1050/1050e/1050P/1050eP...
Page 104 Restart the Macintosh computer. This completes the uninstallation procedure. Note Delete the old driver without fail before updating the driver software. If any old driver file is left, some malfunction may occur in updating the driv- bizhub PRO 1050/1050e/1050P/1050eP 6-10...
Page 105: Basic Printing And Various Function
The [Print] dialog appears. Select printer in pull down menu besides the [Name]. Click [Properties] to set detail if nec- essary. Click [OK] if a required setup is finished. The display returns to the [Print] dialog. bizhub PRO 1050/1050e/1050P/1050eP...
Page 106 The print controller receives and processes a print job sent from your computer. Note Refer to "PCL Printer Driver Setting (Windows)" on Page 8-1, "PostScript PPD Printer Driver setting (Windows)" on Page 9-1 for more information about print setup. bizhub PRO 1050/1050e/1050P/1050eP...
Page 107 Make sure that compliant printer name is selected in the [Printer]. – Refer to "PostScript PPD Printer Driver setting (Mac OS 9)" on Page 11-1 for more information about print setup. Click [Print]. The print controller receives and processes a print job sent from your computer. bizhub PRO 1050/1050e/1050P/1050eP...
Page 108 [Printer]. – Refer to "PostScript PPD Printer Driver setting (Mac OS X)" on Page 12-1 for more information about print setup. Click [Print]. The print controller receives and processes a print job sent from your computer. bizhub PRO 1050/1050e/1050P/1050eP...
Page 109: Various Function
"Layout tab" on Page 9-16 KONICA MINOLTA "Setup tab" on Page 10-16 Mac OS 9 PostScript PPD "Page Attributes dialog box" on Page 11-10 Mac OS X PostScript PPD "Page Attributes (Page Setup window)" on Page 12-3 ABCD ABCDEF Portrait Landscape bizhub PRO 1050/1050e/1050P/1050eP...
Page 110 "Paper/Quality tab" on Page 9-18 KONICA MINOLTA "Setup tab" on Page 10-16 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (1)" on Page 11-22 Mac OS X PostScript PPD "Setup (Print window)" on Page 12-21 bizhub PRO 1050/1050e/1050P/1050eP...
Page 111 "Advanced Options windows" on Page 9- KONICA MINOLTA "Setup tab" on Page 10-16 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Setup (Print window)" on Page 12-21 bizhub PRO 1050/1050e/1050P/1050eP...
Page 112 "Setup tab" on Page 10-16 Mac OS 9 PostScript PPD "Page Attributes dialog box" on Page 11-10 Mac OS X PostScript PPD "Page Attributes (Page Setup window)" on Page 12-3 Enlargement ABCD ABCD ABCD ABCD Document Reduction bizhub PRO 1050/1050e/1050P/1050eP...
Page 113 You can set the margins of output paper. Operating System Printer Driver Refer to Mac OS 9 PostScript PPD "Custom Page Default dialog box" on Page 11-15 Mac OS X PostScript PPD "Custom Paper Size (Page Setup window)" on Page 12-5 Margin bizhub PRO 1050/1050e/1050P/1050eP...
Page 114: To Set The Paper Tray
PostScript PPD "Device Settings tab" on Page 9-12 KONICA MINOLTA "Option tab" on Page 10-14 Mac OS 9 PostScript PPD "Configure dialog box" on Page 11-42 Mac OS X PostScript PPD "Printer Info" on Page 12-35 PF-701 bizhub PRO 1050/1050e/1050P/1050eP 7-10...
Page 115 PostScript PPD "Device Settings tab" on Page 9-12 KONICA MINOLTA "Option tab" on Page 10-14 Mac OS 9 PostScript PPD "Configure dialog box" on Page 11-42 Mac OS X PostScript PPD "Printer Info" on Page 12-35 Finisher bizhub PRO 1050/1050e/1050P/1050eP 7-11...
Page 116 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Finishing (Print window)" on Page 12-11 Note The position of the output tray varies depending on the optional unit. bizhub PRO 1050/1050e/1050P/1050eP 7-12...
Page 117 PostScript PPD "Device Settings tab" on Page 9-12 KONICA MINOLTA "Option tab" on Page 10-14 Mac OS 9 PostScript PPD "Configure dialog box" on Page 11-42 Mac OS X PostScript PPD "Printer Info" on Page 12-35 bizhub PRO 1050/1050e/1050P/1050eP 7-13...
Page 118: To Print Multiple Copies
"Setup tab" on Page 10-16 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Copies & Pages (Print window)" on Page 12-7 ABCD ABCD ABCD ABCD ABCD ABCD bizhub PRO 1050/1050e/1050P/1050eP 7-14...
Page 119 "Setup tab" on Page 10-16 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Copies & Pages (Print window)" on Page 12-7 ABCD ABCD ABCD ABCD ABCD ABCD bizhub PRO 1050/1050e/1050P/1050eP 7-15...
Page 120 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Finishing (Print window)" on Page 12-11 ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD Offset Copies bizhub PRO 1050/1050e/1050P/1050eP 7-16...
Page 121 KONICA MINOLTA "Special Functions" on Page 10-44 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Finishing (Print window)" on Page 12-11 Sub copier Master copier bizhub PRO 1050/1050e/1050P/1050eP 7-17...
Page 122: To Print Multiple
PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Finishing (Print window)" on Page 12-11 Double Sides / Double Sides / Double Sides / Left Binding Top Binding Right Binding bizhub PRO 1050/1050e/1050P/1050eP 7-18...
Page 123 Mac OS X PostScript PPD "Layout (Print window)" on Page 12-8 2 in 1 4 in 1 6 in 1 8 in 1 9 in 1 16 in 1 9 10 11 13 14 15 16 bizhub PRO 1050/1050e/1050P/1050eP 7-19...
Page 124 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Image/Layout (Print window)" on Page 12- 2-in-1 2-in-1 Repeat 2 Repeat Reversal ABCD ABCD ABCD ABCD ABCD bizhub PRO 1050/1050e/1050P/1050eP 7-20...
Page 125 Prints a specific page so that it comes on the front, especially when printing on both sides of the paper. Operating System Printer Driver Refer to Windows KONICA MINOLTA "Per Page Setting tab" on Page 8-33 KONICA MINOLTA "Per Page Setting" on Page 10-38 1'st page of a chapter bizhub PRO 1050/1050e/1050P/1050eP 7-21...
Page 126 "Finishing (Print window)" on Page 12-11 Face down Face up Not To print blank page: Selects not to print out blank pages in the document. Operating System Printer Driver Refer to Windows KONICA MINOLTA "Setup tab" on Page 8-14 bizhub PRO 1050/1050e/1050P/1050eP 7-22...
Page 127: To Set The Front / Back Cover, Insertion Sheet And Cover Sheet
"Setup (Print window)" on Page 12-21 ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD Front Cover - Off Front Cover Front Cover - Blank - Printed bizhub PRO 1050/1050e/1050P/1050eP 7-23...
Page 128 "Per Page Setting" on Page 10-38 ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD Insertion Insertion sheet - Blank sheet - Printed bizhub PRO 1050/1050e/1050P/1050eP 7-24...
Page 129 Sets to print tab paper. You can set the text, tab position, and number of tabs. Operating System Printer Driver Refer to Windows KONICA MINOLTA "Per Page Setting tab" on Page 8-33 KONICA MINOLTA "Per Page Setting" on Page 10-38 bizhub PRO 1050/1050e/1050P/1050eP 7-25...
Page 130: To Set For Finishing
"Advanced Options windows" on Page 9- KONICA MINOLTA "Setup tab" on Page 10-16 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Finishing (Print window)" on Page 12-11 ABCD ABCDEF bizhub PRO 1050/1050e/1050P/1050eP 7-26...
Page 131 "Advanced Options windows" on Page 9- KONICA MINOLTA "Setup tab" on Page 10-16 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Finishing (Print window)" on Page 12-11 ABCD ABCDEF bizhub PRO 1050/1050e/1050P/1050eP 7-27...
Page 132 "Advanced Options windows" on Page 9- KONICA MINOLTA "Special Functions" on Page 10-44 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Image/Layout (Print window)" on Page 12- bizhub PRO 1050/1050e/1050P/1050eP 7-28...
Page 133 "Advanced Options windows" on Page 9- KONICA MINOLTA "Special Functions" on Page 10-44 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Finishing (Print window)" on Page 12-11 bizhub PRO 1050/1050e/1050P/1050eP 7-29...
Page 134 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Setup (Print window)" on Page 12-21 Cover Blank Cover Print 1in1 Cover Print 2in1 Cover Print 3in1 bizhub PRO 1050/1050e/1050P/1050eP 7-30...
Page 135: To Set A Watermark
Sets a overlay and print it on the output paper. Operating System Printer Driver Refer to Windows KONICA MINOLTA "Overlay tab" on Page 8-51 KONICA MINOLTA "Overlay tab" on Page 10-61 Mac OS 9 PostScript PPD "Watermark dialog box" on Page 11-13 ABCD bizhub PRO 1050/1050e/1050P/1050eP 7-31...
Page 136 Operating System Printer Driver Refer to Windows KONICA MINOLTA "Watermark tab" on Page 8-54 KONICA MINOLTA "Watermarks tab" on Page 10-66 Mac OS 9 PostScript PPD "Watermark dialog box" on Page 11-13 ABCD ABCD CONFID ENTIAL bizhub PRO 1050/1050e/1050P/1050eP 7-32...
Page 137 "Special Functions" on Page 10-44 To set numbering: Prints the copy number to the printed page. Operating System Printer Driver Refer to Windows KONICA MINOLTA "Watermark tab" on Page 8-54 KONICA MINOLTA "Special Functions" on Page 10-44 bizhub PRO 1050/1050e/1050P/1050eP 7-33...
Page 138: To Set An Image And Shade
"Advanced Options windows" on Page 9- KONICA MINOLTA "Quality tab" on Page 10-64 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Image/Layout (Print window)" on Page 12- bizhub PRO 1050/1050e/1050P/1050eP 7-34...
Page 139 "Advanced Options windows" on Page 9- KONICA MINOLTA "Quality tab" on Page 10-64 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Image/Layout (Print window)" on Page 12- Standard Light bizhub PRO 1050/1050e/1050P/1050eP 7-35...
Page 140 "Quality tab" on Page 10-64 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Image/Layout (Print window)" on Page 12- Normal Toner Save Draft ABCD ABCD ABCD bizhub PRO 1050/1050e/1050P/1050eP 7-36...
Page 141 "Advanced Options windows" on Page 9- KONICA MINOLTA "Quality tab" on Page 10-64 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Image/Layout (Print window)" on Page 12- Smoothing bizhub PRO 1050/1050e/1050P/1050eP 7-37...
Page 142: To Set Font-Related Items
To set the format of the font that is to be downloaded (Download Font Format): Selects the font format to be downloaded to the printer (Outline or BMP). Operating System Printer Driver Refer to Windows KONICA MINOLTA "Font tab" on Page 8-60 bizhub PRO 1050/1050e/1050P/1050eP 7-38...
Page 143: 7.2.10 Checking The Printer Driver Setting
"Advanced Options windows" on Page 9- KONICA MINOLTA "Setup tab" on Page 10-16 Mac OS 9 PostScript PPD "Printer Specific Options dialog box (2)" on Page 11-24 Mac OS X PostScript PPD "Security (Print window)" on Page 12-30 bizhub PRO 1050/1050e/1050P/1050eP 7-39...
Page 144 To check the version of the printer driver: Checks the printer driver version from the [Properties] window, when this printing system is used. Operating System Printer Driver Refer to Windows KONICA MINOLTA "Version tab" on Page 8-62 bizhub PRO 1050/1050e/1050P/1050eP 7-40...
Page 145: 7.2.11 How To Store The Job And Reprint
Operating System Printer Driver Refer to Windows PostScript PPD "Device Settings tab" on Page 9-12 Mac OS 9 PostScript PPD "Configure dialog box" on Page 11-42 Mac OS X PostScript PPD "Printer Info" on Page 12-35 bizhub PRO 1050/1050e/1050P/1050eP 7-41...
Page 146: Pcl Printer Driver Setting (Windows)
Select [Start]-[Settings]-[Printers] to open the [Printers] folder, right-click the printer icon and select [Printing Preference] Windows XP/Server Select [Start]-[Printers and Faxes] to open the [Printers and 2003 Faxes] folder, right-click the printer icon and select [Printing Preference]. bizhub PRO 1050/1050e/1050P/1050eP...
Page 147: Properties Window
In this case, the settings are effective only when the application is in use. Note This chapter is described by using the printer window of Windows XP. The properties window may differ from the window displayed by the printing command of applications. bizhub PRO 1050/1050e/1050P/1050eP...
Page 148: About Button
Help When the [Help] is clicked, Help information appears. As well, when you click [Help] which appears when right-clicking a desired item, pop-up help for the item appears. bizhub PRO 1050/1050e/1050P/1050eP...
Page 149: Combination Of The Function
This is a confirmation message to decide which setting will be turned off. When this message is displayed, select [Yes] or [No]. In case of [Yes], the conflict setting will be turned OFF. bizhub PRO 1050/1050e/1050P/1050eP...
Page 150: General Tab
Print Test Page Prints a test page of Windows. You can print a test page without using any application. Note For more information, refer to the manual of the Windows. bizhub PRO 1050/1050e/1050P/1050eP...
Page 151: Sharing Tab
"About Properties window" on Page 8-1 about how to open the Property window. By using this [Sharing] tab, you can make the printer available to network us- ers. Note For more information, refer to the manual of the Windows. bizhub PRO 1050/1050e/1050P/1050eP...
Page 152: Ports Tab
Using this button enables you to configure the selected port from above list. Enable bidirectional support Gets the status information from the print device. Enable printer pooling Enables printing to two or more identical print devices by using one logical printer. bizhub PRO 1050/1050e/1050P/1050eP...
Page 153 PCL Printer Driver Setting (Windows) Note For more information, refer to the manual of the Windows. bizhub PRO 1050/1050e/1050P/1050eP...
Page 154: Advanced Tab
Displays the installed printer driver name. New Driver Clicks to install a new or updated printer driver. Spool print documents so program finishes printing faster Sets to spool the documents before printing. Print directly to the printer Sets to print without spooling. bizhub PRO 1050/1050e/1050P/1050eP...
Page 155 Sets to print the spooled document irrespective of a priority settings. Keep printed documents Sets to hold the spooled data of the documents after printing. Enable advanced printing features Enables the advanced printing features. Note For more information, refer to the manual of the Windows. bizhub PRO 1050/1050e/1050P/1050eP 8-10...
Page 156: Color Management Tab
Performs settings related to color management. Detail The method to open the Properties window depends on OS. Refer to "About Properties window" on Page 8-1 about how to open the Property window. It is not used in this printing system. bizhub PRO 1050/1050e/1050P/1050eP 8-11...
Page 157: Option Tab
Selects an installed Multi Folder. Option - Saddle-Stitcher Selects an installed Saddle Stitcher. Option - Stacker Selects an installed Stacker. Option - Stapler Selects an installed Stapler. Option - Perfect Binder Selects an installed Perfect Binder. bizhub PRO 1050/1050e/1050P/1050eP 8-12...
Page 158 Option Information - Printer Name or IP Address Inputs the printer name for the printer or its IP address. Option Information - Gather Option Information Obtains option information for the printer automatically. Enhanced Security Selects to use the enhanced security mode. bizhub PRO 1050/1050e/1050P/1050eP 8-13...
Page 159: Setup Tab
Document size that can be selected 12” x 18” 11” x 17” 8 1/2” x 14” 8 1/2” x 11” 5 1/2” x 8 1/2” 297 x 420 mm 210 x 297 mm 148 x 210 mm 257 x 364 mm bizhub PRO 1050/1050e/1050P/1050eP 8-14...
Page 160 You can select a paper size from the list shown by clicking [▼]. Output size that can be selected Same as Original Size 12” x 18” 11” x 17” 8 1/2” x 14” 8 1/2” x 11” bizhub PRO 1050/1050e/1050P/1050eP 8-15...
Page 161 5 1/2” x 8 1/2” W A3 W A4 W A5 W B4 W B5 W Custom Size Settings Print Position Settings 9” x 12” (Booklet only) 7” x 8 1/2” (Booklet only) The default is the Same as original size. bizhub PRO 1050/1050e/1050P/1050eP 8-16...
Page 162 Set the width of the selected custom size in the list (132-324 mm). Size-Length Set the length of the selected custom size in the list for the current tray (150-460 mm). Size-Unit Select the units for setting [Width] and [Length]. bizhub PRO 1050/1050e/1050P/1050eP 8-17...
Page 163 / A4 Tab / 12” x 18” W / 11” x 17” W / 8 1/2” x 11” W / 5 1/2” x 8 1/2” W / A3 W / A4 W / A5 W / B4 W / B5 W / Custom Size Settings bizhub PRO 1050/1050e/1050P/1050eP 8-18...
Page 164 When [Paper Type Settings] is pressed, the [Paper Type Settings] dialog ap- pears. Paper Type Settings - Edit Paper Type When selecting the paper source from the list and [Edit Paper Type] is pressed, the [Edit Paper Type] dialog appears. bizhub PRO 1050/1050e/1050P/1050eP 8-19...
Page 165 Paper Type Settings - Edit Paper Type - Paper Color Sets various colors of paper as the output paper as shown below - No Setting - White - Clear - Yellow - Pink - Blue - Green bizhub PRO 1050/1050e/1050P/1050eP 8-20...
Page 166 Uses to select the paper tray for Transparency Interleave. Binding - Binding Position Sets the binding position for the document to be printed. The position select- ed here will be the position of stapling, punching and base position of the im- age shift. bizhub PRO 1050/1050e/1050P/1050eP 8-21...
Page 167 Binding - Combination - Details When selects the [Details] from the list of the [Combination], [Combination Details] dialog appears. Combination Selects the number of pages to be printed onto a single sheet. Order Selects the printing order of pages. bizhub PRO 1050/1050e/1050P/1050eP 8-22...
Page 168 Selects to use the same margin for the front and back sides. Back Sides Shift Mode Selects the shift mode. [Parallel Shift] shifts the image parallel. [Auto Reduction] shifts the image parallel and reduce an image to attain a hole print image printed. bizhub PRO 1050/1050e/1050P/1050eP 8-23...
Page 169 - When [Stapler] is not available in [Option] tab. - When [Default] or [Stapler Main Tray] is not selected in [Setup] tab - [Out- put Tray]. - When [Booklet] is selected in [Setup] tab - [Print Type]. bizhub PRO 1050/1050e/1050P/1050eP 8-24...
Page 170 - When [Saddle-Stitcher] is not available in [Option] tab. - When [Fold] is selected in [Special Functions] tab. - When [Booklet] is not selected in [Setup] tab - [Print Type]. Output - Output Method - Print Sets the normal printing. bizhub PRO 1050/1050e/1050P/1050eP 8-25...
Page 171 Secure Print ID: Enter the Secure box name. – Password: Enter the password. Click [OK]. Click [OK] to close the [Printing Preferences] window. Click [Print] to perform printing from the application. Select [RECALL] tab on the control panel of the copier. bizhub PRO 1050/1050e/1050P/1050eP 8-26...
Page 172 Designate the number of sheets or the page to be output and press the [OK]. Confidential file is printed. Detail To confirm the settings for Secure Output, select [Wait Output] or [Proof Output], and press [OK]. For more information, refer to “User’s Guide (Network Scanner)”. bizhub PRO 1050/1050e/1050P/1050eP 8-27...
Page 173 Selecting [Save in User Box and Print] stores the print job on the in- ternal hard disk and prints one copy. Enter [File Name] and [User Box Number] and click [OK]. Click [OK] to close the [Printing Preferences] window. Click [Print] to perform printing from the application. bizhub PRO 1050/1050e/1050P/1050eP 8-28...
Page 174 When [Proof and Print] is selected, only one set is printed and it stops. – When the Mode Check screen is not displayed, press [MACHINE] tab. On the copier's control panel, the Mode Check screen appears. bizhub PRO 1050/1050e/1050P/1050eP 8-29...
Page 175 - An item other than [Default] need to be selected on the [Option] tab, re- spectively. - [Default] can be set when no option is selected in the [Option] tab. - When [Staple] is available in [Setup] tab, items other than [Default] and [Stapler Main Tray] cannot be set. bizhub PRO 1050/1050e/1050P/1050eP 8-30...
Page 176 - [Combination] is available in [Setup] or [Special Functions] tab. Output - User Authentication/Account Track Sets the User Authentication/Account Track. Detail Contact your administrator about User Authentication/Account Track. When the [User Authentication/Account Track] is clicked, the [User Authen- tication/Account Track] dialog appears. bizhub PRO 1050/1050e/1050P/1050eP 8-31...
Page 177 Account Track Select to use the Account Track mode. Department Name Enter the Department Name. Password Enter the password. Detail Refer to the “User’s Guide (Copier)” for more information about User Au- thentication and Account Track. bizhub PRO 1050/1050e/1050P/1050eP 8-32...
Page 178: Per Page Setting Tab
ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD Front Cover - Off Front Cover Front Cover - Blank - Printed bizhub PRO 1050/1050e/1050P/1050eP 8-33...
Page 179 And it is also possible to insert up to 20 PI Front Covers and PI Back Covers respectively. The [PI Cover Sheet] cannot be set in the following cases: - When the [Multi Folder] is not selected in the [Option] tab. bizhub PRO 1050/1050e/1050P/1050eP 8-34...
Page 180: Per Page Setting
Sets the specified pages to change [Print Type], [Paper Source], [Staple] and/or [Hole-Punch] settings and to use Tab Paper. Per Page Setting - List Name Each Per Page Setting can be saved as a list. Selects the list name from the list. bizhub PRO 1050/1050e/1050P/1050eP 8-35...
Page 181 When click this button, the [Hole-Punch Settings] dialog appears. - Hole-Punch: Sets the number of holes to be punched. Per Page Setting - Add Add Per Page Setting. When click this button, the [Per Page Setting] dialog appears. bizhub PRO 1050/1050e/1050P/1050eP 8-36...
Page 182 Set the orientation and position of the tab text. Font Settings Set the font, font style and size of the tab text. Tab Position Selects the tab position. Detail In [Page Number], up to 26 Page Numbers can be set. bizhub PRO 1050/1050e/1050P/1050eP 8-37...
Page 183 Position Adjustment - Space Be- Set the top space under the last tab. Position Adjustment - Gap Set the space between each tab. Position Adjustment - Text Posi- Set the text position in each tab. tion bizhub PRO 1050/1050e/1050P/1050eP 8-38...
Page 184: Special Functions Tab
Configures the special functions of the print controller. Detail The method to open the Printing Preference window depends on OS. Re- fer to "About Properties window" on Page 8-1 about how to open the Printing Preference window. bizhub PRO 1050/1050e/1050P/1050eP 8-39...
Page 185 ABCD ABCD [Combination (No Reduction)] cannot be set in the following cases: - When the [Chapter] is available in the [Per Page Setting] tab - When the [Skip Blank Pages] is selected in the [Setup] tab bizhub PRO 1050/1050e/1050P/1050eP 8-40...
Page 186 Double Parallel Fold Out Gate Fold In Gate Fold Out Multi-Letter Fold In Multi-Letter Fold Out Multi-Half Fold The [Fold] cannot be set in the following cases: - When the [Chapter] is available in the [Per Page Setting] tab bizhub PRO 1050/1050e/1050P/1050eP 8-41...
Page 187 - When an item other than [Multi-Half Fold] is selected in [Special Func- tions] tab - [Fold]. However, the setting of [Center Staple and Fold] in the [Setup] tab is available. Special Functions - Image Shift Adjusts the details of the printing position to the output paper. bizhub PRO 1050/1050e/1050P/1050eP 8-42...
Page 188 Setting the Pile Permission to OFF allows no pile on the stacker. When a job the pile of which is not permitted is on the stacker, no pile is made even if a pile permission is granted. bizhub PRO 1050/1050e/1050P/1050eP 8-43...
Page 189 Refer to the “User’s Guide (POD Administrator’s Reference)” for more in- formation about Tandem Mode. Sub copier Master copier Tandem Mode cannot be set in the following cases: - When [Transparency Interleave] is selected in [Setup] tab. bizhub PRO 1050/1050e/1050P/1050eP 8-44...
Page 190 Binding], see p. 8-21. - [Left Binding] is specified as a default. The Paper Size, the Paper Type and the Paper Weight that can be used for [Perfect Binding] are as shown in the table below. bizhub PRO 1050/1050e/1050P/1050eP 8-45...
Page 191: Special Functions
0 The number of sheets in the body of documents that is bound is 10 to 300. Open the document you want to print, and then select [Print] from [File] menu in an application. The [Print] dialog appears. Click [Preferences] and open the print setting screen. And then click [Special Functions]. bizhub PRO 1050/1050e/1050P/1050eP 8-46...
Page 192 [Trim] check box when conducting the cover cutting operation. Cover Blank This is used when the perfect binding is employed with no printing made on the cover sheet. The original set in the [Cover Tray] is handled as a cover sheet. bizhub PRO 1050/1050e/1050P/1050eP 8-47...
Page 193 And it is necessary to set in advance the width of the spine to the paper thick- ness. The setting can be made in units of 0.1 mm with the setting range be- tween 1 to 30 mm. bizhub PRO 1050/1050e/1050P/1050eP 8-48...
Page 194 Print 3in1]. Ex.: When using [Cover Print 3in1] for the perfect binding. Cover Print 3in1 (Both sides) Perfect Binding cannot be set in the following cases: - When [PB-501] is not selected in [Option] tab. bizhub PRO 1050/1050e/1050P/1050eP 8-49...
Page 195 (When this function is turned on, the setting of [Image Shift] is applicable only to those other than the Tab Paper.) The movement of 10 -15 mm to Moving allows printing on the the right is available. Tab section. bizhub PRO 1050/1050e/1050P/1050eP 8-50...
Page 196: Overlay Tab
Sets to display a dialog for confirmation before printing with Overlay to be displayed. Overlay - Create Overlay To prepare overlay, turn ON the [Create Overlay], click the [Browse Files] and specify where to save the overlay file. Delete Overlay FIle Deletes Overlay previously created. bizhub PRO 1050/1050e/1050P/1050eP 8-51...
Page 197 Create an overlay with the application in use. Select [Print] from the [File] menu. The selected menu may differ depending on the application used. Select [KONICA MINOLTA 1050 PCL]. Click [Properties]. Click [Overlay] tab. Select [Create Overlay] and click [Browse Files].
Page 198 When printing overlays, perform the following procedure. Select [Print] from the [File] menu. The selected menu may differ depending on the application used. Select [KONICA MINOLTA 1050 PCL]. Click [Properties]. Click [Overlay] tab. Click [Print Overlay] and select file to be printed from list.
Page 199: Watermark Tab
Printing Preference window. Watermark This check box is ON, Watermark function is available. Watermark - Pull down menu By clicking the [▼], watermark list appears. Watermark - Edit By clicking the [Edit], [Edit Watermark] window appears. bizhub PRO 1050/1050e/1050P/1050eP 8-54...
Page 200 - When [Bold] is selected, bold formatting will be applied to your selected watermark text. - When [Italic] is selected, italic formatting will be applied to your selected watermark text. - When [Bold Italic] is selected, bold italic formatting will be applied to your selected watermark text. bizhub PRO 1050/1050e/1050P/1050eP 8-55...
Page 201 Checks to print the Watermark on the first page only. Date/Time - Page to Print Specifies the pages to print the date and time. All pages Date/Time is printed in the all pages. Front Cover Only Date/Time is printed in the front cover only. bizhub PRO 1050/1050e/1050P/1050eP 8-56...
Page 202 Specifies the initial copy number to print. Detail For the display method of the Date/Time and the setting method of the character size, they can be specified on the control panel of the copier. For details, see “User's Guide (Copier)”. bizhub PRO 1050/1050e/1050P/1050eP 8-57...
Page 203: Quality Tab
Pattern - Coarse The [Coarse] prints image with a coarse pattern (dither algorithm). Print Density The print density can be adjusted by the sliding the control bar. Toner Save Saves the consumption of toner by controlling printing density. bizhub PRO 1050/1050e/1050P/1050eP 8-58...
Page 204 2] is suitable for printing the curved sections of nor- mal characters.[Type 3] is suitable for printing the curved sections of or- namental writings and fine characters. - When [Off] is selected, no smoothing operation is made. bizhub PRO 1050/1050e/1050P/1050eP 8-59...
Page 205: Font Tab
However, since the quantity of data sent to the printer is smaller, it is possible to make a high speed printing. Use Printer Fonts - TrueType Font Substitution Table Displays the substitution settings of the True Type Font which is substituted with the built-in printer fonts. bizhub PRO 1050/1050e/1050P/1050eP 8-60...
Page 206 PCL Printer Driver Setting (Windows) Use Printer Fonts - Font Substitution Settings Selects the printer fonts which substitutes for the highlighted True Type Font. Download Font Format Selects the font format to be downloaded to the printer (Outline or BMP). bizhub PRO 1050/1050e/1050P/1050eP 8-61...
Page 207: Version Tab
The method to open the Printing Preference window depends on OS. Re- fer to "About Properties window" on Page 8-1 about how to open the Printing Preference window. Displays the version of the current printer driver. bizhub PRO 1050/1050e/1050P/1050eP 8-62...
Page 208: Save/Restore Setting
Setting] pull down menu. To restore the setting in storage: Setting in storage can be restored when required. Click [Save/Restore Setting] to display menu. Select the setting to be restored from the list on display. bizhub PRO 1050/1050e/1050P/1050eP 8-63...
Page 209 When this is selected, the [Restore Setting] window appears. Library: Select the name of the settings. Detailed Restore Settings: When this is clicked, the [Detailed Restore Settings] dialog appears. Select the restore items in the [Detailed Restore Settings] dialog. bizhub PRO 1050/1050e/1050P/1050eP 8-64...
Page 210 Save Setting File in Li- Click to save the selected settings from the list. brary: Detailed Restore Settings When this is selected, the [Detailed Restore Setting] window appears. Select the restore items in the [Detailed Restore Settings] dialog. bizhub PRO 1050/1050e/1050P/1050eP 8-65...
Page 211: About View Area
To Check the Status of the Optional Unit Status of the optional unit can be checked by the image. Click [Printer View]. Image View The function set up is displayed on view area. The sample of images is shown in the following tables. bizhub PRO 1050/1050e/1050P/1050eP 8-66...
Page 212 • Output Tray Icon view • Cover/Front Cov- er Page/Back Cover Page/ Per Page Setting • Watermark • Secure Print/ Wait Mode • Image Shift Detail Refer to the HELP for more information about Icon view. bizhub PRO 1050/1050e/1050P/1050eP 8-67...
Page 213: Postscript Ppd Printer Driver Setting (Windows)
Select [Start]-[Settings]-[Printers] to open the [Printers] folder, right-click the printer icon and select [Printing Preference]. Windows XP/Server Select [Start]-[Printers and Faxes] to open the [Printers and 2003 Faxes] folder, right-click the printer icon and select [Printing Preference]. bizhub PRO 1050/1050e/1050P/1050eP...
Page 214: Properties Window
In this case, the settings are effective only when the application is in use. Note This chapter is described by using the printer window of Windows XP. The properties window may differ from the window displayed by the printing command of applications. bizhub PRO 1050/1050e/1050P/1050eP...
Page 215: About Button
Apply When the [Apply] is clicked, the present tab settings are saved. This button is usefull when you want conduct other settings in other tabs, and the present tab settings are registered before using other tabs. bizhub PRO 1050/1050e/1050P/1050eP...
Page 216: Combination Of The Function
When this message is displayed, select [Resolve all conflicts for me automatically] or [I will resolve the conflict myself]. When selecting [Resolve all conflicts for me automatically], the previous setting will be turned OFF. bizhub PRO 1050/1050e/1050P/1050eP...
Page 217: General Tab
Enters information about the printer. For example, “User: documentation team”, “Maintenance: 123-456-789”, and so on. Printing Preference Displays the property window of the selected printer. You can change the setting of the printer driver with the property window. bizhub PRO 1050/1050e/1050P/1050eP...
Page 218 PostScript PPD Printer Driver setting (Windows) Print Test Page Prints a test page of Windows. You can print a test page without using any application. Note For more information, refer to the manual of the Windows. bizhub PRO 1050/1050e/1050P/1050eP...
Page 219: Sharing Tab
"About Properties window" on Page 9-1 about how to open the Property window. By using this [Sharing] tab, you can make the printer available to network us- ers. Note For more information, refer to the manual of the Windows. bizhub PRO 1050/1050e/1050P/1050eP...
Page 220: Ports Tab
TCP/IP or Unix printers (using the LPR port), and so on. Delete Port Deletes the selected port from above list. Configure Port Using this button enables you to configure the selected port from above list. Enable bidirectional support Gets the status information from the print device. bizhub PRO 1050/1050e/1050P/1050eP...
Page 221 PostScript PPD Printer Driver setting (Windows) Enable printer pooling Enables printing to two or more identical print devices by using one logical printer. Note For more information, refer to the manual of the Windows. bizhub PRO 1050/1050e/1050P/1050eP...
Page 222: Advanced Tab
Configures how many hours the printer is available. You can choose from 24 hours or specified hours. Priority Configures the priority of the current setting. Driver Displays the installed printer driver name. New Driver Clicks to install a new or updated printer driver. bizhub PRO 1050/1050e/1050P/1050eP 9-10...
Page 223 Sets to print the spooled document irrespective of a priority settings. Keep printed documents Sets to hold the spooled data of the documents after printing. Enable advanced printing features Enables the advanced printing features. Note For more information, refer to the manual of the Windows. bizhub PRO 1050/1050e/1050P/1050eP 9-11...
Page 224: Device Settings Tab
Performs settings of PostScript and the options of the printer. Detail The method to open the Properties window depends on OS. Refer to "About Properties window" on Page 9-1 about how to open the Property window. bizhub PRO 1050/1050e/1050P/1050eP 9-12...
Page 225 257 x 364 mm B4 W 182 x 257 mm B5 W Postcard (100 x 148 mm) Legal Letter Statement Tabloid Font Substitution Table Selects to substitute with printer fonts for the True Type Font or “Don’t Sub- stitute”. bizhub PRO 1050/1050e/1050P/1050eP 9-13...
Page 226 For more information, refer to the Adobe PS User’s Guide. Minimum Font Size to Download as Outline Specifies a minimum font size to download as outline. For more information, refer to the Adobe PS User’s Guide. bizhub PRO 1050/1050e/1050P/1050eP 9-14...
Page 227 Saddle-Stitcher None / SD-501 Stacker None / LS-501 / LS-502 / LS-501 (Two- Linked) / LS-501 + LS-502 Multi Folder None / FD-501(2/3 Hole Type) FD-501(2/4 Hole Type) Paper Sources None / PF-701 Perfect Binder None/PB-501 bizhub PRO 1050/1050e/1050P/1050eP 9-15...
Page 228: Layout Tab
Sets the orientation to output paper in [Portrait], [Landscape] or [Rotated Landscape]. Page Order Selects the output order.[Front to Back] outputs paper starting with the first page.[Back to Front] outputs paper starting with the last page. bizhub PRO 1050/1050e/1050P/1050eP 9-16...
Page 229 ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD Advanced Opens the [KONICA MINOLTA 1050 PS(P) Advanced Options] window. For more information, refer to "Advanced Options windows" on Page 9-20. bizhub PRO 1050/1050e/1050P/1050eP 9-17...
Page 230: Paper/Quality Tab
13" / 8 1/8" x 13 1/4" / 8K / 8" x 13" / A3 / A3 W / A4 / A4 Tab / A4 W / A5 / A5 W / B4 / B4 W / B5 / B5 W / Postcard / Legal / Letter / Statement / Tabloid bizhub PRO 1050/1050e/1050P/1050eP 9-18...
Page 231 - When any item other than [OFF] is selected for the [Advanced Options] - [Duplex], [Fold], [Staple], [Punch], [Combination], [Front Cover Page], [Back Cover Page]. Advanced Opens the [KONICA MINOLTA 1050 PS(P) Advanced Options] window. For more information, refer to "Advanced Options windows" on Page 9-20. bizhub PRO 1050/1050e/1050P/1050eP 9-19...
Page 232: Advanced Options Windows
12” x 18” 12” x 18” W 5 1/2” x 8 1/2” W 8 1/2” x 11 Tab” 8 1/2” x 11” W 8 1/2” x 13” 8 1/4” x 13” 8 1/8” x 13 1/4” bizhub PRO 1050/1050e/1050P/1050eP 9-20...
Page 233 Prints the first one set of copies in one lot, and then the second set of copies, the third set of copies, .., when printing multiple sets of pages. Graphic - Scaling Prints by specifying the enlargement or reduction ratio in the range from 25% to 400%. bizhub PRO 1050/1050e/1050P/1050eP 9-21...
Page 234 Sets various weights of paper as the output paper as shown below. No Setting 40-49g/m 50-61g/m 62-71g/m 72-91g/m 92-130g/m 131-161g/m 162-209g/m 210-244g/m 245-300g/m [245-300g/m ] cannot be set in the following cases: - When [Paper Sources] is not available in the [Device Settings] tab. bizhub PRO 1050/1050e/1050P/1050eP 9-22...
Page 235 Binding Position Sets the binding position for the document to be printed. The position select- ed here will be the position of stapling, punching and base position of the im- age shift. bizhub PRO 1050/1050e/1050P/1050eP 9-23...
Page 236 Example: 2 A4 size papers are aggregated on 1 A3 size paper. 2 in 1 ABCD ABCD ABCD ABCD 2 Repeat ABCD ABCD ABCD ABCD ABCD ABCD 2 Repeat Reversal (L) ABCD ABCD ABCD 2 Repeat Reversal (R) ABCD ABCD ABCD bizhub PRO 1050/1050e/1050P/1050eP 9-24...
Page 237 - When the [245-300 g/m ] is selected in the [Paper Weight] - When the [Default] or [Stapler Main Tray] is not selected in the [Output Tray]. - When any item other than [Z-fold] is selected in the [Fold]. bizhub PRO 1050/1050e/1050P/1050eP 9-25...
Page 238 - When the [Multi Folder] is not available in the [Device Settings] tab - [In- stallable Options] - When the [245-300 g/m ] is selected in the [Paper Weight] - When the other than [Z-fold] is selected in the [Fold] bizhub PRO 1050/1050e/1050P/1050eP 9-26...
Page 239 [Off] is selected for the [Staple], [Punch], only [Z-fold] can be selected. - When any item other than [Off] is selected for the [Front Cover Page], [Back Cover Page], [PI-Front Cover] and [PI-Back Cover], only [Z-fold] can be selected. bizhub PRO 1050/1050e/1050P/1050eP 9-27...
Page 240 Multi-Letter Fold (In/Out) Multi-Half Fold Image Shift Adjusts the details of the printing position to the output paper. Turning on the power starts printing at the printing position set on the control panel of the copier. bizhub PRO 1050/1050e/1050P/1050eP 9-28...
Page 241 ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD Back Cover - Off Back Cover Back Cover - Blank - Printed bizhub PRO 1050/1050e/1050P/1050eP 9-29...
Page 242 Paper Tray/Transparency Interleave cannot be set in the following cases: - When the [Transparency] is not selected in the [Paper/Quality] tab - [Me- dia] - When the [Paper Sources] is not selected in the [Device Settings] tab - [Installable Options] bizhub PRO 1050/1050e/1050P/1050eP 9-30...
Page 243 Binding], see p. 9-23. - [Left Binding] is specified as a default. The Paper Size, the Paper Type and the Paper Weight that can be used for [Perfect Binding] are as shown in the table below. bizhub PRO 1050/1050e/1050P/1050eP 9-31...
Page 244 0 The number of sheets in the body of documents that is bound is 10 to 300. Open the document you want to print, and then select [Print] from [File] menu in an application. The [Print] dialog appears. Click [Preferences] and open the print setting screen. And then click [Advanced]. bizhub PRO 1050/1050e/1050P/1050eP 9-32...
Page 245 When printing the both sides of the front cover, it is necessary to make ar- rangements for the reverse side of the front cover in advance. NOTE: The use of [PI Tray] and [Perfect Binding Cover Tray] is not available for [Cov- er Print 1in1]. bizhub PRO 1050/1050e/1050P/1050eP 9-33...
Page 246 And the second page up to the last page but two (n - 2 page) are printed as the body of documents. And in addition, the width of the spine is reflected on the width set for the copier. bizhub PRO 1050/1050e/1050P/1050eP 9-34...
Page 247 When employing the perfect binding cover on the both sides, set it to [ON]. Perfect Binding Cover Triming When cutting out the perfect binding cover, set it to [ON]. Perfect Binding cannot be set in the following cases: - When [PB-501] is not selected in [Device Settings] tab. bizhub PRO 1050/1050e/1050P/1050eP 9-35...
Page 248 When the [Proof and Print] is selected, only one set is printed and it stops. – When the Mode Check screen is not displayed, press [MACHINE]. On the copier's control panel, the Mode Check screen appears. bizhub PRO 1050/1050e/1050P/1050eP 9-36...
Page 249 Press [START] to resume the rest of the print job. Detail For more information about the method of storing the job in and output- ting it from the hard disk, refer to “User’s Guide (Network Scanner)”. bizhub PRO 1050/1050e/1050P/1050eP 9-37...
Page 250 You can adjust printing density while maintaining print quality. Light 1 Light 2 Light 3 Light 4 Light 5 Toner Save Reduce toner consumption to cut the running cost. However, lower toner consumption means lower Draft Print print quality. bizhub PRO 1050/1050e/1050P/1050eP 9-38...
Page 251 Front Cover Only Date/Time is printed in the 1st page only. Detail For the display method of the Date/Time, it can be specified on the con- trol panel of the copier. For details, see “User's Guide (Copier)”. bizhub PRO 1050/1050e/1050P/1050eP 9-39...
Page 252 Refer to the “User’s Guide (POD Administrator’s Reference)” for more in- formation about Tandem Mode. Sub copier Master copier Tandem Mode cannot be set in the following cases: - When [Transparency Interleave] is selected in [Advanced Options] win- dow. bizhub PRO 1050/1050e/1050P/1050eP 9-40...
Page 253: Konica Minolta Ps Printer Driver Setting (Windows)
KONICA MINOLTA PS Printer Driver setting (Windows) KONICA MINOLTA PS Printer Driver set- ting (Windows) This chapter describes the settings of the KONICA MINOLTA PS printer driv- er. For settings, use the Properties window. 10.1 About Properties window This chapter explains the KONICA MINOLTA PS printer driver settings with Properties window of Windows XP.
Page 254: 10.1.1 Properties Window
KONICA MINOLTA PS Printer Driver setting (Windows) 10.1.1 Properties window You have two ways for selecting or changing settings through the printer driver. How to setup in the Properties window of the Printers and Faxes win- Settings made in the [Properties] of the [Printers and Faxes] folder are ap- plied to print outs from any application.
Page 255: About Button
KONICA MINOLTA PS Printer Driver setting (Windows) 10.2 About button Buttons common to each tab of the [Properties] window are shown below. Button Function When the [OK] is clicked, all tab settings are saved with the close of the properties window.
Page 256: Combination Of The Function
KONICA MINOLTA PS Printer Driver setting (Windows) 10.3 Combination of the function When you select a function which causes a confliction with the settings al- ready configured, the message will be displayed. This is a confirmation message to decide which setting will be turned off.
Page 257: General Tab
KONICA MINOLTA PS Printer Driver setting (Windows) 10.4 General tab Enables printing a test page. Detail The method to open the Properties window depends on OS. Refer to "About Properties window" on Page 10-1 about how to open the Proper- ty window.
Page 258: Sharing Tab
KONICA MINOLTA PS Printer Driver setting (Windows) 10.5 Sharing tab Performs share settings of a printer. Detail The method to open the Properties window depends on OS. Refer to "About Properties window" on Page 10-1 about how to open the Proper- ty window.
Page 259: Ports Tab
KONICA MINOLTA PS Printer Driver setting (Windows) 10.6 Ports tab Performs settings related to ports. Detail The method to open the Properties window depends on OS. Refer to "About Properties window" on Page 10-1 about how to open the Proper- ty window.
Page 260 KONICA MINOLTA PS Printer Driver setting (Windows) Detail For more information, refer to the manual of the Windows. bizhub PRO 1050/1050e/1050P/1050eP 10-8...
Page 261: Advanced Tab
KONICA MINOLTA PS Printer Driver setting (Windows) 10.7 Advanced tab Performs settings regarding drivers, port time out and spooling. Detail The method to open the Properties window depends on OS. Refer to "About Properties window" on Page 10-1 about how to open the Proper- ty window.
Page 262 KONICA MINOLTA PS Printer Driver setting (Windows) Hold mismatched documents Sets to hold the document which does not match to the printer setup. Print spooled documents first Sets to print the spooled document irrespective of a priority settings. Keep printed documents Sets to hold the spooled data of the documents after printing.
Page 263 KONICA MINOLTA PS Printer Driver setting (Windows) 10.8 Color Management tab Performs settings related to color management. Detail The method to open the Properties window depends on OS. Refer to "About Properties window" on Page 10-1 about how to open the Proper- ty window.
Page 264 KONICA MINOLTA PS Printer Driver setting (Windows) 10.9 Font tab The [Fonts] tab sets the font used. Detail The method to open the Properties window depends on OS. Refer to "About Properties window" on Page 10-1 about how to open the Proper- ty window.
Page 265 KONICA MINOLTA PS Printer Driver setting (Windows) Use Printer Fonts For All True Type Fonts Checking this item substitutes printer fonts for all TrueType fonts for output. Use Substitution Table Checking this item to use the TrueType font and printer font substitution ta- ble.
Page 266 KONICA MINOLTA PS Printer Driver setting (Windows) 10.10 Option tab Performs settings of PostScript and the options of the printer. Detail The method to open the Properties window depends on OS. Refer to "About Properties window" on Page 10-1 about how to open the Proper- ty window.
Page 267 KONICA MINOLTA PS Printer Driver setting (Windows) Enhanced Security Selects to use the enhanced security mode. For more information on the Security Mode, refer to “User's Guide (Security Mode)”. Scaling linked with Application If you want to interlock the zoom ratio in the application with the zoom ratio of the printer driver, check this checkbox.
Page 268 KONICA MINOLTA PS Printer Driver setting (Windows) 10.11 Setup tab Performs basic settings of the printer. Detail The method to open the Printing Preference window depends on OS. Re- fer to "About Properties window" on Page 10-1 about how to open the Printing Preference window.
Page 269 KONICA MINOLTA PS Printer Driver setting (Windows) Paper - Original Size You can select a original size from the list shown by clicking [▼]. Original size that can be selected 12” x 18” 11” x 17” 8 1/2” x 14”...
Page 270 KONICA MINOLTA PS Printer Driver setting (Windows) Note The paper with “W” at the end of the document size represents “Wide pa- per”. When [Custom Size] is selected, it is possible to set and register the orig- inal size. Paper - Output Size You can select a paper size from the list shown by clicking [▼].
Page 271 KONICA MINOLTA PS Printer Driver setting (Windows) Output size that can be selected B4 W B5 W 8 1/2" x 11" Tab A4 Tab The default is the Same as Original Size. Paper - Paper Source Selects and set the paper tray to be used from the list. When [Auto] is set, the printer automatically selects and prints from a suitable paper tray.
Page 272 KONICA MINOLTA PS Printer Driver setting (Windows) Paper Type Settings - Edit Paper Type When selecting the paper source from the list and [Edit] is pressed, the [Edit Paper Type] dialog appears. Custom Papers It is possible to set the width and the length of the Custom Paper and save these set sizes.
Page 273 KONICA MINOLTA PS Printer Driver setting (Windows) Original Size - Custom Size - Print Position When click [Print Position], [Print Position Settings] dialog appears. Print using the top of the paper. Center Print using the center of the paper. Bottom Print using the bottom of the paper.
Page 274 KONICA MINOLTA PS Printer Driver setting (Windows) Paper Type Settings - Edit Paper Type - Paper Type Sets various types of paper sizes as the output paper as shown below. Types of paper that can be selected. No Setting Plain Paper...
Page 275 KONICA MINOLTA PS Printer Driver setting (Windows) Paper Type Settings - Edit Paper Type - Pre-Punched Paper Sets whether the paper as the output paper is pre-punched or not. Transparency Interleave If you use Transparency Interleave as the Paper type, check this checkbox.
Page 276 KONICA MINOLTA PS Printer Driver setting (Windows) Layout - N-up - Combination Allocates a document of 1 page, 2 pages, 4 pages, 6 pages, 8 pages, 9 pag- es or 16 pages onto a single page for printing. The allocated pages are au- tomatically reduced for printing based on the printable area of the output paper.
Page 277 KONICA MINOLTA PS Printer Driver setting (Windows) Layout - N-up - Advanced - Scale Borders Selecting this marks the borders thinner, and printing area for each page data becomes wider. Layout - N-up - Advanced - Size/Orientation change handling Determines the output method when a mixture of pages with different paper sizes and printing orientations is used.
Page 278 KONICA MINOLTA PS Printer Driver setting (Windows) Layout - Booklet - Advanced - Fill Bundles If [8], [12] or [16] is specified for [Bundle Size] and there are fractional pages, many blank pages may be generated depending on the number of pages to be output.
Page 279 KONICA MINOLTA PS Printer Driver setting (Windows) Layout - Poster Selects a method to divide and magnify a page. If you select [Custom], spec- ify the zoom in ratio at the [Scale Factor]. Poster (3 x 3) Layout - Poster - Poster Style Determines how a page is divided for enlargement.
Page 280 KONICA MINOLTA PS Printer Driver setting (Windows) Layout - Log/Phys Prints a different paper size without reducing/enlarging the printing size. This enables printing of crop marks and shadows corresponding to the original paper size by using a larger size paper.
Page 281 KONICA MINOLTA PS Printer Driver setting (Windows) Binding - Staple Staples output paper. The number of staplings and their positions can be set. The selectable position will be changed according with the [Binding Position] setting. 1 Staple /Left Binding 1 Staple /Right Binding...
Page 282 KONICA MINOLTA PS Printer Driver setting (Windows) Binding - Hole-Punch The output paper can be set to be punched with 2 holes, 3 holes or 4 holes. Punch holes which can be specified vary depending on the destinations. - USA: Either 2 or 3 holes can be specified.
Page 283 KONICA MINOLTA PS Printer Driver setting (Windows) Output - Output Method - Print Performs the normal printing. Output - Output Method - Secure Print If you print with the Secure Print feature, the printing does not start until you input the Secure Print ID and the password on the copier's control panel.
Page 284 KONICA MINOLTA PS Printer Driver setting (Windows) Press [Secure Folder]. Select a box and press [OK]. Password Input screen appears. Enter [Password]. Press [OK] to close Password Input screen. Select the file to print and press [>>>]. Select [AutoOutput] and press [OK].
Page 285 KONICA MINOLTA PS Printer Driver setting (Windows) Output - Output Method - Save in User Box/Save in User Box and Print You can store the print job as image data on the copier's internal hard disk to re-output them when necessary. To output, use the PageScope Job Spooler or operate on the control panel.
Page 286 KONICA MINOLTA PS Printer Driver setting (Windows) Detail To output, use PageScope Job Spooler or operate on the control panel of copier. For more information on PageScope Job Spooler, refer to “PageScope Job Spooler User's Guide”. For more information about how to operate on the control panel, refer to “User's Guide (Network Scanner)”.
Page 287 KONICA MINOLTA PS Printer Driver setting (Windows) Confirm the current settings. – If you do not change any setting, proceed to the step 9. To change the setting, select the item to be changed and press the [Change]. – When storing the job in the hard disk, select [Output Application] and press the [Change].
Page 288 KONICA MINOLTA PS Printer Driver setting (Windows) Output - Output Order Changes the output order.[Face Down] outputs paper with the printed side facing down.[Face Up] outputs paper with the printed side facing up.“(1 to N)” means to output paper starting with the first page.“(N to 1)” means to out- put paper starting with the last page.
Page 289 KONICA MINOLTA PS Printer Driver setting (Windows) Public User Select when you access as Public user to the print controller. Recipient User Select when you access as Recipient user to the print controller. User Name Enter the Recipient User Name when the [Recipient User] is selected.
Page 290 KONICA MINOLTA PS Printer Driver setting (Windows) 10.12 Per Page Setting You can select several cover settings such as a front and back covers and PI cover sheet. Also, the Chapter setting and Per Page Setting are available. Detail The method to open the Printing Preference window depends on OS. Re- fer to "About Properties window"...
Page 291 KONICA MINOLTA PS Printer Driver setting (Windows) Back Cover Page Sets a back cover type. When the [Blank] is selected, a blank sheet is inserted after the last page. When the [Printed] is selected, the last page of the document is printed with the specified sheet as the back cover.
Page 292 KONICA MINOLTA PS Printer Driver setting (Windows) Chapter - Page Number For the KONICA MINOLTA PS printer driver, print a specific page so that it comes on the front, when printing on [Duplex] or [Booklet]. Multiple page numbers can be entered. When entering multiple page num- bers, use commas to separate them as in the following example: [2,4,6].
Page 293 KONICA MINOLTA PS Printer Driver setting (Windows) Per Page Setting - Hole Punch Settings Sets to use punch in the Per Page Settings. When click this button, the [Hole-Punch Settings] dialog appears. - Hole-Punch: Sets the number of holes to be punched.
Page 294 KONICA MINOLTA PS Printer Driver setting (Windows) Per Page Setting - Add Adds Per Page Setting. When click this button, the [Per Page Setting] dialog appears. Page Number Enters the page number (1 to 9999) which you want to set in the Per Page Settings.
Page 295 KONICA MINOLTA PS Printer Driver setting (Windows) Details When this button is clicked, the [Tab Text Details] dialog appears. You can configure the orientation, position, font name, font type, and font size. Tab Text Set the orientation and the line space of the tab text.
Page 296 KONICA MINOLTA PS Printer Driver setting (Windows) 10.13 Special Functions Configures the special functions of the print controller. Detail The method to open the Printing Preference window depends on OS. Re- fer to "About Properties window" on Page 10-1 about how to open the Printing Preference window.
Page 297 KONICA MINOLTA PS Printer Driver setting (Windows) Distribution Number Stamping - Type Specifies the type of the copy number to print. You can choose either from [Stamp] or [Watermark]. Distribution Number Stamping - Pages to Print Specifies the pages to print the copy number.
Page 298 KONICA MINOLTA PS Printer Driver setting (Windows) Fold Various ways of the folding can be setup. Z-fold Half Fold In Half Fold Out Letter Fold In Letter Fold Out Zigzag Fold In Zigzag Fold Out Double Parallel Fold In Double Parallel Fold Out...
Page 299 KONICA MINOLTA PS Printer Driver setting (Windows) The setting of [Fold] is available when the following unit is installed. Multi Folder Saddle-Stitcher Z-Fold Half Fold (In/Out) Letter Fold (In/Out) Zigzag Fold (In/Out) Double Parallel Fold (In/Out) Gate Fold (In/Out) Multi-Letter Fold (In/Out)
Page 300 KONICA MINOLTA PS Printer Driver setting (Windows) Image Shift - Settings When click this button, the [Image Shift Settings] dialog appears. Switch Setup It specifies whether the Image Shift sets up by the driver side or the printer side. Front Side Set the shift amount for the front side.
Page 301 KONICA MINOLTA PS Printer Driver setting (Windows) Perfect Binding The perfect binding function is a function with which the originals (the body of documents) the spine of which is pasted by the Perfect Binder (PB-501) is rolled-up in the cover sheet for binding.
Page 302 KONICA MINOLTA PS Printer Driver setting (Windows) Size that can be used. Basic weight Paper type that can that can be be used. used. Body of docu- Regular size paper 62-91 g/m Plane Paper ments A4, B5, A5, 8.5 x 11, 5.5 x 8.5,...
Page 303 KONICA MINOLTA PS Printer Driver setting (Windows) Turn ON the [Perfect Binding] and then press [Settings]. Set Perfect Binding. [Perfect Binding] can be set to the following modes. Turn on the [Cover Duplex] check box when printing the cover on both sides and the [Trim] check box when conducting the cover cutting operation.
Page 304 KONICA MINOLTA PS Printer Driver setting (Windows) Ex.: When using [Cover Blank] for the perfect binding. Cover Blank Cover Print 1 in 1 This is used when arrangements are made in advance for the originals the front cover, the back cover and the spine of which have been cut and pasted to the same size as the paper used as the front cover.
Page 305 KONICA MINOLTA PS Printer Driver setting (Windows) NOTE: The use of [PI Tray] and [Perfect Binding Cover Tray] is not available for [Cov- er Print 2in1]. Ex.: When using [Cover Print 2in1] for the perfect binding. Cover Print 2in1 (Both sides)
Page 306 KONICA MINOLTA PS Printer Driver setting (Windows) Divide Output Repeats to staple and/or fold for every number of pages specified. Page per Section When the [Divide Output] is selected, you can set the number of pages for repeating the function.
Page 307 KONICA MINOLTA PS Printer Driver setting (Windows) Tandem Mode Using two copiers (master copier and sub copier), prints can be made at the same time under the same printing conditions. When printing a large number of copies, time required to complete the job can be shortened.
Page 308 KONICA MINOLTA PS Printer Driver setting (Windows) Tab Image Shift This function is used to print the print content of the tab section edited in the original on the tab section of the Tab Paper. The shift of 10 to 15 mm (at intervals of 0.1 mm) is available only in the right direction.
Page 309 KONICA MINOLTA PS Printer Driver setting (Windows) 10.14 PostScript tab The [PostScript] tab performs advanced PostScript settings. Detail The method to open the Printing Preference window depends on OS. Re- fer to "About Properties window" on Page 10-1 about how to open the Printing Preference window.
Page 310 KONICA MINOLTA PS Printer Driver setting (Windows) Settings - Compress Bitmaps Offers a choice of [None], [RLE], [JPEG] or [LZW] as a bitmap compression method. Settings - JPEG When [JPEG] is selected in the [Compress Bitmap], you can select JPEG modes from [High Quality], [Fast], [Default], [Draft] and [Custom].
Page 311 KONICA MINOLTA PS Printer Driver setting (Windows) Settings - PostScript Options Clicking this button displays the [PostScript] dialog box. Settings - PostScript Options - Print PostScript Error Information Checking this box makes the error handler available. When this box is set as checked and an error is encountered during the printing process, an error message is printed out under the action of the error handler.
Page 312 KONICA MINOLTA PS Printer Driver setting (Windows) Print Enhance - Print Enhance Checking this box makes the adjustment of the halftone frequency and angle enable. Print Enhance - Halftoning Sets the halftone frequency in the range from [8.0] to [600.0].
Page 313 KONICA MINOLTA PS Printer Driver setting (Windows) 10.15 Overlay tab The [Overlay] tab sets the overlay of the document to be printed. Detail The method to open the Printing Preference window depends on OS. Re- fer to "About Properties window" on Page 10-1 about how to open the Printing Preference window.
Page 314 KONICA MINOLTA PS Printer Driver setting (Windows) Overlay Choice Condition Displays information about the selected overlay file. Overlay Create Condition Displays the creation status of an overlay file. To create overlay For creating overlays, perform the following procedure. Create an overlay with the application in use.
Page 315 KONICA MINOLTA PS Printer Driver setting (Windows) Overlay Printing Procedure When printing overlays, perform the following procedure. Select [Print] from the [File] menu. The selected menu may differ depending on the application used. Select [KONICA MINOLTA 1050 PS(V)]. Click [Properties].
Page 316 KONICA MINOLTA PS Printer Driver setting (Windows) 10.16 Quality tab The [Quality] tab sets image rotation, reverse image rotation, resolution, etc. Detail The method to open the Printing Preference window depends on OS. Re- fer to "About Properties window" on Page 10-1 about how to open the Printing Preference window.
Page 317 KONICA MINOLTA PS Printer Driver setting (Windows) Print Density Determines the print density of a graphic. If a graphic appears too dark, move the slider towards [Light]. If the graphic appears too light, move the slider towards [Dark]. The default setting is [Nor- mal].
Page 318 KONICA MINOLTA PS Printer Driver setting (Windows) 10.17 Watermarks tab Performs settings related to definitions of Watermark. Detail The method to open the Printing Preference window depends on OS. Re- fer to "About Properties window" on Page 10-1 about how to open the Printing Preference window.
Page 319 KONICA MINOLTA PS Printer Driver setting (Windows) Edit – Gray Scale Set the watermark density with the scroll bar. Edit – Size Sets the font size for a watermark with the scroll bar. Edit – Angle Sets the rotation angle for a watermark with the scroll bar.
Page 320 KONICA MINOLTA PS Printer Driver setting (Windows) 10.18 Save/Restore Setting Settings with the printer driver can be saved to be restored as required. Note This item is not displayed on the [Watermarks] tab. To Save Setting Current setting can be saved by the following method: Click [Save].
Page 321 KONICA MINOLTA PS Printer Driver setting (Windows) 10.19 About View Area Setting of the printer driver and status of the optional unit can be checked. Note The [Printer View] cannot be displayed with the [Watermark] tab. To Check the Status of the Optional Unit Status of the optional unit can be checked by the image.
Page 322: Postscript Ppd Printer Driver Setting (Mac Os 9)
Some functions may not be used depending on the OS you use. The [Page Setup] dialog box will disappear. Select the paper size, click [OK]. The [Page Setup] dialog box will dis- appear. Select [File] - [Print...] of the application. The [Printing] dialog box appears. bizhub PRO 1050/1050e/1050P/1050eP 11-1...
Page 323 Make settings in the [Print] dialog. – You can set the function of the printing system further by opening the screen from the [Print]. Click [Print]. – The file is printed. bizhub PRO 1050/1050e/1050P/1050eP 11-2...
Page 324: Dialog Boxes Used For Configuring This Printing System
[Page Setup] dialog box This dialog box is opened from an application. You can set paper size, ori- entation, scaling, watermarks, visual effect, alternate font, smoothing, and custom page setting. bizhub PRO 1050/1050e/1050P/1050eP 11-3...
Page 325 PostScript PPD Printer Driver setting (Mac OS 9) [Print] dialog box This dialog box is opened from an application. You can set various functions. bizhub PRO 1050/1050e/1050P/1050eP 11-4...
Page 326 [Select a PostScript Printer] list. Click [Setup] if you are using the printing system for the first time. A dialog box appears. Click [Configure]. The [Configure] dialog box appears. Click [OK] to close the [Configure] dialog. bizhub PRO 1050/1050e/1050P/1050eP 11-5...
Page 327 Click [▼] button upper left corner the dialog box to select each menu as required. – [Page Setup] - [Watermark] dia- log box – [Page Setup] - [PostScript Op- tions] dialog box – [Page Setup] - [Custom Page Default] dialog box bizhub PRO 1050/1050e/1050P/1050eP 11-6...
Page 328 Click [▼] button below the [Printer] box to select each menu as re- quired. – [Print] - [Background Printing] di- alog box – [Print] - [Cover Page] dialog box – [Print] - [Layout] dialog box bizhub PRO 1050/1050e/1050P/1050eP 11-7...
Page 329 PostScript PPD Printer Driver setting (Mac OS 9) – [Print] - [Error Handling] dialog – [Print] - [PostScript Settings] dia- log box – [Print] - [Printer Specific Options] dialog box (1) – [Print] - [Printer Specific Options] dialog box (2) bizhub PRO 1050/1050e/1050P/1050eP 11-8...
Page 330: About Descriptions In This Chapter
This chapter mainly describes information on the functions inherent in this printing system. Refer to the manual for the PostScript PPD printer driver for detailed information on the functions common to the PostScript PPD printer driver. bizhub PRO 1050/1050e/1050P/1050eP 11-9...
Page 331: Page Attributes Dialog Box
Legal (8 1/2 x 14) Letter (8 1/2 x 11) Statement (5 1/2 x 8 1/2) 8” x 13” 8 1/2” x 13” 8 1/4” x 13” 8 1/8” x 13 1/4” Postcard 100 x 148 mm A3 W bizhub PRO 1050/1050e/1050P/1050eP 11-10...
Page 332 Prints by specifying the enlargement or reduction ratio in the range from 25% to 400%. The [Scale] cannot be set in the following cases: - When the [Print] - [Layout] - [Pages per sheet] is set to any item other than [1]. bizhub PRO 1050/1050e/1050P/1050eP 11-11...
Page 333 Checks to print on both sides of the paper and fold them. Booklet prints in order which every folded page appears in their original order when gathered at the end. Select the type of the booklet after checking the [Booklet] check box. bizhub PRO 1050/1050e/1050P/1050eP 11-12...
Page 334: Watermark Dialog Box
Five types of watermark are stored by default. Foreground If you want to print the watermark as a foreground, check the checkbox. Save With Document If you want to save the watermark with the document you print, check the [Save With Document] checkbox. bizhub PRO 1050/1050e/1050P/1050eP 11-13...
Page 335 Watermark Text If you want to print the input text as watermark, input the text. Color This printing system supports the gray scale only. Save As Presses this button when you save a new watermark file. bizhub PRO 1050/1050e/1050P/1050eP 11-14...
Page 336: Custom Page Default Dialog Box
Custom Page Name Enters the custom page name with 31 characters or less. Remove You can enter the stored custom page name and unstore it. Stores the custom page settings with the entered custom page name. bizhub PRO 1050/1050e/1050P/1050eP 11-15...
Page 337: General Dialog Box
Prints all pages from the same tray. Select the tray in the right box. First page from Prints the first page from the specified tray in upper box and remaining pages from the specified tray in lower box. bizhub PRO 1050/1050e/1050P/1050eP 11-16...
Page 338 / A3 W / A4 W / A5 W / B4 W / B5 W / 12" x 18" W / 11" x 17" W / 8 1/2" x 11" W / 5 1/2" x 8 1/2" W / 8 1/2" x 11" Tab / A4 Tab / Custom bizhub PRO 1050/1050e/1050P/1050eP 11-17...
Page 339: Background Printing Dialog Box
Print Time Selects the time to be printed. Urgent Prints the document by interruption. Normal Prints the document normally. Print at Prints at the specified time. Put Document on Hold Holds the document without printing. bizhub PRO 1050/1050e/1050P/1050eP 11-18...
Page 340: Cover Page Dialog Box
Selects the method to print a cover page. None Prints no cover page. Before Document Prints a cover page first. After Document Prints a cover page last. Cover Page Paper Source Selects the paper source to print a cover page. bizhub PRO 1050/1050e/1050P/1050eP 11-19...
Page 341: Layout Dialog Box
ABCD ABCD ABCD ABCD Selecting the 2 x 2 sheet/page - 6 x 6 sheet/page enables to divide the page to be output. Layout direction Selects the layout direction the pages allocated onto a single paper. bizhub PRO 1050/1050e/1050P/1050eP 11-20...
Page 342 PostScript PPD Printer Driver setting (Mac OS 9) Border Selects whether to draw a frame or line as the border between pages. Print on Both Sides Checks to print on both sides. bizhub PRO 1050/1050e/1050P/1050eP 11-21...
Page 343: Printer Specific Options Dialog Box (1)
Refer to the "Displaying the [Print] dialog box" on Page 11-7. Collated Sets [ON] to print the required number of the first page, and then the required number of the second pages, the third page, ..collectively when printing multiple sets of pages. bizhub PRO 1050/1050e/1050P/1050eP 11-22...
Page 344 - When the [Offset] is set in the [Print] - [Printer Specific Options] dialog box (2). - When the [Duplex] is set in the [Print] - [Printer Specific Options] dialog box (2). - When the [Paper Sources] is not available in the [Configure] dialog box. bizhub PRO 1050/1050e/1050P/1050eP 11-23...
Page 345: Printer Specific Options Dialog Box (2)
Sets various weights of paper as the output paper as shown below. No Setting 40-49g/m 50-61g/m 62-71g/m 72-91g/m 92-130g/m 131-161g/m 162-209g/m 210-244g/m 245-300g/m [245-300g/m ] cannot be set in the following cases: - When [Paper Sources] is not available in the [Configure] dialog box. bizhub PRO 1050/1050e/1050P/1050eP 11-24...
Page 346 Setting the Pile Permission to OFF allows no pile on the stacker. When a job the pile of which is not permitted is on the stacker, no pile is made even if a pile permission is granted. bizhub PRO 1050/1050e/1050P/1050eP 11-25...
Page 347 - When the [Transparency] is selected for [Media] in the [Print] - [Printer Specific Options] dialog box (1). - When any item other than [Off] is selected for [Front Cover Page], [Back Cover Page], [Paper Tray /Front Cover Page] or [Paper Tray /Back Cover Page]. bizhub PRO 1050/1050e/1050P/1050eP 11-26...
Page 348 - When the [245-300 g/m ] is selected in the [Paper Weight] - When any item other than [Z-fold] is selected for [Fold]. Detail Refer to “User’s Guide (Copier)” for more information about staple and punch. bizhub PRO 1050/1050e/1050P/1050eP 11-27...
Page 349 - When any item other than [Z-fold] is selected for [Fold]. Note Punch holes which can be specified vary depending on the destinations. USA : Either 2 or 3 holes can be specified. Others : Either 2 or 4 holes can be specified. bizhub PRO 1050/1050e/1050P/1050eP 11-28...
Page 350 - When the [Transparency] is selected for [Media] in the [Print] - [Printer Specific Options] dialog box (1). - When any item other than [Off] is selected for the [Staple], [Punch], only [Z-fold] can be selected. bizhub PRO 1050/1050e/1050P/1050eP 11-29...
Page 351 The setting of [Fold] is available when the following unit is installed. Multi Folder Saddle-Stitcher Z-Fold Half Fold (In/Out) Letter Fold (In/Out) Zigzag Fold (In/Out) Double Parallel Fold (In/Out) Gate Fold (In/Out) Multi-Letter Fold (In/Out) Multi-Half Fold bizhub PRO 1050/1050e/1050P/1050eP 11-30...
Page 352 - When the [Transparency] is selected for [Media] in the [Print] - [Printer Specific Options] dialog box (1). - When any item other than [Off] is selected for the [Fold]. Paper Tray/Front Cover Page Specifies the paper tray for the front cover. bizhub PRO 1050/1050e/1050P/1050eP 11-31...
Page 353 The [PI Back Cover] cannot be set in the following cases: - When the [None] is selected for [Multi Folder] in the [Installable Options] field of the [Configure] dialog. - When any item other than [Off] is selected for the [Fold]. bizhub PRO 1050/1050e/1050P/1050eP 11-32...
Page 354 The Paper Tray (Transparency Interleave) cannot be set in the following cas- - When the [Transparency] is not selected for [Media] in the [Print] - [Printer Specific Options] dialog box (1). - When the [Paper Sources] is not selected in the [Configure] dialog bizhub PRO 1050/1050e/1050P/1050eP 11-33...
Page 355 Binding], see p. 11-26. - [Left Binding] is specified as a default. The Paper Size, the Paper Type and the Paper Weight that can be used for [Perfect Binding] are as shown in the table below. bizhub PRO 1050/1050e/1050P/1050eP 11-34...
Page 356 0 The number of sheets in the body of documents that is bound is 10 to 300. Open the document you want to print, and then select [Print] from [File] menu in an application. The [Print] dialog appears. Select [Printer Specific Options (2)]. Set [Perfect Binder Setting]. bizhub PRO 1050/1050e/1050P/1050eP 11-35...
Page 357 And the width of the spine is reflected on the width set for the copier. NOTE: The use of [PI Tray] and [Perfect Binding Cover Tray] is not available for [Cov- er Print 2in1]. Ex.: When using [Cover Print 2in1] for the perfect binding. Cover Print 2in1 (Both sides) bizhub PRO 1050/1050e/1050P/1050eP 11-36...
Page 358 When cutting out the perfect binding cover, set it to [ON]. Perfect Binding cannot be set in the following cases: - When the [None] is selected for [Perfect Binder] in the [Installable Op- tions] field of the [Configure] dialog. bizhub PRO 1050/1050e/1050P/1050eP 11-37...
Page 359 When the Mode Check screen is not displayed, press [MACHINE] tab. On the copier's control panel, the Mode Check screen appears. Confirm the current settings. If you do not change any setting, proceed to the step 8. bizhub PRO 1050/1050e/1050P/1050eP 11-38...
Page 360 2] is suitable for printing the curved sections of nor- mal characters.[Type 3] is suitable for printing the curved sections of or- namental writings and fine characters. - When [Off] is selected, no smoothing operation is made. bizhub PRO 1050/1050e/1050P/1050eP 11-39...
Page 361 Front Cover Only Date/Time is printed in the 1st page only. Detail For the display method of the Date/Time, it can be specified on the con- trol panel of the copier. For details, see “User's Guide (Copier)”. bizhub PRO 1050/1050e/1050P/1050eP 11-40...
Page 362 Refer to the “User’s Guide (POD Administrator’s Reference)” for more in- formation about Tandem Mode. Sub copier Master copier Tandem Mode cannot be set in the following cases: - When [Transparency Interleave] is selected in [Printer Specific Options] dialog box (2). bizhub PRO 1050/1050e/1050P/1050eP 11-41...
Page 363: 11.12 Configure Dialog Box
Selects an installed Stapler. Saddle-Stitcher Selects an installed Saddle Stitcher. Stacker Selects an installed Stacker. Multi Folder Selects an installed Multi Folder. Paper Sources Selects an installed paper source. Perfect Binder Selects an installed Perfect Binder. bizhub PRO 1050/1050e/1050P/1050eP 11-42...
Page 364: Postscript Ppd Printer Driver Setting (Mac Os X)
The method to open the [Printer Info] window Double-click [Applications] - [Utilities] - [Printer Setup Utility] in a hard disk with system. The [Printer List] window appears. Select the printer and then select [Show Info] from Printers menu. [Printer Info] window appears. bizhub PRO 1050/1050e/1050P/1050eP 12-1...
Page 365 The [Print] window appears. Detail To perform printing, click [Print]. Clicking [Save As PDF] creates a PDF file. Selecting [Save As] on the [Pre- sets] pop-up menu enables you to save the settings you configured in the [Print] window. bizhub PRO 1050/1050e/1050P/1050eP 12-2...
Page 366: Page Attributes (Page Setup Window)
148 x 210 mm 257 x 364 mm 182 x 257 mm 12” x 18” 11” x 17” 8 1/2” x 14” 8 1/2” x 11” 5 1/2” x 8 1/2” 8” x 13” 8 1/2” x 13” bizhub PRO 1050/1050e/1050P/1050eP 12-3...
Page 367 Prints by specifying the enlargement or reduction ratio in the range from 25% to 400%. The [Scale] cannot be set in the following cases: - When the [Pages per Sheet] is set to any item other than [1]. bizhub PRO 1050/1050e/1050P/1050eP 12-4...
Page 368: Custom Paper Size (Page Setup Window)
Refer to the"The method to open the [Page Setup] window" on Page 12- You can register a new Custom Paper Size. Paper Size Sets the height and width of the output paper. Printer Margins Sets the margins of the output paper. bizhub PRO 1050/1050e/1050P/1050eP 12-5...
Page 369 It is possible to register a new Custom Page Size. The setting of the Custom Page Size is deleted. Paper Size Sets the height and width of the output paper. Printer Margins Sets the margins of the output paper. bizhub PRO 1050/1050e/1050P/1050eP 12-6...
Page 370: Copies & Pages (Print Window)
Prints all pages of the document. From [ ] To [ ] Enters the initial page number and the ending page number. If you want to print one page, enter the page number to the both boxes. bizhub PRO 1050/1050e/1050P/1050eP 12-7...
Page 371: Layout (Print Window)
ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD ABCD Layout Direction Selects the layout direction the pages allocated onto a single paper. bizhub PRO 1050/1050e/1050P/1050eP 12-8...
Page 372 PostScript PPD Printer Driver setting (Mac OS X) Border Selects whether draw a frame or line as the border between pages. Two Sided Printing Set either [Long-Edge Binding] or [Short-Edge Binding] for two sided print- ing. bizhub PRO 1050/1050e/1050P/1050eP 12-9...
Page 373: Paper Feed (Print Window)
Detail If you use [Auto Select], a paper feed tray is automatically selected. The paper specified in [Page Attributes] of this printing system is set on the tray. bizhub PRO 1050/1050e/1050P/1050eP 12-10...
Page 374: Finishing (Print Window)
Setting the Pile Permission to OFF allows no pile on the stacker. When a job the pile of which is not permitted is on the stacker, no pile is made even if a pile permission is granted. bizhub PRO 1050/1050e/1050P/1050eP 12-11...
Page 375 Refer to the “User’s Guide (POD Administrator’s Reference)” for more in- formation about Tandem Mode. Sub copier Master copier Tandem Mode cannot be set in the following cases: - When [Transparency Interleave] is selected in [Setup] window. bizhub PRO 1050/1050e/1050P/1050eP 12-12...
Page 376 Sets the binding position for the document to be printed. The position select- ed here will be the position of stapling, punching and base position of the im- age shift. Duplex Prints continuous multiple pages on both front and back sides. bizhub PRO 1050/1050e/1050P/1050eP 12-13...
Page 377 - When the [Multi Folder] is not available in the [Printer Info] - [Installable Options]. - When the [Transparency] is selected for [Print] - [Setup] - [Paper Type]. - When any item other than [Z-Fold] is selected for [Fold]. bizhub PRO 1050/1050e/1050P/1050eP 12-14...
Page 378 - When any item other than [Z-Fold] is selected for [Fold]. Note Punch holes which can be specified vary depending on the destinations. USA : Either 2 or 3 holes can be specified. Others : Either 2 or 4 holes can be specified. bizhub PRO 1050/1050e/1050P/1050eP 12-15...
Page 379 - When any item other than [Off] is selected for the [Staple], [Hole-Punch], only [Z-Fold] can be selected. - When any item other than [Off] is selected for the [Front Cover Page], [Back Cover Page], [Paper Tray (Front Cover Page)] and [Paper Tray (Back Cover Page)]. bizhub PRO 1050/1050e/1050P/1050eP 12-16...
Page 380 The setting of [Fold] is available when the following unit is installed. Multi Folder Saddle-Stitcher Z-Fold Half Fold (In/Out) Letter Fold (In/Out) Zigzag Fold (In/Out) Double Parallel Fold (In/Out) Gate Fold (In/Out) Multi-Letter Fold (In/Out) Multi-Half Fold bizhub PRO 1050/1050e/1050P/1050eP 12-17...
Page 381: Image/Layout (Print Window)
Example: 2 A4 size papers are aggregated on 1 A3 size paper. 2 in 1 ABCD ABCD ABCD ABCD 2 Repeat ABCD ABCD ABCD ABCD ABCD ABCD 2 Repeat Reversal (L) ABCD ABCD ABCD 2 Repeat Reversal (R) ABCD ABCD ABCD bizhub PRO 1050/1050e/1050P/1050eP 12-18...
Page 382 Date/Time is printed in the 1st page only. Detail For the display method of the Date/Time, it can be specified on the con- trol panel of the copier. For details, see “User's Guide (Copier)”. Resolution DIsplays the resolution of the printer (600 dpi). bizhub PRO 1050/1050e/1050P/1050eP 12-19...
Page 383 2] is suitable for printing the curved sections of nor- mal characters.[Type 3] is suitable for printing the curved sections of or- namental writings and fine characters. - When [Off] is selected, no smoothing operation is made. bizhub PRO 1050/1050e/1050P/1050eP 12-20...
Page 384: Setup (Print Window)
PostScript PPD Printer Driver setting (Mac OS X) 12.9 Setup (Print window) Selects [Setup] on the pop-up menu in the [Print] window. Detail Refer to the "The method to open the [Print] window" on Page 12-2. bizhub PRO 1050/1050e/1050P/1050eP 12-21...
Page 385 - When [Paper Sources] is not available in the [Printer Info] window. Paper Color Selects the colors of paper as the output paper as shown below. - No Setting - White - Clear - Yellow - Pink - Blue - Green bizhub PRO 1050/1050e/1050P/1050eP 12-22...
Page 386 - When the [Transparency] is selected in the [Print] - [Setup] - [Paper Type] - When the [Collated] is not available in the [Print] - [Copies & Pages] - When the [Pages per Sheets] is selected in the [Print] - [Layout] bizhub PRO 1050/1050e/1050P/1050eP 12-23...
Page 387 Sets this when you want to use the paper feed tray for [Transparency Inter- leave]. [Paper Tray (Transparency Interleave)] cannot be set in the following cases: - [Transparency] is not set in [Paper Type] of the [Setup] window.[Transpar- ency Interleave] is not set in the [Setup] window. bizhub PRO 1050/1050e/1050P/1050eP 12-24...
Page 388 Binding], see p. 12-13. - [Left Binding] is specified as a default. The Paper Size, the Paper Type and the Paper Weight that can be used for [Perfect Binding] are as shown in the table below. bizhub PRO 1050/1050e/1050P/1050eP 12-25...
Page 389 0 The number of sheets in the body of documents that is bound is 10 to 300. Open the document you want to print, and then select [Print] from [File] menu in an application. The [Print] dialog appears. Select [Setup]. bizhub PRO 1050/1050e/1050P/1050eP 12-26...
Page 390 This is used when the perfect binding is employed with no printing made on the cover sheet. The original set in the [Cover Tray] is handled as a cover sheet. Ex.: When using [Cover Blank] for the perfect binding. Cover Blank bizhub PRO 1050/1050e/1050P/1050eP 12-27...
Page 391 And in addition, the width of the spine is reflected on the width set for the copier. NOTE: The use of [PI Tray] and [Perfect Binding Cover Tray] is not available for [Cov- er Print 3in1]. bizhub PRO 1050/1050e/1050P/1050eP 12-28...
Page 392 Perfect Binding Cover Triming When cutting out the perfect binding cover, set it to [ON]. Perfect Binding cannot be set in the following cases: - When the [Perfect Binder] is not available in the [Printer Info] - [Installable Options]. bizhub PRO 1050/1050e/1050P/1050eP 12-29...
Page 393: Security (Print Window)
For more information on the Secure output, refer to “User’s Guide (Network Scanner)”. Open the file to be printed and select [File] - [Print] of application. Select [Security] from pop-up menu. Select [Secure Print] in the [Output Method]. [Secure Print Settings] field becomes active. bizhub PRO 1050/1050e/1050P/1050eP 12-30...
Page 394 Press [OK] to close the Password Input screen. Select the file to print and press [>>>]. Select [Auto Output] and press the [OK]. Designate the number of sheets or the page to be output and press the [OK]. The Confidential file is printed. bizhub PRO 1050/1050e/1050P/1050eP 12-31...
Page 395 To output, use PageScope Job Spooler or operate on the control panel of copier. For more information on PageScope Job Spooler, refer to “PageScope Job Spooler User's Guide”. For more information about how to operate on the control panel, refer to “User's Guide (Network Scanner)”. bizhub PRO 1050/1050e/1050P/1050eP 12-32...
Page 396 To change the setting, select the item to be changed and press the [Change]. – When storing the job in the hard disk, select [Output Application] and press the [Change]. Change the settings and press [OK]. The [MACHINE] tab appears. bizhub PRO 1050/1050e/1050P/1050eP 12-33...
Page 397 Selects to use the Account Track. Department Name Enter the Department Name. Password Enter the password. Enhanced Security If you use the Security Mode, check this checkbox. For more information on the Security Mode, refer to “User's Guide (Security Mode)”. bizhub PRO 1050/1050e/1050P/1050eP 12-34...
Page 398: 12.11 Printer Info
Select the printer memory to make the printer driver to recognize the printer memory. Stapler Selects an installed Stapler. Saddle Stitcher Selects an installed Saddle Stitcher. Stacker Selects an installed Stacker. Multi Folder Selects an installed Multi Folder. bizhub PRO 1050/1050e/1050P/1050eP 12-35...
Page 399 PostScript PPD Printer Driver setting (Mac OS X) Paper Sources Selects an installed paper source. Perfect Binder Selects an installed Perfect Binder. bizhub PRO 1050/1050e/1050P/1050eP 12-36...
Page 400: Troubleshooting
13.1 Basic Troubleshooting This section describes how to troubleshoot. If problems are not resolved by using the following procedure, contact your Konica Minolta service repre- sentative. First check the following ordinary causes of abnormalities: Check the power of the main body printer (copier), computers and ca- ble connections.
Page 401: General Problems Of Printing
Cancel the job to change the paper size in the “Page (Paper) Setup” di- alog on your application. Touch and select the desired size displayed in the paper sizes area of the control panel, then press [START]. The forced output will start. bizhub PRO 1050/1050e/1050P/1050eP 13-2...
Page 402 – Contact your Konica Minolta service representative if you cannot print the test page after performing the above procedures. The print setting of a job does not correspond to the result of printing.
Page 403 When “Print Controller Memory Overflow” is displayed on the LCD Touch Screen when you are using Duplex printing or another Appli- cation function, you may cancel the print job and try to reprint with another function. bizhub PRO 1050/1050e/1050P/1050eP 13-4...
Page 404: General Problems Of Postscript
It is possible that elements or fonts used in the page are damaged, or a larger memory capacity than currently available capacity is needed for the printout. Try to print with specifying one element or font of the various ones in the page. bizhub PRO 1050/1050e/1050P/1050eP 13-5...
Page 405 The direction in which non fixed size paper is loaded in the copier may be incorrect. Rotate the paper direction 90 degrees and then try printing after changing the settings of the driver and copier accordingly. bizhub PRO 1050/1050e/1050P/1050eP 13-6...
Page 406: Checking On Incomplete Jobs
List screen. To get the Non complete Job List screen to appear: Press [JOB LIST] on the LCD panel. Press [Incomplete]. Check the Incomplete job. Detail For more information about job list, consult your system administrator. bizhub PRO 1050/1050e/1050P/1050eP 13-7...
Page 407: Font
Font Font This chapter describes the font. 14.1 Font List (PCL) bizhub PRO 1050/1050e/1050P/1050eP 14-1...
Page 408 Font bizhub PRO 1050/1050e/1050P/1050eP 14-2...
Page 409 Font bizhub PRO 1050/1050e/1050P/1050eP 14-3...
Page 410 Font bizhub PRO 1050/1050e/1050P/1050eP 14-4...
Page 411: Font List (Postscript)
Font 14.2 Font List (PostScript) bizhub PRO 1050/1050e/1050P/1050eP 14-5...
Page 412 Font bizhub PRO 1050/1050e/1050P/1050eP 14-6...
Page 413 Font bizhub PRO 1050/1050e/1050P/1050eP 14-7...
Page 414 Font bizhub PRO 1050/1050e/1050P/1050eP 14-8...
Page 415 Font bizhub PRO 1050/1050e/1050P/1050eP 14-9...
Page 416 Font bizhub PRO 1050/1050e/1050P/1050eP 14-10...
Page 417: Screen Fonts
It is recommended to install this font when desiring to match the monitor dis- play with printed results in the case of printing when using the printer font. For a list of the types of fonts available, refer to "Font List (PostScript)" on Page 14-5. bizhub PRO 1050/1050e/1050P/1050eP 14-11...
Page 418 To Install Type1 fonts in Windows 98 and NT 4.0 using ATM Light 4.1: Choose [Start] - [Programs] - [Ado- be] - [Adobe Type Manager] - [Ado- be Type Manager 4.1]. In ATM, click [Font] tab. Choose [Browse For Fonts] from the [Source] pop-up menu. bizhub PRO 1050/1050e/1050P/1050eP 14-12...
Page 419 Windows 2000/XP/Server 2003 supports PostScript Type 1 fonts at the sys- tem level just like TrueType fonts. You do not need to install ATM. Choose [Start] - [Setting] - [Control Panel]. Double-click on the [Fonts] icon. Go to the [File] menu, select [Install new font]. bizhub PRO 1050/1050e/1050P/1050eP 14-13...
Page 420 [Next]. Click [Yes]. – Use of Adobe Type Manager (ATM) is subject to the terms and con- ditions of the [Software License Agreement]. If you agree by them, click [Yes]. – The [User Information] window appears. bizhub PRO 1050/1050e/1050P/1050eP 14-14...
Page 421 [Display Adobe Type Manager Read Me file.] check box, the [Setup Com- plete] window will appear when you click [Finish]. Click [Finish] and Windows restarts. – When Windows is restarted, Adobe Type Manager (ATM) goes into effect. bizhub PRO 1050/1050e/1050P/1050eP 14-15...
Page 422: Postscript Downloading New Fonts
If you don’t do so, you cannot use the down- loaded fonts Properly. For details on how to download fonts, refer to the User’s Guide that comes with the fonts. bizhub PRO 1050/1050e/1050P/1050eP 14-16...
Page 423: Font Management Utility
“Font Management Utility” is provided that allows the addition and/or dele- tion of the PCL font and the PostScript font to and from the print controller. For details, see the User's Guide in the “bizhub PRO 1050 Series” CD-ROM [Font Management Utility].
Page 424: Utility Tool
This chapter describes the function which can be used by non-adminis- trator of the print controller. About the functions used by the administra- tor, refer to the “User’s Guide (POD Administrator’s Reference)” for more information about copier. bizhub PRO 1050/1050e/1050P/1050eP 15-1...
Page 425: 15.1.1 Outline Of The Pagescope Web Connection
- Default Setting - TIFF Setting Report to be printed You can print the report as follows; - Configuration page - PCL Font List - PCL Demo Page - PostScript Font List - PostScript Font Page bizhub PRO 1050/1050e/1050P/1050eP 15-2...
Page 426: 15.1.2 Start The Pagescope Web Connection
[Enter] / [Return] key. The top page of the PageScope Web Connection appears. Detail Example: When the IP address of the print controller is 192.168.1.0, enter as follows: “http://192.168.1.0” Contact your administrator about IP address of the print controller. bizhub PRO 1050/1050e/1050P/1050eP 15-3...
Page 427 Utility Tool Display the variable status Summary Click [System] from the top navigation. The [System] page appears. Click [Summary] from the left navigation. The [Summary] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-4...
Page 428 Utility Tool Device Information Click [System] from the top navigation. The [System] page appears. Click [Device Information] from the left navigation. The [Device Information] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-5...
Page 429 Detail - Input Tray Click [System] from the top navigation. The [System] page appears. Click [Detail] from the left navigation. The Sub navigation of the [Detail] appears. Click [Input Tray] from the sub navigation. The [Input Tray] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-6...
Page 430 Detail - Output Tray Click [System] from the top navigation. The [System] page appears. Click [Detail] from the left navigation. The Sub navigation of the [Detail] appears. Click [Output Tray] from the sub navigation. The [Output Tray] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-7...
Page 431 Detail - Hard Disk Click [System] from the top navigation. The [System] page appears. Click [Detail] from the left navigation. The Sub navigation of the [Detail] appears. Click [Hard Disk] from the sub navigation. The [Hard Disk] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-8...
Page 432 Detail - Interface Information Click [System] from the top navigation. The [System] page appears. Click [Detail] from the left navigation. The Sub navigation of the [Detail] appears. Click [Interface Information] from the sub navigation. The [Interface Information] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-9...
Page 433 Detail - Consumables Click [System] from the top navigation. The [System] page appears. Click [Detail] from the left navigation. The Sub navigation of the [Detail] appears. Click [Consumables] from the sub navigation. The [Consumables] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-10...
Page 434 Utility Tool Counter Click [System] from the top navigation. The [System] page appears. Click [Counter] from the left navigation. The [Counter] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-11...
Page 435 Utility Tool Online Assistance Click [System] from the top navigation. The [System] page appears. Click [Online Assistance] from the left navigation. The [Online Assistance] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-12...
Page 436 Click [Job] from the top navigation. The [Job] page appears. Click [Active Job List] from the left navigation. The Sub navigation of the [Active Job List] appears. Click [Print] from the sub navigation. The [Print] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-13...
Page 437 Click [Job] from the top navigation. The [Job] page appears. Click [Active Job List] from the left navigation. The Sub navigation of the [Active Job List] appears. Click [Scan Transmission] from the sub navigation. The [Scan Transmission] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-14...
Page 438 Click [Done Job List] from the left navigation. The Sub navigation of the [Done Job List] appears. Click [Print] from the sub navigation. The [Print] page appears. Select job from the list and click The [Detail] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-15...
Page 439 Click [Done Job List] from the left navigation. The Sub navigation of the [Done Job List] appears. Click [Scan Transmission] from the sub navigation. The [Scan Transmission] page appears. Select job from the list and click The [Detail] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-16...
Page 440 Click [Print] from the top navigation. The [Print] page appears. Click [Default Setting] from the left navigation. The Sub navigation of the [Default Setting] appears. Click [General Setting] from the sub navigation. The [General Setting] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-17...
Page 441 Click [Print] from the top navigation. The [Print] page appears. Click [Default Setting] from the left navigation. The Sub navigation of the [Default Setting] appears. Click [PCL Settings] from the sub navigation. The [PCL Settings] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-18...
Page 442 Click [Print] from the top navigation. The [Print] page appears. Click [Default Setting] from the left navigation. The Sub navigation of the [Default Setting] appears. Click [PS Settings] from the sub navigation. The [PS Settings] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-19...
Page 443 Click [Print] from the top navigation. The [Print] page appears. Click [Default Setting] from the left navigation. The Sub navigation of the [Default Setting] appears. Click [TIFF Settings] from the sub navigation. The [TIFF Settings] page appears. bizhub PRO 1050/1050e/1050P/1050eP 15-20...
Page 444: 15.1.3 Print The Report
Click [Report Types] from the left navigation. The [Report Types] page appears. Select the report type to be printed. Click [Print]. The report is printed. Note About the report type, refer to “Report to be printed” on page 15-2. bizhub PRO 1050/1050e/1050P/1050eP 15-21...
Page 445: Using Konica Minolta Peer To Peer Printing Tool
TCP/IP, the network interface card must be set up for TCP/IP in advance. For each of the Windows 98/Me computers that perform peer-to-peer printing, it is necessary to set up TCP/IP, install and set up [KONICA MINOLTA Peer to Peer Printing Tool] included in the accompanying CD-ROM, and set up the printer driver.
Page 446 The [Select Program Folder] window will appear. Uninstallation of KONICA MINOLTA Peer to Peer Printing Tool When uninstalling the KONICA MINOLTA Peer to Peer Printing Tool, perform the following procedure. Change the printer port or delete the printing system using KONICA MINOLTA Peer to Peer Printing Tool from the [Printers] folder.
Page 447 – Screens for [Add Port] differ de- pending on the printer driver in use. Check [Other] radio button. Select [KONICA MINOLTA Peer to Peer Port], and click [OK]. [KONICA MINOLTA Peer to Peer Setup] window appears. Perform the setup. –...
Page 448 Click [OK] to close properties window of printer driver. Note The bizhub PRO 1050 Series is not corresponding to the IPX/SPX-P2P. bizhub PRO 1050/1050e/1050P/1050eP 15-25...
Page 449: Internet Printing
Settings on the Copier To run a print job over IPP, TCP/IP settings must have been previously es- tablished. You can also set IPP attributes. To do this, contact your network administra- tor about network setting. bizhub PRO 1050/1050e/1050P/1050eP 15-26...
Page 450 (NIC's) host name if DNS is set up on your network. – If you designate the proxy setting in your Internet Explorer, you may access your printer over IPP. For more information contact your network administrator. Click [Next]. The [Add Printer Wizard] will appear. bizhub PRO 1050/1050e/1050P/1050eP 15-27...
Page 451 (NIC's) host name if DNS is set up on your network. – If you designate the proxy setting in your Internet Explorer, you may access the your printer over IPP. For more information contact your network administrator. Click [Next]. bizhub PRO 1050/1050e/1050P/1050eP 15-28...
Page 452 Macintosh (Mac OS X)" on Page 5-23. Select [Utilities] of the [Go] menu. Select [Printer Setup Utility]. Select [Add]. Select [IP Print] (v10.4x is shown as [IP Printer].) as a connection meth- od for a printer. bizhub PRO 1050/1050e/1050P/1050eP 15-29...
Page 453 Utility Tool Select [IPP (Internet Printing Protocol)] and printer’s URL. Select [KONICA MINOLTA] from the [Printer Model], and select the cor- responding printer. Click [Add]. Close [Printer List] window. bizhub PRO 1050/1050e/1050P/1050eP 15-30...
Page 454: Netware
The main body printer will print out a Status Page indicating the file servers equipped with print server and the queues that the file servers will service. bizhub PRO 1050/1050e/1050P/1050eP 15-31...
Page 455 The Directory Information Base (DIB) is used to store information about serv- ers and services, users, printing systems, gateways, etc. It is a distributed database, allowing access to data anywhere on the network wherever it is stored. bizhub PRO 1050/1050e/1050P/1050eP 15-32...
Page 456 NetWare allows the use of PCONSOLE as an alternative of NWADMIN. PCONSOLE is used to set up static information of print servers regarding which queues to service and to whom information is given in case of trouble. bizhub PRO 1050/1050e/1050P/1050eP 15-33...
Page 457 If you are sure that the bindery context exists in the file server, you can set up the print server with PCONSOLE. Detail Refer to the Novell NetWare manual for details of setup with PCONSOLE. In Bindery mode, only upper-case letters are valid for the printer server password. bizhub PRO 1050/1050e/1050P/1050eP 15-34...
Page 458: Unix Printing Through Tcp/Ip
PRO 1050/1050e/1050P/1050eP 15-35...
Page 459 - Use arp and ping capability. - Use BOOTP (Internet Boot Protocol). - Use reverse ARP (rarp) capability (Ethernet II frame type only). - Use arp command, MAP (Management Access Program), or BOOTP Lite for Windows. bizhub PRO 1050/1050e/1050P/1050eP 15-36...
Page 460 To set up a remote printer on the host that sends jobs to the network inter- face card using printer resident lpd, add an entry to the /etc/printcap file on your host for each printer you use. Perform the following procedure: bizhub PRO 1050/1050e/1050P/1050eP 15-37...
Page 461 When a window appears, change the values shown to configure the network interface card. – The values displayed are default values. You must replace the short and long form filter values with the values shown in the following ta- ble. bizhub PRO 1050/1050e/1050P/1050eP 15-38...
Page 462 Use the host address of the Network Interface Card for the Remote System. Use [PRINT] for the queue on the remote system. Add a description (optional). Press [Enter] to generate. – Installation is complete. Test your printer by executing the following command: – lp -d<queue_name> <file_name> bizhub PRO 1050/1050e/1050P/1050eP 15-39...
Page 463 Data Requested Example Description of Input Data Printer Name myprinter name to be used in lp com- mand Remote System Name fastprint Network Interface Card host- name as in /etc/hosts Remote printer Name PRINT lpd queue name bizhub PRO 1050/1050e/1050P/1050eP 15-40...
Page 464 Designate a spooler directory and press [Enter], or accept the default spooler directory displayed and press [Enter]. Designate a remote system name and press [Enter]. Designate PRINT as the remote system printer name and press [Enter]. bizhub PRO 1050/1050e/1050P/1050eP 15-41...
Page 465 Select exit to save your configuration, then press [Enter]. You are now prepared to print. Printer #7 Symbol Type Representative Value lp (line printer) rm (remote host) Network Interface Card_host rp (remote printer) PRINT sd (spooler directory) /usr/spool/lpd7 bizhub PRO 1050/1050e/1050P/1050eP 15-42...
Page 466 Y – Enter another printer name or quit setup: Q If necessary, stop and restart your remote daemon. Using a line editor of your choice, edit the /etc/printcap file and change the: rp=entry to PRINT. bizhub PRO 1050/1050e/1050P/1050eP 15-43...
Page 467 Setting Up System V Release 4 and Solaris 2.X to Use lpd If your system recognizes the LPSYSTEM command, you do not need to in- stall the dedicated utility, Konica Minolta's host-side software. Another op- tion is the admintool if your system supports it.
Page 468: 15.5.1 Cups Printing On Linux
Another is to use Web interface of CUPS system. To execute CUPS commands printername device-uri model lpadmin -p -E -v [ENTER] printername : printer name device-uni : describe device URI as below. <HTTP device> http://IP-Address:631/ipp <IPP device> ipp://IP-Address/ipp <LPD device> lpd://IP-Address/PORT1 <Socket device> socket://IP-Address:port-number bizhub PRO 1050/1050e/1050P/1050eP 15-45...
Page 469 -d printername /usr/share/cups/data/testprint.ps [ENTER] To use Web interface of CUPS system Enter “http://localhost:631/printers” on Web browser. And, click [Add Printer]. After making printer, click [test print]. For more details, refer to the following site. http://www.cups.org/ bizhub PRO 1050/1050e/1050P/1050eP 15-46...
Page 470: Glossary
Setting which has been selected in advance when the power button is turned ON. Or, setting which has been selected in advance when some function is turned ON. Density Quantity to express the depth of image. bizhub PRO 1050/1050e/1050P/1050eP 16-1...
Page 471 Not only connecting, it converts the for- mat, address, protocol, etc. of the data according to the network to be connected. Gradation Light and shade levels of image. Larger numbers can reproduce changes of density more smoothly. bizhub PRO 1050/1050e/1050P/1050eP 16-2...
Page 472 Abbreviation of Local Area Network. A network con- necting computers on the same floor, in the same building, in the buildings nearby, etc. Local printer A printer connected to the parallel/USB port of a computer. bizhub PRO 1050/1050e/1050P/1050eP 16-3...
Page 473 PostScript which can be accessed using Adobe Acrobat Reader, software free of charge. Abbreviation of Page Description Language. Lan- guage which can specify the printing image in the unit of page to the printer when printing with a page printer. bizhub PRO 1050/1050e/1050P/1050eP 16-4...
Page 474 Attribute information of a file can be checked with the property of the file. Protocol Rules by which a computer communicates with oth- er computer or peripheral device. Queue name Logical printer name required for LPD/LPR printing. bizhub PRO 1050/1050e/1050P/1050eP 16-5...
Page 475 One of the file formats to save image data (extension; .tif). Various types of image information can be saved in one image data with the “tag” representing the data type. Trimming Cutting off unnecessary portions of the image and change the rectangular or size. bizhub PRO 1050/1050e/1050P/1050eP 16-6...
Page 476 Uninstall To delete installed software. Abbreviation of Universal Serial Bus. General-use interface standard for connecting a computer and a mouse, printer, etc. Web browser Software to access web pages. Internet Explorer, Netscape Navigator, etc. are examples. bizhub PRO 1050/1050e/1050P/1050eP 16-7...
Page 477: Index
Image Rotation ......10-64 PI Cover Sheet ....... 8-34 Image Shift ... 10-47 11-31 12-19 PI Front Cover ........ 9-30 Installable Option ......9-15 Poster ........... 10-27 Installer ..........3-1 PostScript ........ 4-2 PostScript3 ........2-3 bizhub PRO 1050/1050e/1050P/1050eP 16-8...
Page 478 Tab Paper Settings ......8-38 Test Page Print ......4-25 Transparency Interleave ....8-21 9-30 10-23 11-33 Trim ..........8-42 Trimmer .......... 8-13 Troubleshooting ......13-1 Wait Mode ..8-29 9-36 10-34 11-38 12-33 Watermark ..... 8-54 10-66 11-13 Zoom ..........8-18 bizhub PRO 1050/1050e/1050P/1050eP 16-9...
