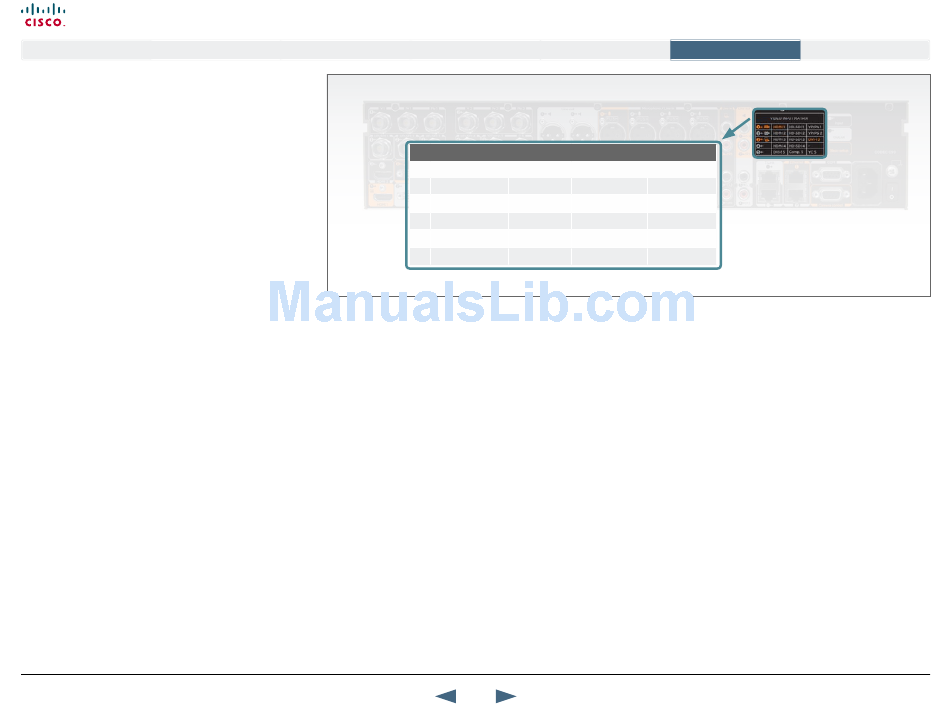

The video input matrix

The video input matrix is found at the rear side of the codec and
illustrates the combinations in which the video inputs can be
connected.

About the matrix

Only one video input source from each row can be active at any
time. The basic setup connectors are marked in bold.
The numbers in the left column represents the Video Input
Sources 1–5. The main connectors, which are used in basic
setup, are marked in orange color.
The Comp. 5 and S-Video (YC) 5 inputs uses the same physical
connectors and can not be connected at the same time.

Configuring the video inputs

Go to Advanced configuration (menu on screen or web
interface) to configure the video inputs.
Navigate to Advanced configuration > Video > Input > Source
[1–5] and configure the five video input sources.
• Name: "" (enter a name, and save)
• Connector: <HDMI/HDSDI/DVI/YC/Composite/YPbPr> (each
input source's value space is a subset of this)
• Quality: <Motion/Sharpness>
Navigate to Advanced configuration > Video. Configure the main
video source and the default presentation source for the system.
The values <1..5> represents the video input sources [1–5].
• MainVideoSource: <1..5>
• DefaultPresentationSource: <1..5>
D14635.0 6 Profile C90 and Codec C90 Administrator Guide TC4.2, July 2011.
Copyright © 2010-2011 Cisco Systems, Inc. All rights reserved.
Web interface Advanced settings
Input Sources
1 1st Camera
2nd Camera
2
3 PC
4
5

Default configurations

• Video Input Source 1 Name: "Main Camera"
• Video Input Source 2 Name: "Secondary Camera"
• Video Input Source 3 Name: "PC"
• Video Input Source 4 Name: "DVD"
• Video Input Source 5 Name: "Document Camera"
• Video Input Source 1 Connector: HDMI
• Video Input Source 2 Connector: HDMI
• Video Input Source 3 Connector: DVI
• Video Input Source 4 Connector: HDMI
• Video Input Source 5 Connector: DVI
• Video Input Source 1 Quality: Motion
• Video Input Source 2 Quality: Motion
• Video Input Source 3 Quality: Sharpness
• Video Input Source 4 Quality: Motion
• Video Input Source 5 Quality: Sharpness
• Video MainVideoSource: 1 (which is the main camera)
• Video DefaultPresentationSource: 3 (which is the PC)
