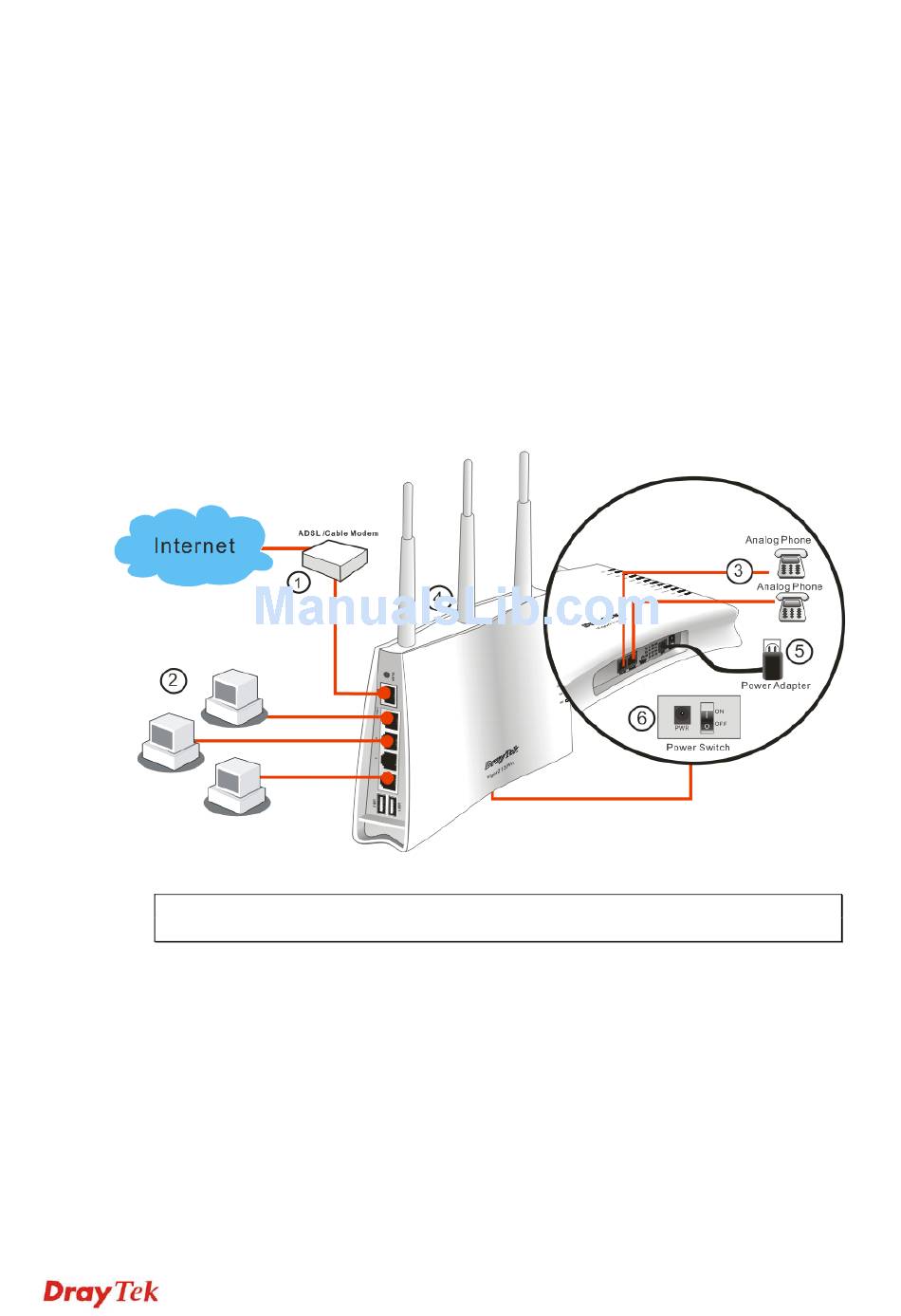

Before starting to configure the router, you have to connect your devices correctly.
1. Connect this device to a modem with a RJ-45 cable.
2. Connect one port of 4-port switch to your computer with a RJ-45 cable. This device
allows you to connect 4 PCs directly.
3. Connect Phone port to a conventional analog telephone.
4. Connect detachable antennas to the router for Vigor2130 series (n model).
5. Connect one end of the power cord to the power port of this device. Connect the other
end to the wall outlet of electricity.
6. Power on the router.
7. Check the ACT and WAN, LAN LEDs to assure network connections.
(For the detailed information of LED status, please refer to section 1.1.)
Caution: Each of the Phone ports can be connected to an analog phone only. Do not
connect the phone ports to the land line jack. Such connection might damage your router.
