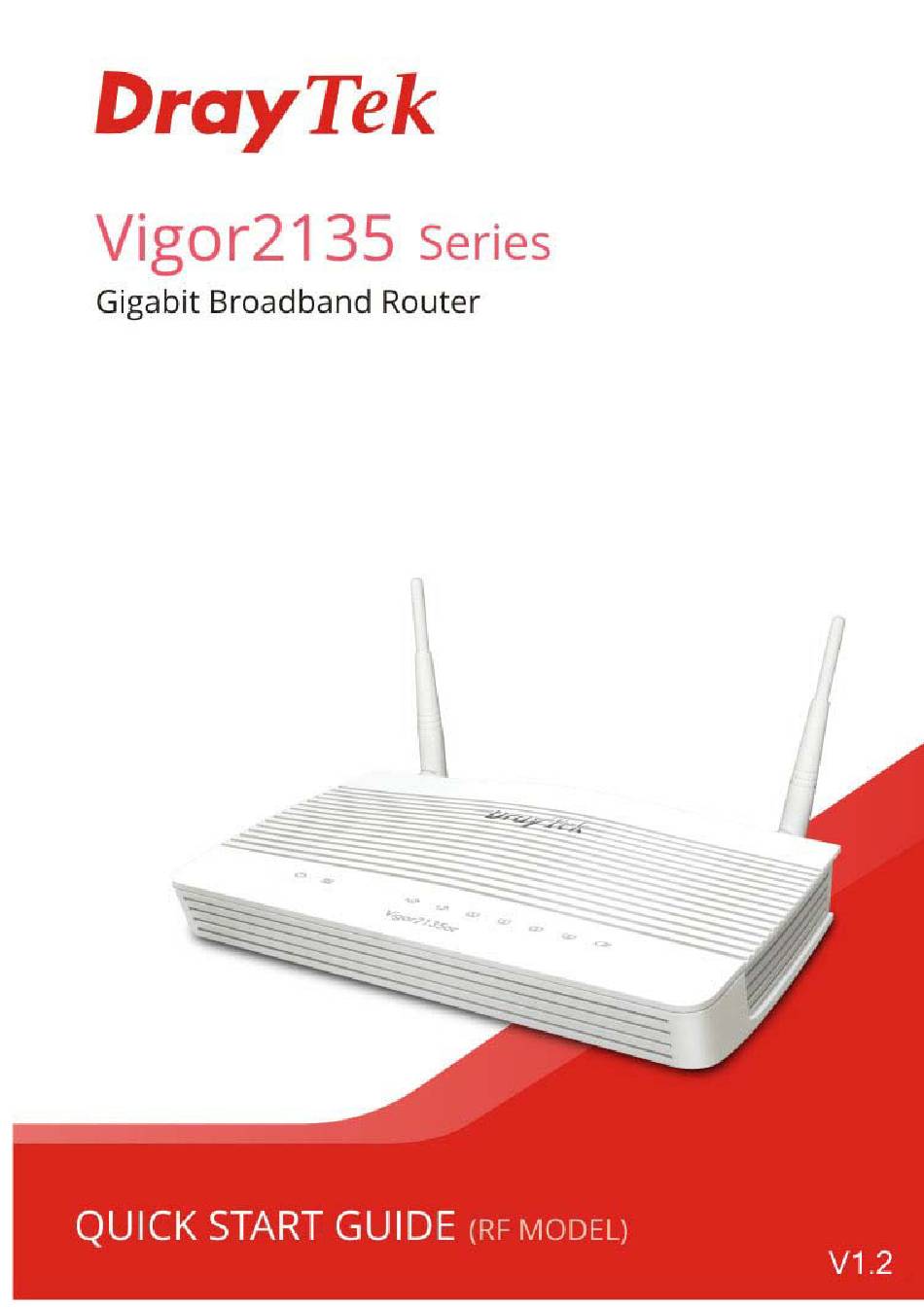

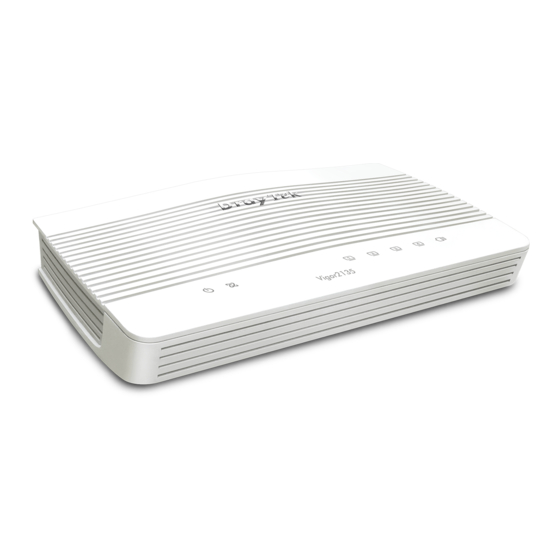

- Page 2 Vigor2135 Series Gigabit Broadband Router Quick Start Guide (for RF Model) Version: 1.2 Firmware Version: V4.4.2 (For future update, please visit DrayTek web site) Date: October 26, 2022...
- Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
- Page 4 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2135 series router is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: https://fw.draytek.com.tw/Vigor2135/Document/CE/ Manufacturer: DrayTek Corp.
- Page 5 86.2% 87.6% 87.8% 89.8% 83.7% 85.4% 88.6% 88.2% efficiency Efficiency at low load 73.6% 78.0% 81.3% 83.3% 83.7% 74.5% 80.5% 86.4% 85.4% No-load power 0.07W 0.07W 0.07W 0.07W 0.07W 0.07W 0.10W 0.07W 0.10W consumption For more update, please visit www.draytek.com.
- Page 6 Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 7: Table Of Contents
1. Package Content ....................1 2. Panel Explanation....................2 2.1 Vigor2135ac, Vigor2135Vac, Vigor2135FVac ................2 2.2 Vigor2135ax ..........................5 3. Hardware Installation ................... 7 3.1 Network Connection for ac series ....................7 3.2 Network Connection for ax series ....................8 3.3 Wall-Mounted Installation for ac series .................. -
Page 8: Package Content
Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor2135ac series Vigor2135ax RJ-45 Cat-5 Ethernet Cable Antenna (for Vigor2135ac series) & Quick Start Guide The type of the power adapter depends on the country that the router will be installed. -
Page 9: Panel Explanation
Status Explanation Blinking The router is powered on and running normally. Blinking When both ACT and WLAN LEDs blink quickly, it (Activity) means the WPS function is enabled and active. The (quickly) system is waiting for a wireless station of connection. - Page 10 Interface Description Wireless LAN WLAN On - Press the button and release it within 2 seconds. When ON/OFF/WPS the wireless function is ready, the green LED will be on. WLAN Off - Press the button and release it within 2 seconds to turn off the WLAN function.
- Page 11 Connector for remote networked devices (by Ethernet cable). WAN (FVac) Connector for fiber connection for accessing the Internet. Phone2/Phone1 Connector of analog phone for VoIP communication. (for “V” model) ON/OFF Power switch. Connector for a power adapter.
-
Page 12: Vigor2135Ax
Status Explanation The system is not ready or is failed. Blinking The system is ready and can work normally. Blinking with WLAN WPS is enabled and waiting for the response from the wireless client. Internet connection is ready. Blinking The data is transmitting. Internet connection is not ready. - Page 13 Interface Description Wireless band will be switched /changed according to the button pressed and released. For example, 2.4G (On) and 5G (On) – in default. 2.4G (Off) and 5G (On) – pressed and released the button once. WLAN ...
-
Page 14: Hardware Installation
This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Here we take Vigor2135ac as an example. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45). -
Page 15: Network Connection For Ax Series
Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45). Connect one port of 4-port switch to your computer with a RJ-45 cable. This device allows you to connect 4 PCs directly. Connect one end of the power cord to the power port of this device. Connect the other end to the wall outlet of electricity. -
Page 16: Wall-Mounted Installation For Ac Series
Vigor2135 series has keyhole type mounting slots on the underside. Drill two holes on the wall. The distance between the holes shall be 168mm. Fit screws into the wall using the appropriate type of wall plug. With the screws installed, the router can be slotted into place. -
Page 17: Wall-Mounted Installation For Ax Series
Vigor router has keyhole type mounting slots on the underside. Drill two holes on the wall. The distance between the holes shall be 100.75mm. The recommended drill diameter shall be 6.5mm (1/4”). Fit screws into the wall using the appropriate type of screw plug. Hang the Vigor router directly onto the screws. -
Page 18: Software Configuration
To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly. - Page 19 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. Enter the login password on the field of New Password and retype it on the field of Confirm Password.
- Page 20 On the next page as shown below, please select the WAN interface that you use and click Next. If Ethernet interface is used, please choose WAN1; if 3G USB modem is used, please choose WAN3. Then click Next for next step. On the next page as shown below, please select the appropriate protocol according to the information from your ISP.
- Page 21 PPPoE: If you click PPPoE as the protocol, after clicking Next, you will get the following web page. Please manually enter the Username/Password provided by your ISP. Then click Next. PPTP/L2TP: if you click PPTP/L2TP, you will get the following page. Please type in all the information originally provided by your ISP.
- Page 22 Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP. Then click Next for next step. DHCP: if you click DHCP, you will get the following page. Simply click Next to continue.
-
Page 24: Customer Service
If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Be a Registered Owner Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com.
