Draytek Vigor2122 Series Quick Start Manual

Draytek Vigor2122 Series Quick Start Manual

Dual band security firewall
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
i

Advertisement

Table of Contents
loading

Related Manuals for Draytek Vigor2122 Series

Summary of Contents for Draytek Vigor2122 Series

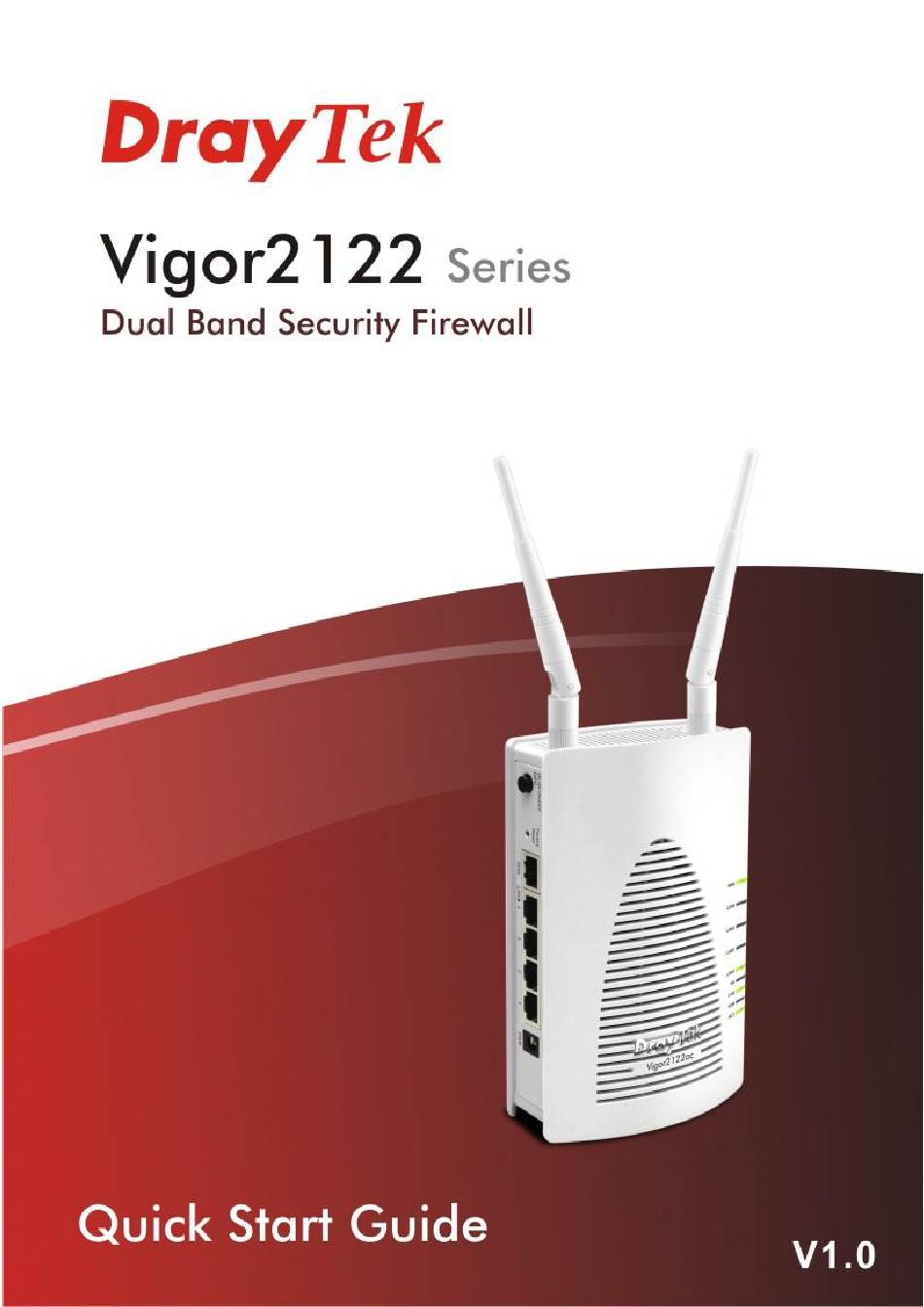

  • Page 2 Vigor2122 Series Dual Band Security Firewall Quick Start Guide Version:1.0 Firmware Version: V3.8.9_RC1 (For future update, please visit DrayTek web site) Date: May 30, 2018...
  • Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
  • Page 4 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2122 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.draytek.com.tw/ftp/Vigor2122/Document/CE/ Manufacturer: DrayTek Corp. Address: No.

  • Page 5: Table Of Contents

    1. Introduction ......................1 2. Package Content ....................2 3. Panel Explanation ....................3 3.1 Vigor2122 ........................... 3 3.2 Vigor2122ac ..........................5 4. Hardware Installation ................... 7 4.1 Network Connection ........................7 5. Software Configuration ..................8 6. Customer Service ....................18 Be a Registered Owner ........................

  • Page 6: Introduction

    Vigor2122 series is a broadband router which integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router increases the performance of VPN greatly and offers several protocols (such as IPSec/PPTP/L2TP) with up to 2 VPN tunnels.

  • Page 7: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor Router Quick Start Guide RJ-45 Cat-5 Ethernet Cable Antenna x 2 (for “ac” model) The type of the power adapter depends on the country that the router will be installed.

  • Page 8: Panel Explanation

    Status Explanation Blinking The router is powered on and running normally. The router is powered off. USB device is connected and ready for use. Blinking The data is transmitting. The VPN tunnel is active. VPN service is disabled. Blinking Traffic is passing through VPN tunnel. The Web Content Filter is active.
  • Page 9 Interface Description Restore the default settings. Usage: Turn on the router. Press the button and keep for more than 6 seconds. Then the router will restart with the factory default configuration. Factory Reset Connector for accessing the Internet. LAN 1- 4 Connecters for local network devices (LAN).

  • Page 10: Vigor2122Ac

    Status Explanation Blinking The router is powered on and running normally. The router is powered off. USB device is connected and ready for use. Blinking The data is transmitting. 2.4G Wireless function is ready. Wireless function is not ready. Blinking Data is transmitting (sending/receiving).
  • Page 11 Interface Description WLAN ON/OFF WLAN On - Press the button and release it within 2 seconds. When the wireless function is ready, the 2.4G/5G blue LED on front panel will be on. WLAN Off - Press the button and release it within 2 seconds to turn off the WLAN function.

  • Page 12: Hardware Installation

    This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router (taking Vigor2122n for example), you have to connect your devices correctly. Connect the cable Modem/DSL Modem/Media Converter to the WAN port of this router with Ethernet cable (RJ-45).

  • Page 13: Software Configuration

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly.
  • Page 14 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. Enter the login password on the field of New Password and retype it on the field of Confirm Password.
  • Page 15 On the next page as shown below, please select the WAN interface that you use. If Ethernet interface is used, please choose WAN1; if 3G USB modem is used, please choose WAN2. Then click Next for next step. WAN1 and WAN2 will bring up different configuration page. Refer to the following for detailed information Here we take WAN1 (Ethernet) as an example.
  • Page 16 Click PPPoE as the Internet Access Type. Then click Next to get the following page. Manually enter the Username/Password provided by your ISP. Click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.
  • Page 17 Choose WAN1 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click PPTP/L2TP as the Internet Access Type. Then click Next to continue.
  • Page 18 Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 19 Choose WAN1 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click Static IP as the Internet Access type. Simply click Next to continue.
  • Page 20 Please type in the IP address information originally provided by your ISP. Then click Next for next step. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 21 Choose WAN1/WAN2 as WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click DHCP as the Internet Access type. Simply click Next to continue.
  • Page 22 After finished the settings above, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.

  • Page 23: Customer Service

    If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Web registration is preferred. You can register your Vigor router via http://www.draytek.com.

This manual is also suitable for:

Vigor2122ac
