Draytek Vigor2760Vn Quick Start Manual page 19

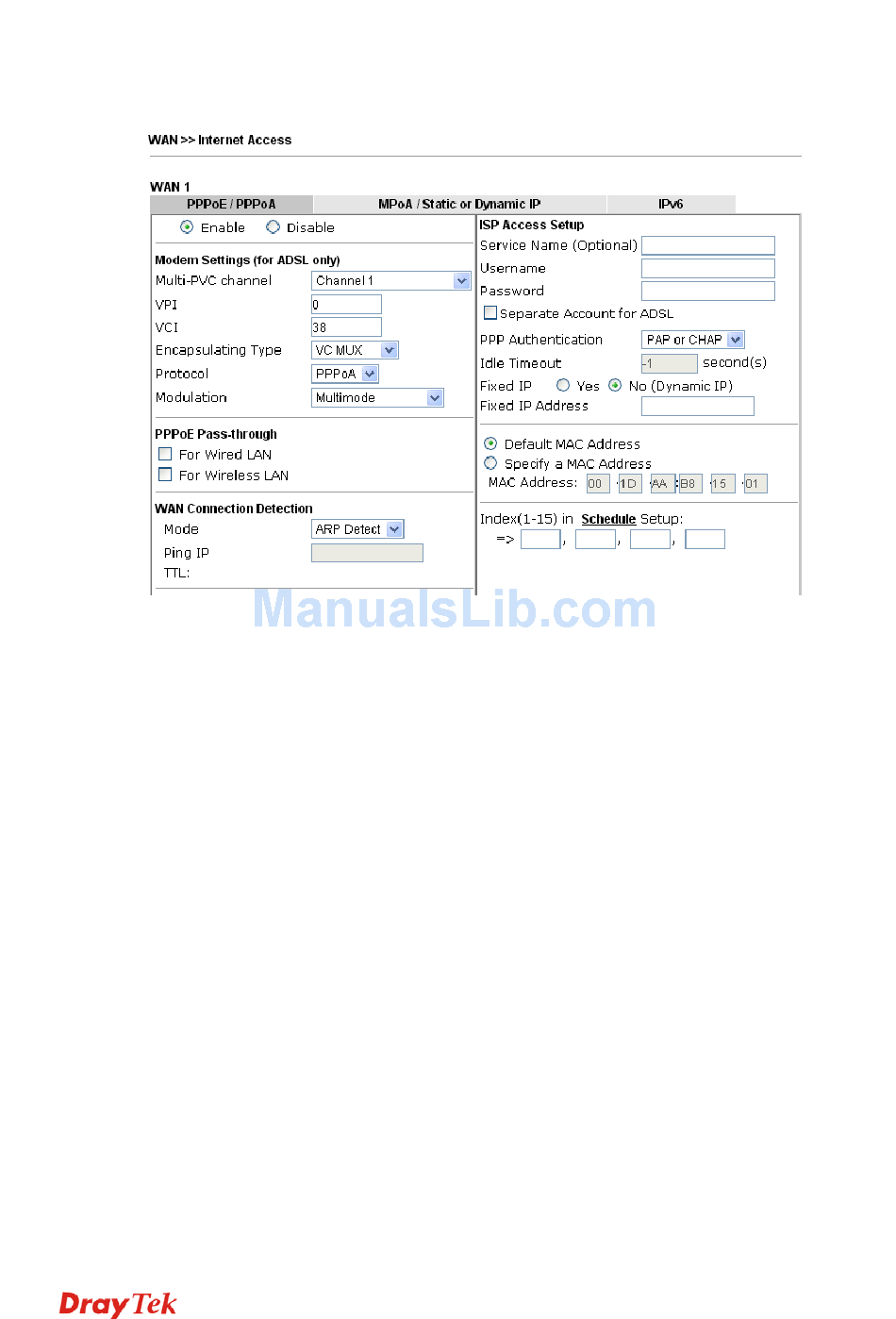

5. Click the Details Page button for WAN1. Depending on your your ISP,
click either the PPPoE/PPPoA, MPoA/Static or Dynamic tab:
6. The PPPoE/PPPoA tab and the default settings are appropriate for
nearly all ISPs in the UK.
7. Users in Ireland may have different settings requirements. For
VDSL/FTTC users may need a VLAN tag of 10 (see point 2 above) and
for ADSL, use PPPoE/LLC with VPI/VCI settings of 8 and 35 (check
with your ISP for the latest settings).
8. Sky Broadband is one ISP which does vary; it may use the DHCP
method and require setting of the DHCP Option parameters; please refer
to specific help guides if you are using Sky (or former O2/Be).
9. Enter the ISP's name and username/password in the boxes shown at the
top right of the above image.
10. Click OK to save. The router will restart to activate the settings and you
should then be online to the Internet.
Vigor2760 Series Quick Start Guide
11
