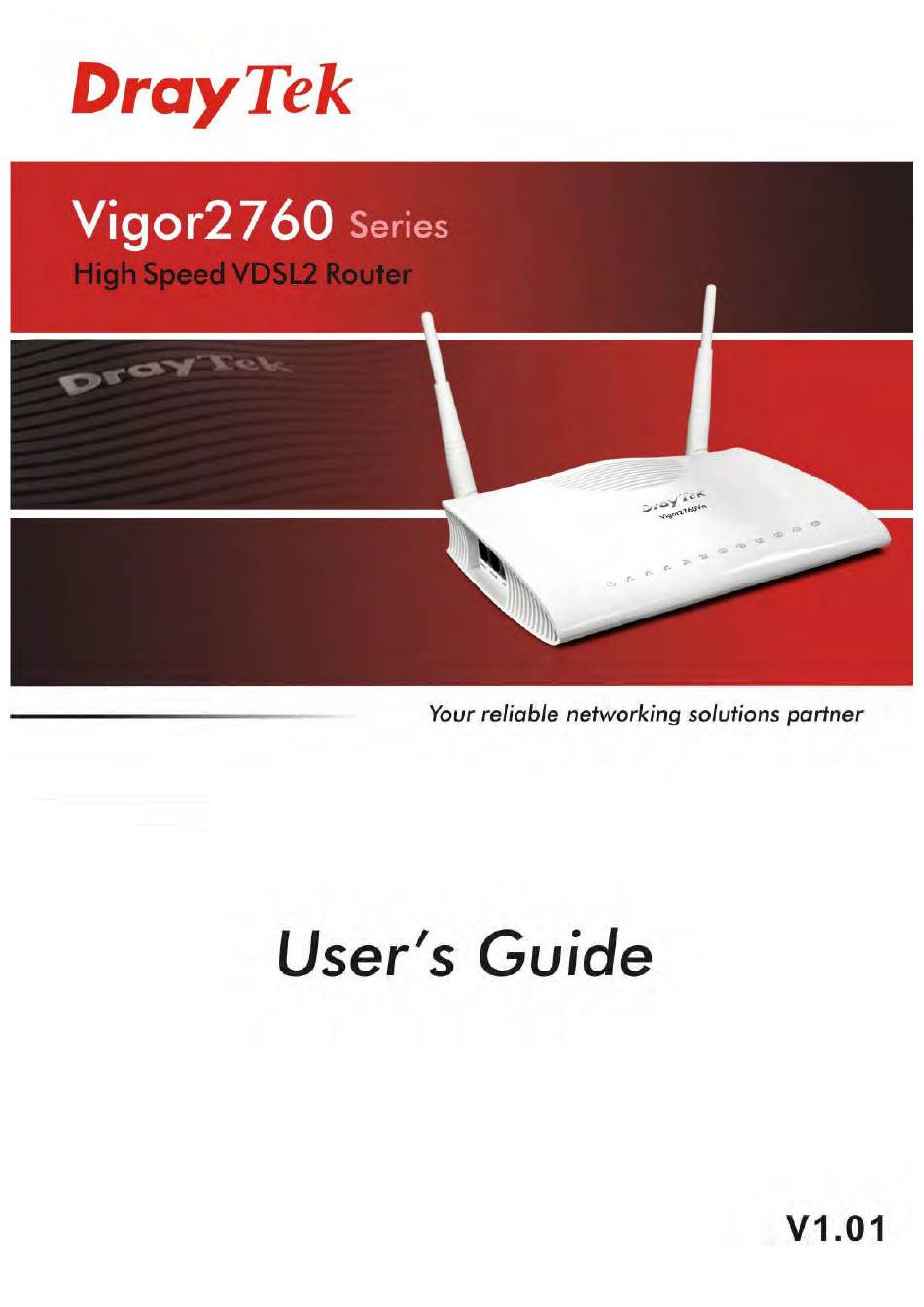

- Page 2 Vigor2760 Series User’s Guide...
- Page 3 Date: May 12, 2014 Note: The product specification is subject to continuous evolution which may not always be reflected in current documentation. For the formal and supported current specification, please refer only to the web site at www.draytek.co.uk Vigor2760 Series User’s Guide...
- Page 4 Users in the UK/Ireland are recommended to sign up to a users’ newsletter for news, updates, hits & tips and offers. See www.draytek.co.uk/mailing-list Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
- Page 5 Product: Vigor2760 Series Router DrayTek Corp. declares that Vigor2760 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
- Page 6 Vigor2760 Series User’s Guide...
- Page 7 3.1.1 Basics of Internet Protocol (IP) Network............35 3.1.2 General Setup....................37 3.1.3 Internet Access ....................42 3.1.4 Multi-PVC......................69 3.2 LAN ..........................75 3.2.1 Basics of LAN ....................75 3.2.2 General Setup....................77 3.2.3 VLAN....................... 84 Vigor2760 Series User’s Guide...
- Page 8 3.9 VPN and Remote Access ..................191 3.9.1 LAN to LAN ....................191 3.9.2 Connection Management................197 3.10 Certificate Management..................198 3.10.1 Local Certificate ..................198 3.10.2 Trusted CA Certificate ................200 3.10.3 Certificate Backup..................201 3.11 VoIP......................... 202 Vigor2760 Series User’s Guide viii...
- Page 9 3.15.8 Data Flow Monitor..................280 3.15.9 Traffic Graph ....................282 3.15.10 Trace Route ....................283 3.15.11 Syslog Explorer..................284 3.15.12 IPv6 TSPC Status..................286 Tutorials and Applications...............287 4.1 How to configure settings for IPv6 Service in Vigor2760.......... 287 Vigor2760 Series User’s Guide...
- Page 10 5.4 Checking if the ISP Settings are OK................. 342 5.5 Problems with 3G/4G Network Connection ............342 5.6 Backing to Factory Default Setting If Necessary ............343 5.7 Getting further help ....................344 5.8 Keep up to date......................345 5.9 Firmware Updates ....................345 Vigor2760 Series User’s Guide...

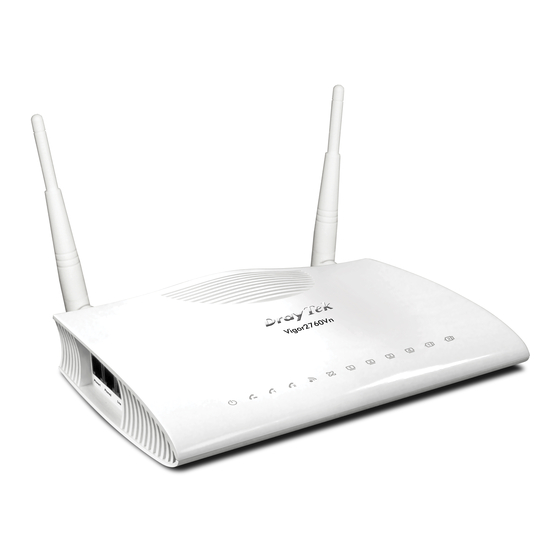

- Page 11 Vigor2760 series is a VDSL2 and ADSL2+ router, alternatively supporting Ethernet-Based Internet WAN connections (‘Delight’ edition onwards). It integrates QoS, NAT session/bandwidth management to help users control works well with large bandwidth. With good performance and secured broadband connectivity provided by Vigor 2760 series, you can simultaneously engage these bandwidth-intensive applications, such as high-definition video streaming, online gaming, and Internet telephony / access.
- Page 12 UPnP IGMP proxy & snooping Wake on LAN Bonjour Printer Sharing FTP Server for File Sharing by a USB Memory (FAT32) Web Syslog System Maintenance HTTP/HTTPS User Interface Vigor2760 Series User’s Guide...
- Page 13 CLIR (Calling Line Identification Restriction) Call Forwarding (Always, Busy and No Answer) Call Barring (Incoming / Outgoing) Hotline DND (Do Not Disturb) Call Transfer MWI (Message Waiting Indicator) (RFC-3842) Vigor2760 Series User’s Guide...
- Page 14 (Ethernet) Use only the supplied PSU suitable for your country. If you lose it, obtain an original replacement only from a DrayTek dealer. Using unapproved accessories can damage your unit and invalidates your warranty. UK-type Power Adapter For the Vigor 2760Vn model, you will additionally have two RJ11-BT adaptors (to plug in phones) and an RJ11-BT plug cable, for connecting to the analogue phone line for voice calls.
- Page 15 The DSL port is connected. Blinking The router is ready. DSL (Green) (Slowly) Blinking The connection is training. (Quickly) On (Green) The port is connected. Blinking The data is transmitting. LAN1/2/3/4 (Green) A USB device is connected and active. USB1/2 Vigor2760 Series User’s Guide...
- Page 16 Connector for USB storage device, printer or 3G/4G modem (WAN3) LAN (1-4) RJ-45 Gigabit Ethernet connectors for local network devices. When WAN2 is enabled, LAN Port 4 becomes WAN2 (Ethernet) and WAN1 Or WAN2 (RJ11) is disabled. Vigor2760 Series User’s Guide...
- Page 17 The router is ready. DSL (Green) (Slowly) Blinking The router is trying to connect to Internet. (Quickly) The port is connected. Blinking The data is transmitting. LAN1/2/3/4 (Green) A USB device is connected and active. USB1/2 Vigor2760 Series User’s Guide...
- Page 18 Connector for USB storage device, printer or 3G/4G modem (WAN3) LAN (1-4) RJ-45 Gigabit Ethernet connectors for local network devices. When WAN2 is enabled, LAN Port 4 becomes WAN2 (Ethernet) and WAN1 (or WAN2) (RJ11) is disabled. Vigor2760 Series User’s Guide...
- Page 19 The router is ready. DSL (Green) (Slowly) Blinking The router is trying to connect to Internet. (Quickly) The port is connected. Blinking The data is transmitting. LAN1/2/3/4 (Green) A USB device is connected and active. USB1/2 Vigor2760 Series User’s Guide...
- Page 20 RJ-45 (Gigabit Ethernet) connectors for local network devices. When WAN2 is enabled, LAN Port 4 becomes WAN2 (Ethernet) and WAN1 (or WAN2) (RJ11) is disabled. Interface Description LINE Connector for PSTN life line. Phone1/Phone2 Connector of analog phone for VoIP communication. Vigor2760 Series User’s Guide...
