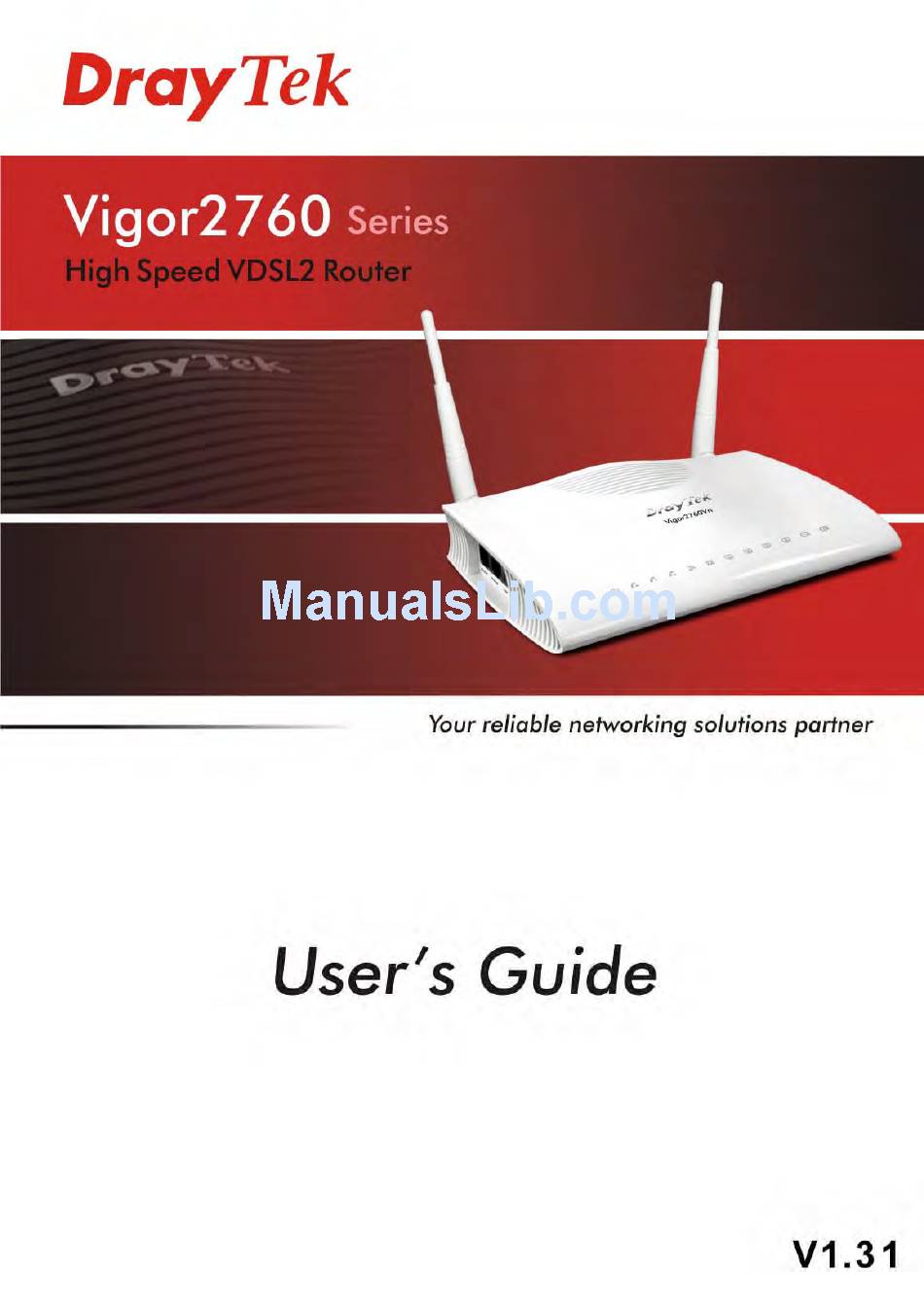

Page 2 Vigor2760 Series High Speed VDSL2 Router User’s Guide Version: 1.31 Firmware Version: V1.2.1.1 (for Linux platform) (For future update, please visit DrayTek web site) Date: August 15, 2014 Vigor2760 Series User’s Guide...
Page 3: Copyright Information
Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
Page 4: European Community Declarations
Product: Vigor2760 Series Router DrayTek Corp. declares that Vigor2760 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
Page 5: Table Of Contents
Introduction ......................1 1.1 Web Configuration Buttons Explanation ................. 2 1.2 LED Indicators and Connectors ....................3 1.1.1 For Vigor2760 ........................3 1.1.2 For Vigor2760n ......................... 5 1.1.3 For Vigor2760Vn....................... 7 1.3 Hardware Installation ......................9 1.4 Printer Installation ......................... 10 Initial Configuration ...................19...
Page 6 4.4.1 Address......................... 148 4.4.1.1 Address Object ....................148 4.4.1.2 Address Group....................152 4.4.2 Service Type......................... 154 4.4.2.1 Service Type Object ..................154 4.4.2.2 Service Type Group................... 157 4.4.3 Keyword ........................159 4.4.3.1 Keyword Object ....................159 Vigor2760 Series User’s Guide...
Page 7 4.9.2.3 Advanced......................235 4.9.3 UPnP..........................236 4.9.4 IGMP..........................238 4.9.5 Wake on LAN........................ 239 4.10 USB Applications....................... 241 4.10.1 USB Status ......................... 242 4.10.1.1 Disk Status....................... 242 4.10.1.2 Printer Status ....................242 4.10.2 SAMBA ........................243 Vigor2760 Series User’s Guide...
Page 8 4.14.3.2 DHCPv6 Table....................299 4.14.4 Data Flow Monitor....................... 300 4.14.5 System Table......................302 4.14.6 Traffic Graph....................... 305 4.14.7 Web Syslog......................... 306 Trouble Shooting ....................307 5.1 Checking If the Hardware Status Is OK or Not..............307 Vigor2760 Series User’s Guide viii...
Page 9 5.3.2 For Mac OS (Terminal) ..................311 5.4 Checking If the ISP Settings are OK or Not ................ 312 5.5 Backing to Factory Default Setting If Necessary ..............313 Software Reset ......................313 Hardware Reset......................313 5.6 Contacting DrayTek......................314 Vigor2760 Series User’s Guide...
Page 11: Introduction
The Vigor2760 series are the routers with high speed in data transmission through DSL port and LAN ports. With the development of NGN (Next Generation Network), you may recently hear the news about FTTx deployment in your local area or even have already subscribed the unbundling last mile service (e.g.
Page 12: Web Configuration Buttons Explanation
Add new settings for specified item. Edit the settings for the selected item. Delete the selected item with the corresponding settings. Note: For the other buttons shown on the web pages, please refer to Chapter 4 for detailed explanation. Vigor2760 Series User’s Guide...
Page 13: Led Indicators And Connectors
The DSL port is connected. Blinking The router is ready. DSL (Green) (Slowly) Blinking The connection is training. (Quickly) On (Green) The port is connected. Blinking The data is transmitting. LAN1/2/3/4 (Green) A USB device is connected and active. USB1/2 Vigor2760 Series User’s Guide...
Page 14 Then the router will restart with the factory default configuration. VDSL/ADSL Connector for accessing the Internet. USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. LAN (1-4) Connectors for local network devices. Vigor2760 Series User’s Guide...
Page 15: For Vigor2760N
The router is ready. DSL (Green) (Slowly) Blinking The router is trying to connect to Internet. (Quickly) The port is connected. Blinking The data is transmitting. LAN1/2/3/4 (Green) A USB device is connected and active. USB1/2 Vigor2760 Series User’s Guide...
Page 16 WLAN ON/OFF - Press the button once to enable (WLAN LED on) or disable (WLAN LED off) wireless connection. VDSL/ADSL Connector for accessing the Internet. USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. LAN (1-4) Connectors for local network devices. Vigor2760 Series User’s Guide...
Page 17: For Vigor2760Vn
The router is ready. DSL (Green) (Slowly) Blinking The router is trying to connect to Internet. (Quickly) The port is connected. Blinking The data is transmitting. LAN1/2/3/4 (Green) A USB device is connected and active. USB1/2 Vigor2760 Series User’s Guide...
Page 18 Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. LAN (1-4) Connectors for local network devices. Interface Description LINE Connector for PSTN life line. Phone1/Phone2 Connector of analog phone for VoIP communication. Vigor2760 Series User’s Guide...
Page 19: Hardware Installation
Connect Phone port to a conventional analog telephone (for V model only). Connect detachable antennas to the router for Vigor2760 series (for n model only). Connect one end of the power cord to the power port of this device. Connect the other end to the wall outlet of electricity.
Page 20: Printer Installation
You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows 7. For installation on other Windows systems, please visit www.DrayTek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients).
Page 21 A dialog will appear. Click Add a local printer and click Next. In this dialog, choose Create a new port. In the field of Type of port, use the drop down list to select Standard TCP/IP Port. Then, click Next. Vigor2760 Series User’s Guide...
Page 22 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Hostname or IP Address and type 192.168.1.1 as the Port name. Then, click Next. Click Standard and choose Generic Network Card. Vigor2760 Series User’s Guide...
Page 23 Now, your system will ask you to choose right name of the printer that you installed onto the router. Such step can make correct driver loaded onto your PC. When you finish the selection, click Next. Type a name for the chosen printer. Click Next. Vigor2760 Series User’s Guide...
Page 24 10. Choose Do not share this printer and click Next. 11. Then, in the following dialog, click Finish. Vigor2760 Series User’s Guide...
Page 25 12. The new printer has been added and displayed under Printers and Faxes. Click the new printer icon and click Printer server properties. 13. Edit the property of the new printer you have added by clicking Configure Port. Vigor2760 Series User’s Guide...
Page 26 14. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and LPR name. The printer can be used for printing now. Most of the printers with different manufacturers are compatible with vigor router. Vigor2760 Series User’s Guide...
Page 27 Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ/Application Notes; find out the link of USB>>Printer Server and click it.
Page 28 This page is left blank. Vigor2760 Series User’s Guide...
Page 29: Initial Configuration
Please type “admin/admin” on Username/Password and click Login for opening the web user interface. Notice: If you fail to access to the web configuration, please go to “Trouble Shooting” for detecting and solving your problem. Vigor2760 Series User’s Guide...
Page 30: Quick Start Wizard For Connecting Internet
The home page will change slightly in accordance with the router you have. Here we take Vigor2760Vn as an example. Click Wizard >>Quick Start Wizard (or click the Quick Start Wizard link on the quick bar on the top). Vigor2760 Series User’s Guide...
Page 31 Type the router name and choose the time zone for the router located. Choose the WAN type according to the physical connection. Each type will lead different setting pages. Then, click the Next button for next page. Vigor2760 Series User’s Guide...
Page 32 IPv6 – You have to type IP address based on IPv6. Choose the DSL type for your Vigor router. DSL Type DSL Protocol Such feature differs according to the DSL type selected above. For Both /ADSL, the available settings are: For VDSL2, the available settings are: Vigor2760 Series User’s Guide...
Page 33 Confirm Password - Type the password again for confirmation. VLAN Encapsulation – It is available for PPPoE only. It is used to enable the function of VLAN with tag. The router will add specific VLAN number to all packets while sending Vigor2760 Series User’s Guide...
Page 34 A virtual channel is a logical connection between two end devices on the network. Encapsulation – Choose a proper type for this channel. The types will be different according to the protocol setting that you choose. Vigor2760 Series User’s Guide...
Page 35 The ATM, is a method of sending data in small packets of fixed sizes. It is used for transferring data to client computers. VCI - Stands for Virtual Channel Identifier. It is a 16-bit field inside ATM cell’s header that indicates the cell’s next Vigor2760 Series User’s Guide...
Page 36 The format of the IP address (IPv4 or IPv6) you can type IPv6 Settings depends on the IP Version selected on STEP1. IP Address - Type the IP address. Subnet Mask - Type the subnet mask. Gateway - Type the gateway IP address. Vigor2760 Series User’s Guide...
Page 37 Password - It is available for PPPoE/PPPoA only. Assign a valid password provided by the ISP. Confirm Password - Type the password again for confirmation. VLAN Encapsulation – It is available for PPPoE only. It is Vigor2760 Series User’s Guide...
Page 38 Static IP: if you click Static IP, you will get the following page. Please type in the IP address information and type the values for ADSL settings (it can be ignored if VDSL service is offered) originally provided by your ISP. Then click Finish to complete the configuration. Vigor2760 Series User’s Guide...
Page 39 The format of the IP address (IPv4 or IPv6) you can type IPv6 Settings depends on the IP Version selected on STEP1. IP Address - Type the IP address. Subnet Mask - Type the subnet mask. Gateway - Type the gateway IP address. Vigor2760 Series User’s Guide...
Page 40 When you click Finish to complete the configuration, the system will display a summary screen for you to confirm. Simply click Confirm. Later, the Dashboard screen will appear. You can enjoy surfing on the Internet. Vigor2760 Series User’s Guide...
Page 41: Activation Wizard For Wcf Service
Activation Wizard is a tool which allows you to use trial version or update the license of WCF directly without accessing into the server (MyVigor) located on http://myvigor.draytek.com. For using Web Content Filter Profile, please refer to later section Web Content Filter Profile for detailed information.
Page 42 When you finish the selection, please click Next. Commtouch is the web content filter based on Commtouch operated in the worldwide. There is a 30-day trial period. After trial, you can purchase DrayTek's prepared Commtouch GlobalView WCF package from retailing outlets.
Page 43 Wait for a moment till the following page appears. When such page appears, you can enable or disable these services for your necessity. Then, click Finish. Note: The service will be activated and applied as the default rule configured in Firewall>>Filter Setup. Vigor2760 Series User’s Guide...
Page 44 Now, the web page will display the service that you have activated according to your selection(s). The valid time for the free trial of these services is one month. Vigor2760 Series User’s Guide...
Page 45: Product Registration For Advanced Service
Note: After finished the network connection, you need to register your router first to get more service from DrayTek. In addition, such section should be done before activating WCF service. Make sure the router has been configured and connected to Internet. You can check the WAN status by opening Network>>WAN.
Page 46 The following page will be displayed after you logging in MyVigor. From this page, please click Add or Product Registration. Vigor2760 Series User’s Guide...
Page 47 (it appears when you click on the box of Registration Date). After adding the basic information for the router, please click Submit. When the following page appears, your router information has been added to the database. Vigor2760 Series User’s Guide...
Page 48 After clicking OK, you will see the following page. Your router has been registered to myvigor website successfully. 2.4.1 Supplementation If you have not activated web content filter service by using Activation Wizard, you can activate the service from this section. Please click the serial number link. Vigor2760 Series User’s Guide...
Page 49 From the Device’s Service section, click the Trial button. In the following page, check the box of “I have read and accept the above Agreement”. The system will find out the date for you to activate this version of service. Then, click Next. Vigor2760 Series User’s Guide...
Page 50 When this page appears, click Register. Wait for a moment until the following page appears. Click Close. Vigor2760 Series User’s Guide...
Page 51: Dashboard Introduction
Take a look at the icons on the top-right of each status display area. - Click it to fold / unfold the specified status display area. - Click it to re-display the specified status display area. - Click it to close the specified status display area. Vigor2760 Series User’s Guide...
Page 52: Nameplate
On the top of the Dashboard, a virtual panel (simulating the physical panel of the router) displays the physical interface connection. For detailed information about the LED display, refer to 1.2 LED Indicators and Connectors. Vigor2760 Series User’s Guide...
Page 53: Quick Access For Common Used Menu
Open Dashboard>>Dashboard from the main menu on the left side of the main page. Check the box of CLI CONSOLE from the drop down list under the Dashboard tab. Then, locate the tab of CLI CONSOLE on the Dashboard page to display the CLI CONSOLE Bar. Vigor2760 Series User’s Guide...
Page 54 This page is left blank. Vigor2760 Series User’s Guide...
Page 55: Applications And Tutorials
There are two methods to activate the WCF license.  By means of Service Activation  By means of MyVigor Website Follow the steps below to activate the WCF mechanism: Open Wizard>>Service Activation and click Activate. Vigor2760 Series User’s Guide...
Page 56 I have read and accept…. The Activation Date will be determined automatically by the system. Click Next. Make a confirmation of activating the free trial license or not. If YES, click Next. Vigor2760 Series User’s Guide...
Page 57 Now, the one month free trial of WCF mechanism has been activated correctly. Click Close to return to the web configurator of Vigor router. Open CSM>>Web Content Filter. Click Add to configure new WCF rule for special purpose (e.g., child protection). Vigor2760 Series User’s Guide...
Page 58 (e.g., block porn website). Click Add. 11. In the following web page, check the box of Enable and type block porn as a firewall rule name. Choose block porn website as the Web Content Filter (WCF). Vigor2760 Series User’s Guide...
Page 59 Now, the website with porn information classified by Commtouch can be blocked easily. For example, if you try to access into www.pornhub.com or www.xvideos.com, you will get the following message: However, general website (without porn information) can be accessed normally. Vigor2760 Series User’s Guide...
Page 60: By Means Of Myvigor Website
You will get the following page. Here we take BPjM license as an example. If the trial version has not been activated, you will see a Trial button in this page. Yet, if the trial version has been activated, the Active button will be shown instead. Click Active. Vigor2760 Series User’s Guide...
Page 61 In the following page, check the box of I have read and … and click Next. In the following page, the Activation Date will be displayed automatically. Click Register. Now, the system displays successful activation of the chosen license. Vigor2760 Series User’s Guide...
Page 62 Click Close to return to the web configurator of Vigor router. The license has been activated and displayed on the web page. Vigor2760 Series User’s Guide...
Page 63: How To Make A Voip Phone Call With Vigor Router
The following figure briefly illustrates the way that Jason can use to make a VoIP phone call to his friend, Rudy or Andy. Configuration for the Caller -- Jason Make sure the network connection is OK. Register an SIP account to your SIP proxy. Open VoIP>>SIP Accounts to get the following page. Vigor2760 Series User’s Guide...
Page 64 After finished the above settings, click Apply to save the settings. If the SIP account has been registered successfully, you will see “R” (means registered) appearing under Status on the page. Open VoIP>>Phone Setting and select Phone1. Vigor2760 Series User’s Guide...
Page 65 Click Edit to open the following page. Use the default settings. Choose Jason_iptel (SIP account) as the Default SIP Account. Click Apply to save the settings. Now, Jason can call Rudy or Andy by using the phone connected to Vigor2760. Vigor2760 Series User’s Guide...
Page 66 This page is left blank. Vigor2760 Series User’s Guide...
Page 67: Advanced Web Configuration
Please type “admin/admin” on Username/Password for administration operation. Now, the Main Screen will appear. This menu allows you to configure network settings such as WAN, LAN, NAT, DHCP, Static Route, Dynamic Route, DNS, Failover and Switch. Vigor2760 Series User’s Guide...
Page 68: Wan
Later, if the specified WAN interface is active again, the backup one will disconnect automatically. Note that you have to specify the function of the 3G USB modem to be backup or failover WAN from Network>>Failover. Vigor2760 Series User’s Guide...
Page 69: Several Connection Protocols Used For The Router
The supported 3G USB Modem will be listed on DrayTek web site. Please visit www.draytek.com for more detailed information. PPPoE stands for Point-to-Point Protocol over Ethernet. It relies on two widely accepted standards: PPP and Ethernet. It connects users through an Ethernet to the Internet with a common broadband medium, such as a single DSL line, wireless device or cable modem.
Page 70: Wan Ethernet
IP Version - The type of the IP address is determined by the option selected here.  Both – You have to type IP address based on IPv4 and IPv6 address(es) at the same time.  IPv4 – You have to type IP address based on Vigor2760 Series User’s Guide...
Page 71 IPv6 Setting – It is available when IPv6 is selected as IP Version.  Prefix Length – Type the fixed value for prefix length.  Prefix Send To – Choose the interface (LAN).  Default Route - Check the box to enable the Vigor2760 Series User’s Guide...
Page 72 Code – Choose a number for such function. Type – Choose the type (ASCII or Hex) for the data to be stored. Value – Type the content of the data to be processed by the function of DHCP option. Vigor2760 Series User’s Guide...
Page 73 IP Address – Type an IP address for the protocol.  Subnet Mask –Type a subnet mask value for the protocol.  Gateway – Type an IP address to the gateway for the protocol.  Default Route - Check the box to enable the Vigor2760 Series User’s Guide...
Page 74: Wan Dsl
After finished the settings above, click Apply to save the settings then click Cancel to return to previous page. This page allows you to configure DSL settings for WAN interface. Each item will be explained as follows: Item Description Create new WAN profiles. Edit Edit the selected WAN profile. Vigor2760 Series User’s Guide...
Page 75 Display the value of VCI. Display the IP version (IPv4 or IPv6) for such connection. IP Version To add a new WAN profile, please do the following: Click the Add button. The following setting page will appear. Vigor2760 Series User’s Guide...
Page 76 It is used for transferring data to client computers. VCI - Stands for Virtual Channel Identifier. It is a 16-bit field inside ATM cell’s header that indicates the cell’s next destination as it travels through the network. A virtual Vigor2760 Series User’s Guide...
Page 77 PPPoE connection directly from local clients to your ISP via the Vigor router. Thus, the PC can access Internet through such direction. Check the box to enable such function.  Pass-through Interface – Specify an interface. VLAN Encapsulation - Enable the function of VLAN with Vigor2760 Series User’s Guide...
Page 78 PPP Fixed IP - Type a fixed IP address for PPP connection.  Default Route - Check the box to enable the default route for such WAN profile. IPv6 Setting – It is available when IPv6 is selected as IP Version. Vigor2760 Series User’s Guide...
Page 79 Default Route - Check the box to enable the default route for such WAN profile.  DHCP Option – DHCP packets can be processed by adding option number and data information when such function is enabled. Vigor2760 Series User’s Guide...
Page 80 The router will add specific VLAN number to all packets while sending them out. Please type the tag value and specify the priority for the packets sending by the router.  VLAN ID –Type the value as the VLAN ID Vigor2760 Series User’s Guide...
Page 81 MAC Address – Check to box to display the MAC address field and type the MAC address here. Schedule – If you have several schedule profiles, you can select one of the profiles or select several profiles here. The Vigor2760 Series User’s Guide...
Page 82 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the settings then click Cancel to return to previous page. Vigor2760 Series User’s Guide...
Page 83: Wan Tunnel
Prefix Length – Type the fixed value for prefix length. AICCU - While using such mode, you have to make sure the IPv4 network connection is normal. Tunnel Broker – Type the address for the tunnel broker IP, FQDN or an optional port number. Vigor2760 Series User’s Guide...
Page 84 Check the box to enable the default route for such WAN profile. If you want to connect to Internet all the time, check the Always On Always On box. After finished the settings above, click Apply to save the settings Vigor2760 Series User’s Guide...
Page 85: Wan Bridge
Bridge Profile Type Display which type of DSL network (ADSL or VDSL2) this bridge will connect to. To add a new WAN profile, please do the following: Click the Add button. The following setting page will appear. Vigor2760 Series User’s Guide...
Page 86 The ATM, is a method of sending data in small packets of fixed sizes. It is used for transferring data to client computers. VCI - Stands for Virtual Channel Identifier. It is a 16-bit Vigor2760 Series User’s Guide...
Page 87 The default setting is “0”. Peak Cell Rate – The default setting is “0”. Cell Delay Variation – Minimum Cell Rate – The default setting is “0”.. Sustainable Cell Rate – The value of Sustainable Cell Rate Vigor2760 Series User’s Guide...
Page 88: Wan Usb
Enable – The default route is applied to the WAN profile. Disable – The default route is not applied to the WAN profile. To edit a WAN profile, please do the following: Choose the profile and click the check box. Vigor2760 Series User’s Guide...
Page 89 Type the password again for confirmation. Password Default Route Check the box to enable the default route for such WAN profile. Apply Click it to save the settings. Clear Click it to remove the modification of the web page. Vigor2760 Series User’s Guide...
Page 90: Wan Dsl Mode
Using custom modem Different countries adopt different modem codes. If the code default DSL modem firmware (offered by DrayTek) is not suitable for your request, simply check this box to replace the DSL modem firmware to get the suitable modem code.
Page 91: Lan
When you have several subnets in your LAN, sometimes a more effective and quicker way for connection is the Static routes function rather than other method. You may simply set rules to forward data from one specified subnet to another specified subnet without the presence of RIP. Vigor2760 Series User’s Guide...
Page 92: Lan Status
(LAN ports on the front panel of the router) and wireless interfaces (SSID and WDS settings). Currently, two LAN interfaces may be configured for the Vigor2760. Each LAN interface can be configured to support different firewall settings, servers, and applications according to the...
Page 93 Display if NAT function is enabled or not. VLAN Display the port interface number grouped under such VLAN. To add LAN profile, please do the following: Click Add. The following page appears. Available parameters are listed below: Vigor2760 Series User’s Guide...
Page 94 DNS server. IP Range - Click the plus button to set an IP group with starting and ending addresses which will be dispatched to the hosts in LAN by DHCP server. Start Vigor2760 Series User’s Guide...
Page 95 You also can use Select to choose the device you want. Advanced Settings  DHCP Option - DHCP packets can be processed by adding option number and data information when such function is enabled.  Code - Type a number for such function. Vigor2760 Series User’s Guide...
Page 96 DHCPv6 DNS and DHCPv6 Options settings. DHCPv6 DNS – Check the box to enable DHCPv6 DNS server configured above. DHCPv6 Options – DHCP packets can be processed by adding option number and data information when such function is applied and enabled. Vigor2760 Series User’s Guide...
Page 97  Default Lifetime(sec) – After the client received the RA packets, Vigor2760 can be treated as the default router. This option is used to set the duration time for Vigor2760 as the default router. “0” means Vigor2760 will not be treated as the default router.
Page 98 Click it to save the settings. Click it to remove the modification of the web page. Clear Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 99: Nat
Enable Click this button to enable the selected NAT profile(s) without editing the NAT profile(s). It is convenient for processing multiple NAT profiles at one time. Disable Click this button to disable the selected NAT profile(s) Vigor2760 Series User’s Guide...
Page 100 Port Redirection is selected as the Type. Type Display the NAT type used in such profile. To add a NAT profile, please do the following: Under Virtual Host, click Add. The following page appears. Available parameters are listed below: Vigor2760 Series User’s Guide...
Page 101 Protocol –Select the transport layer protocol (TCP or UDP). Start External Port/End External Port – Specify which public port or port range (start and end) of the hosts can be mapped into the specified Mapped Port(s) of the internal host. Vigor2760 Series User’s Guide...
Page 102 LAN from external interface, they can choose any one of these types for such profile. The default values for each type will be shown immediately whenever the type is selected. Simply move the mouse cursor to the drop down list / the Vigor2760 Series User’s Guide...
Page 103: Alg
LAN and WAN profiles for Vigor router to make SIP message and RTP packets of voice being transmitting and receiving correctly via NAT. After finished the settings above, click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 104: Static Route
Interface - Specify an interface for the default route. If Load Balance is selected as the Type, you can specify more than one interface for data transmission. Later, the packet(s) will be sent via the specified WAN interfaces based on the load balance policy. Vigor2760 Series User’s Guide...
Page 105: Static Route
Each item will be explained as follows: Item Description Create new NAT profiles. Edit Edit the selected NAT profile. To edit the profile, simply check the profile box you want to edit and then click this button. Vigor2760 Series User’s Guide...
Page 106 Check the box to enable such profile. Name Type a name for such profile. Destination IP Type the IP address of the destination. All the packets into Address/Mask such IP address will be forwarded to the gateway specified in Vigor2760 Series User’s Guide...
Page 107: Ipv6 Static Route
Each item will be explained as follows: Item Description Create new NAT profiles. Edit Edit the selected NAT profile. To edit the profile, simply check the profile box you want to edit and then click this button. Vigor2760 Series User’s Guide...
Page 108 Display the profile name for the static route. Destination IPv6 Display the destination address/mask of the static route. Address/Mask Interface Display the interface that such static route uses. Gateway Display the IP address receiving the packets from destination IP address/mask. Vigor2760 Series User’s Guide...
Page 109 Choose an interface for the IPv6 static route. Gateway Type an IPv6 address of the other router. All packets destined to destination IPv6 address/mask will be forwarded to the gateway specified here. Apply Click it to save the settings. Vigor2760 Series User’s Guide...
Page 110: Policy Route
Display the interface used for this policy. Src IP Start/ Displays the IP address for the start/end of the source IP. Src IP End Displays the IP address for the start/end of the destination IP. Dest IP Start/ Dest IP End Vigor2760 Series User’s Guide...
Page 111 IPs for WAN interface.  Any – Any IP can be treated as the source IP.  Single – Type one IP address.  Range – Type the start and end IP addresses on Vigor2760 Series User’s Guide...
Page 112 Click it to save the settings. Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 113: Dynamic Route
Timeout is set to 180 seconds. Interface Click to make this function available for choosing. Choose an interface for the static route. It is the version of RIP for sending the packets out. Simply Send Version use the default setting. Vigor2760 Series User’s Guide...
Page 114 Click it to save the settings. Reset Click it to retrieve the default settings of this page. Refresh Click it to refresh the web page. After finished the settings above, click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 115: Dns
DNS Status will show the status of existed DNS detected (for example, detecting the DNS information coming from WAN of DHCP client). Available parameters are listed below: Item Description Refresh Click it to refresh the web page. Server Name Display the IP address of the DNS server. Vigor2760 Series User’s Guide...
Page 116: Dns Setting
Click it to save the settings. Reset Click it to retrieve the default settings of this page. Refresh Click it to refresh the web page. After finished the settings above, click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 117: Failover
Enable – The profile is activated. Disable –The profile is not activated. Name Display the profile name for the static route. Interface Display the interface used by such profile. Display the interface(s) selected as the failover interface. Failover Pool Vigor2760 Series User’s Guide...
Page 118 Interface. The interface selected in Selected Items is the failover interface when the original WAN interface disconnects. Apply Click it to save the settings. Clear Click it to remove the modification of the web page. Vigor2760 Series User’s Guide...
Page 119: Switch
Display the name of the physical port. Enable Display if such port is enabled or not. PVID Display the port VLAN ID number for the untagged packets. Tag Out Disable – Packets sending out through such port will not be tagged. Vigor2760 Series User’s Guide...
Page 120 If it is checked, all the packets will be transferred without any tag number. Apply Click it to save the settings. Click it to remove the modification of the web page. Clear Cancel Click it to return to previous web page. Vigor2760 Series User’s Guide...
Page 121: Port Mirror
Select which ports are necessary to be mirrored. Apply Click it to save the settings. Refresh Click it to clear current settings and return to the settings saved previously. After finished the settings above, click Apply to save the setting. Vigor2760 Series User’s Guide...
Page 122: Wireless Lan
The default security mode is Mixed (WPA/WPA2)-PSK. Default Pre-Shared Key (PSK) is provided and stated on the label pasted on the bottom of the router. For the wireless client who wants to access into Internet through such router, please input the default PSK value for connection. Vigor2760 Series User’s Guide...
Page 123 Below shows the menu items for Wireless LAN. Vigor2760 Series User’s Guide...
Page 124: General Setup
Means the channel of frequency of the wireless LAN. The default channel is 6. You may switch channel if the selected channel is under serious interference. If you have no idea of choosing the frequency, please select Auto to let system determine for you. Vigor2760 Series User’s Guide...
Page 125 Channel Bandwidth - The router can use 20Mhz for data transmission and receiving between the AP and the stations. Or, it can use 20Mhz or 40Mhz for data transmission and receiving according to the station capability. Such channel can increase the performance for data transit. Vigor2760 Series User’s Guide...
Page 126 In this case, we choose SSID2. The following page will appear immediately. Available parameters are listed below: Item Description Name Display the name of the selected SSID. Enable Check the box to enable such SSID setting. Vigor2760 Series User’s Guide...
Page 127 128-bit encryption level. The allowed content is the ASCII characters from 33(!) to 126(~) except '#' and ',' . Confirm Key Such function is available when WEP is selected as Security Setting. Type the encryption key again for confirmation. Vigor2760 Series User’s Guide...
Page 128 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the settings. Now, you have configured the SSID2 successfully. Vigor2760 Series User’s Guide...
Page 129: Wps
On the side of Vigor 2760 series which served as an AP, press WPS button once on the front panel of the router or click Start PBC on web configuration interface. On the side of a station with network card installed, press Start PBC button of network card. Vigor2760 Series User’s Guide...
Page 130 (You need to setup WPS within two minutes) Configure via Push Click Start PBC to invoke Push-Button style WPS setup Button procedure. The router will wait for WPS requests from Vigor2760 Series User’s Guide...
Page 131: Access Control
Display the activation status for such interface. Enable – The profile is activated. Disable –The profile is not activated. Filter Type Display the type (Deny List or Allow List) of the profile. To edit an Access Control profile, please do the following: Vigor2760 Series User’s Guide...
Page 132 MAC address. Select – Click the button to choose the MAC address of the wireless stations. The one selected here is allowed to access into Internet through Vigor2760. Click it to save the settings. Apply Click it to remove the modification of the web page.
Page 133: Wds
Provide bridge traffic between two LANs through the air.  Extend the coverage range of a WLAN. To meet the above requirement, two WDS modes are implemented in Vigor router. One is Bridge, the other is Repeater. Below shows the function of WDS-bridge interface: Vigor2760 Series User’s Guide...
Page 134 The application for the WDS-Repeater mode is depicted as below: In Bridge mode, the router will connect to up to four Vigor2760 which use the same mode, and all wired Ethernet clients of every Vigor2760 will be connected together. You can use this mode to connect a network to other networks which is physically isolated.
Page 135 Check the box to enable the WDS profile. If you choose Bridge as the connecting mode, please type in Peer MAC Address the peer MAC address in these fields. Security Setting There are several types for security, OPEN, WEP and Vigor2760 Series User’s Guide...
Page 136 Click it to save the settings. Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 137: Wmm
Click it to clear current settings and return to the settings saved previously. To edit the parameter of Access Point or Station, please do the following: Move your mouse cursor on the parameter of Access Point or Station you want to edit and click on it. Vigor2760 Series User’s Guide...
Page 138 It means transmission opportunity. For WMM categories of Txop AC_VI and AC_VO that need higher priorities in data transmission, please set greater value for them to get highest transmission opportunity. Specify the value ranging from 0 Vigor2760 Series User’s Guide...
Page 139: Ap Discovery
It is an abbreviation of Admission control Mandatory. It can restrict stations from using specific category class if it is checked. Note: Vigor2760 provides standard WMM configuration in the web page. If you want to modify the parameters, please refer to the Wi-Fi WMM standard specification.
Page 140: Channel Statistics
Display the MAC address of the scanned AP. Security Display the type of the security used by such profile. Signal Ratio Display the signal strength of the AP. It displays the statistics for the channels used by the APs scanned by Vigor2760. Vigor2760 Series User’s Guide...
Page 141: Station List
Display the name of the SSID (SSID1 ~ SSID4 in default) for wireless connection. Enable Display if the bandwidth management is disabled/enabled. Bandwidth Limit Type Display the type (auto or per station limit) of bandwidth limit. Vigor2760 Series User’s Guide...
Page 142 Click it to save the settings. Clear Click it to remove the modification of the web page. Click it to return to previous web page. Cancel After finished the settings, click Apply to save the configuration. Vigor2760 Series User’s Guide...
Page 143: Firewall
Once the packet matches with the first filter rule, the other filter rules will be ignored and will not be applied to the packet. Therefore, the sequence of the filter rules influence the operation of the firewall significantly. Vigor2760 Series User’s Guide...
Page 144 Display the profile(s) that the filter rule will be valid at certain time interval Action Display the action to be taken when packets match the rule. Display the activation status of NAT for such profile. Enable – NAT is activated. Vigor2760 Series User’s Guide...
Page 145 Type the name of the rule profile. Maximum length is 15- character long. Description Enter filter set comments/description. Source Interface / Set the direction of packet flow. Use the drop down list to Destination Interface choose the source interface and the destination interface. Vigor2760 Series User’s Guide...
Page 146 Bandwidth Limit Check this box to apply the bandwidth limit. (BW Limit) TX Bandwidth (KB/s) – Type a value for outgoing traffic. Vigor2760 Series User’s Guide...
Page 147 Additional Information for User Management When the box of User Management is checked, the router allows you to add more filter settings. Refer to the following figure. Click the button on the right side to open the following setting page. Vigor2760 Series User’s Guide...
Page 148: Default Rule
(B) but filtered by next filter rule directly. When there is no filter rule existed or the incoming packets cannot match with any filter conditions, they will be filtered by the default rule configured in this page. Vigor2760 Series User’s Guide...
Page 149 It is available only when User Management is disabled. (APPF) Select an APPF profile for global IM/P2P application blocking. If there is no profile for you to select, please open CSM>>APP Enforcement to create a new profile first. Vigor2760 Series User’s Guide...
Page 150: Local Filter Rule
Move the selected rule to a new place. Reset Click it to retrieve the default settings of this page. Refresh Click it to fresh the web page. Enable Display the activation status of the rule. Enable – The rule is activated. Vigor2760 Series User’s Guide...
Page 151 Item Description Enable Check the box to enable the profile. Name Type the name of the rule profile. Maximum length is 15- character long. Description Enter filter set comments/description. Type Set the direction of packet flow. Vigor2760 Series User’s Guide...
Page 152 Syslog if such box is checked. Apply Click it to save the settings. Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. Vigor2760 Series User’s Guide...
Page 153: Local Default Rule
For detailed information of setting QoS, please refer to the related section later. Check the box to record related information on Syslog. Apply Click it to save the settings. Clear Click it to remove the modification of the web page. Vigor2760 Series User’s Guide...
Page 154: Dos Defence
Display the interface used for such DoS defence profile. DoS Defense Display the name of the DoS policy specified for such profile. To add a DoS Defence profile, please do the following: Click Add. The following page appears. Vigor2760 Series User’s Guide...
Page 155 DoS Policies will be activated whenever such DoS profile is used. SYN Flood Check the box to activate the SYN flood defense function. Once detecting the Threshold of the TCP SYN packets from the Internet has exceeded the defined value, the Vigor router Vigor2760 Series User’s Guide...
Page 156 Many machines may crash when receiving ICMP datagrams (packets) that exceed the maximum length. To avoid this type of attack, the Vigor router is designed to be capable of discarding any fragmented ICMP packets with a length Vigor2760 Series User’s Guide...
Page 157 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the settings then click Cancel to return to previous page. Vigor2760 Series User’s Guide...
Page 158: Objects Setting
Click it to fresh the web page. Name Display the name of the profile. Display if such function is enabled or disabled. Invert Selection To create a new object profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 159 Subnet –The object contains one subnet for IP address. If you choose this type, you have to specify Start IP Address and the Subnet Mask. MAC–The object contains MAC address. If you choose this type, you have to specify a MAC Address. Vigor2760 Series User’s Guide...
Page 160 If you choose Subnet as the type and check the box of MAC Binding, you have to specify a MAC Address of this router in the related field. The router will inspect if the MAC address of the incoming packets matches with the specified MAC Vigor2760 Series User’s Guide...
Page 161 Click it to save the settings. Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Vigor2760 Series User’s Guide...
Page 162: Address Group
Display the type (range, MAC or subnet) of the object profile. Group Display the IP object profiles grouped under such profile. To create a new object group profile, please do the following: Click the Add button. The following setting page will appear. Vigor2760 Series User’s Guide...
Page 163 Click it to save the settings. Click it to remove the modification of the web page. Clear Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Vigor2760 Series User’s Guide...
Page 164: Service Type
Display the protocol that this profile applies to. Application Display the type (e.g., HTTP, POP3 and etc.) of such profile. To create a new service type object profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 165 For example, the URL Content Filter and Web Content Filter will run only when HTTP is selected in such field. If you choose None, then UCF and WCF will not run normally. Vigor2760 Series User’s Guide...
Page 166 Click it to save the settings. Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Vigor2760 Series User’s Guide...
Page 167: Service Type Group
Click it to retrieve the default settings of this page. Refresh Click it to fresh the web page. Name Display the name of the profile. Display the service type object profiles grouped under such Group group. Vigor2760 Series User’s Guide...
Page 168 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. A new group profile has been created. Vigor2760 Series User’s Guide...
Page 169: Keyword
Click it to fresh the web page. Name Display the name of the profile. Content Display the content defined in this profile. To create a new keyword object profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 170 Click it to remove the modification of the web page. Clear Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new object profile has been created. Vigor2760 Series User’s Guide...
Page 171: Keyword Group
Click it to fresh the web page. Name Display the name of the profile. Group Display the keyword object profiles grouped under such group. To create a new keyword object group profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 172 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new group profile has been created. Vigor2760 Series User’s Guide...
Page 173: Default Keyword Object / Group
There are several keyword objects and groups pre-defined and stored in Vigor router. Click the Default Keyword Object and the Default Keyword Group tab for viewing the details. Refer to the following two figures: And, Vigor2760 Series User’s Guide...
Page 174: Schedule
Type Display the type (frequency of execution) of the profile. Start Date Display the starting date of the schedule. Start Daytime Display the daytime of the schedule. Display the end/trigger time of the schedule. End/Trigger Daytime Vigor2760 Series User’s Guide...
Page 175 Check the day box to specify which days in one week should perform the job. Monthly Specify which month item will be grouped under such schedule object. Simply choose the item from the Available Items and click the arrow button to move the selected one to Vigor2760 Series User’s Guide...
Page 176 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new object profile has been created. Vigor2760 Series User’s Guide...
Page 177: Schedule Group
Click it to fresh the web page. Name Display the name of the profile. Group Display the schedule object profiles grouped under such group. To create a new schedule object group profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 178 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new group profile has been created. Vigor2760 Series User’s Guide...
Page 179: Csm
You have to check the filter profile you want and then click this button. Reset Click it to retrieve the default settings of this page. Refresh Click it to fresh the web page. Name Display the name of the profile. Description Display the filter description. Vigor2760 Series User’s Guide...
Page 180 Log – After checking the box, related record for such application will be shown in Syslog. Apply Click it to save the settings. Clear Click it to remove the modification of the web page. Vigor2760 Series User’s Guide...
Page 181: Url Content Filter
Create a new filter profile. Edit Modify the selected filter profile. You have to check the filter profile you want and then click this button to open the edit window for modification. Delete Remove the selected filter profile. Vigor2760 Series User’s Guide...
Page 182 Display the activation of IP address blocked or not. Enable – The function is enabled. Disable – The function is disabled. To create a new filter profile, please do the following: Click the Add button. The following setting page will appear. Vigor2760 Series User’s Guide...
Page 183 The reason for this is to prevent someone dodges the URL Access Control. You must clear your browser cache first so that the URL content filtering facility operates properly on a web page that you visited before. Vigor2760 Series User’s Guide...
Page 184 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new group profile has been created. Vigor2760 Series User’s Guide...
Page 185: Web Content Filter
Commtouch is the web content filter based on Commtouch operated in the worldwide. There is a 30-day trial period. After trial, you can purchase DrayTek's prepared Commtouch GlobalView WCF package from retailing outlets. Commtouch is merged by Cyren, and GlobalView services will be continued to deliver powerful cloud-based information security solutions! Refer to: http://www.prnewswire.com/news-releases/commtouch-is-now-cyren-239025151.html...
Page 186 None – There is no log file will be recorded for this profile. Pass – Only the log about Pass will be recorded in Syslog. Block – Only the log about Block will be recorded in Syslog. Vigor2760 Series User’s Guide...
Page 187 Available Items – Display all the available keyword objects and keyword groups including user-defined and default ones.  Selected Items – Display the object and/or group selected for such profile. License Service Choose WCF service provider from the drop down list. Provider Vigor2760 Series User’s Guide...
Page 188 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new group profile has been created. Vigor2760 Series User’s Guide...
Page 189: Advanced
L1 and L2. Click it to save the settings. Apply Reset Click it to retrieve the default settings of this page. After finished the settings above, click Apply to save the file. Vigor2760 Series User’s Guide...
Page 190: User Management
You have to check the user object profile you want and then click this button to open the edit window for modification. Delete Remove the selected user object profile. You have to check the user object profile you want and then click this button. Vigor2760 Series User’s Guide...
Page 191 When the user passes the authentication, he/she can access Internet via this router. However the accessing operation will be restricted with the conditions configured in this user profile. Type The router will authenticate the dial-in user by itself or by Vigor2760 Series User’s Guide...
Page 192 Additional privileges can be defined in User Management>>Privilege. Apply Click it to save the settings. Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. Vigor2760 Series User’s Guide...
Page 193: User Group
Display the name of the profile. The profile with a name - admin is defined in default. Type Display the type of the group profile. Group Display the user object profiles grouped under such user group. Vigor2760 Series User’s Guide...
Page 194 Use the “>” button to move the selected item listed in Available Items onto Selected Items. Available Items – Display all the available user objects based on the type you specify above. Selected Items – Display the user object selected for such group profile. Vigor2760 Series User’s Guide...
Page 195 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new user group profile has been created. Vigor2760 Series User’s Guide...
Page 196: Radius
Display the name of the profile. Display the IP address of the RADIUS server. Server IP Address Port Display the port number of the RADIUS server. To create a new RADIUS profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 197 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new RADIUS profile has been created. Vigor2760 Series User’s Guide...
Page 198: Tacacs
Display the name of the profile. Server IP Address Display the IP address of the server. Port Display the port number of the server. To create a new TACACS+ profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 199 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new TACACS+ profile has been created. Vigor2760 Series User’s Guide...
Page 200: Privilege
You have to check the privilege profile you want and then click this button. Refresh Click it to fresh the web page. Name Display the name of the privilege profile. The profiles with names – Administrator and Guest are defined in default. Vigor2760 Series User’s Guide...
Page 201 Check the box to make the accessing information of the user be displayed in Syslog Quota Setting You can set total connection time allowed by the router and the total amount allowed for data transmission. Vigor2760 Series User’s Guide...
Page 202 Apply Click it to save the settings. Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. Vigor2760 Series User’s Guide...
Page 203: Advertisement
Reset Click it to retrieve the default settings of this page. Click it to fresh the web page. Refresh Here is an example which will show you how to make a log-in advertisement. Open User Management>>Advertisement. Vigor2760 Series User’s Guide...
Page 204 Choose Advertisement and click Apply. Open System Maintenance>>Administrator Setting. Check the box in front of Advertisement. Then, click Edit. Vigor2760 Series User’s Guide...
Page 205 After finishing the writing, click Apply to save the setting. Log out Vigor router and re-log into the web user interface of Vigor2760. You will see a pop-up window with the sentence – “Warning: Do not use the computer after 11:00PM”.
Page 206: Voip
Then, both parties’ SIP proxies will forward the sequence of messages to caller to establish the session. If you both register to the same SIP Registrar, then it will be illustrated as below: Vigor2760 Series User’s Guide...
Page 207 Voice traffic over Internet but you just get your data a little slower and it is tolerable for data traffic. Below shows the menu items for VoIP: Vigor2760 Series User’s Guide...
Page 208: Sip Accounts
Specify which port will ring when receiving a phone call. Status Show the status for the corresponding SIP account. R means such account is registered on SIP server successfully. – means the account is failed to register on SIP server. Vigor2760 Series User’s Guide...
Page 209 Some SIP server allows user to use VoIP function without registering. For such server, please check the box of Call without Registration. Choosing AUTO is recommended. The system will select a proper way for your VoIP call. Vigor2760 Series User’s Guide...
Page 210 There are four options for you to choose. Disable is to close call forwarding function. Always – It means all the incoming calls will be forwarded into SIP URL without any reason.  SIP URL –Type in the SIP URL (e.g., Vigor2760 Series User’s Guide...
Page 211 Set Phone 1 and/or Phone 2 as the default ring port(s) for this SIP account. Ring Pattern Choose a ring tone type for the VoIP phone call. After finished the settings above, click Apply to save the file. Now, the SIP account profile has been modified. Vigor2760 Series User’s Guide...
Page 212: Phone Setting
Display if such feature is enabled or not. Default SIP Account Display the default SPI account selected for such profile. To edit a phone setting profile, please do the following: Choose the phone setting profile you want and click the check box. Vigor2760 Series User’s Guide...
Page 213 Check this box to invoke this function. Click hook flash to initiate another phone call. When the phone call connection succeeds, hang up the phone. The other two sides can communicate, then. Prefer Codec Select one of five codecs as the default for your VoIP calls. Vigor2760 Series User’s Guide...
Page 214 There are four DTMF modes for you to choose.  InBand - Choose this one then the Vigor will send the DTMF tone as audio directly when you press the keypad on the phone.  OutBand - Choose this one then the Vigor will Vigor2760 Series User’s Guide...
Page 215 Echo Cancellation. Simply keep the default settings for these features. Click it to save the settings. Apply Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. Vigor2760 Series User’s Guide...
Page 216: Tone Setting
Select the proper region which you are located. If you cannot find out a suitable one, please choose User Defined and fill out the corresponding values for dial tone, ringing tone, busy tone, and congestion tone by yourself for Vigor2760 Series User’s Guide...
Page 217: Rtp Setting
Specifies the end port for RTP stream. The default value is 10500. Click it to save the settings. Apply Clear Click it to remove the modification of the web page. Reset Click it to rest to factory default settings. Vigor2760 Series User’s Guide...
Page 218: Dial Plan
Display the speed-dial number for this profile. Display Name Display the Caller-ID that you want it to be displayed on your friend’s screen. SIP URL Display the SIP Address for this profile. Dial Out Account Display the SIP account for this profile. Vigor2760 Series User’s Guide...
Page 219 SIP server, sometimes, the VoIP phone call connection may not succeed. By using the specified dial out account, the successful connection can be assured. Apply Click it to save the settings. Clear Click it to remove the modification of the web page. Vigor2760 Series User’s Guide...
Page 220 Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, the phone book profile has been modified. Vigor2760 Series User’s Guide...
Page 221: Digit Map
Max Len Display the maximum length of the dial number for applying the prefix number settings. Route Display the one that you want to enable the prefix number settings from the saved SIP accounts. Vigor2760 Series User’s Guide...
Page 222 VoIP interface. Take the above picture (Prefix Table Setup web page) as an example, the OP number of 886 will be deleted completely for the prefix number is set with 886. Replace - When you choose this mode, the OP number Vigor2760 Series User’s Guide...
Page 223 Click it to remove the modification of the web page. Clear Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, the digit map profile has been modified. Vigor2760 Series User’s Guide...
Page 224: Call Barring
Enable Display the status (enable or disable) of this profile. Call Direction Display the direction of the phone call. Domain/Number Display the domain or the number. Interface Display the SIP account number applied by the profile. Vigor2760 Series User’s Guide...
Page 225 Determine the type of the VoIP phone call, URI/URL or number. Domain/Number Type the domain or the number in this field according to the barring type selected. Interface Choose an SIP account for applying the call barring function. Vigor2760 Series User’s Guide...
Page 226 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, the call barring profile has been modified. Vigor2760 Series User’s Guide...
Page 227: Call Barring Advanced
Specify the interface (phone 1 and / or phone 2) to apply the Interface function. Apply Click it to save the settings. Clear Click it to remove the modification of the web page. Reset Click it to rest to factory default settings. Vigor2760 Series User’s Guide...
Page 228: Regional
Call Forward [Busy or No Dial the number typed in this field to forward all the Ans][Act] incoming calls to the specified place while the phone is busy Vigor2760 Series User’s Guide...
Page 229: Phone Status
CONNECTING - Indicates that the user is calling out. WAIT_ANS - Indicates that a connection is launched and waiting for remote user’s answer. ALERTING - Indicates that a call is coming. ACTIVE-Indicates that the VoIP connection is launched. Vigor2760 Series User’s Guide...
Page 230: Call Log
Display the starting time of the phone call. Display the duration time of the phone call. Duration IN/Out/Miss Display the type (incoming, outgoing or missed) of the phone calls. Account ID Display the account ID dialed by the peer. Vigor2760 Series User’s Guide...
Page 231: Bandwidth Management
Display the end IP address for such session limit profile.. Maximum Session Display the default maximum session of the session limit profile. This button allows you to add new rule for session limit. A pop up dialog will appear if it is pressed. Vigor2760 Series User’s Guide...
Page 232: Bandwidth Limit
Available settings are explained as follows: Item Description Enable Check the box to activate the function of bandwidth limit. Default TX Limit Define the default capacity of the upstream for each Vigor2760 Series User’s Guide...
Page 233 Maximum TX Limit –Define the maximum capacity of the upstream for each computer in LAN. Maximum RX Limit - Define the maximum capacity of the downstream for each computer in LAN. Click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 234: Quality Of Service
Outbound QoS Class Display the percentage for each QoS class used by such profile. Enable – The inbound QoS is activated for such interface. Inbound QoS Disable –The intbound QoS is not activated for such Vigor2760 Series User’s Guide...
Page 235 Check the box to make the incoming traffic following the limitation specified in this page. Inbound Bandwidth Type the transmission rate to limit the incoming traffic. (Kbps) Click Detect to let the router detect the bandwidth for your Vigor2760 Series User’s Guide...
Page 236 After finished the settings above, click Apply to save the settings. The new QoS profile will be created and displayed on the page. Open Bandwidth Management>>Quality of Service and click the tab of QoS Statistics. A chart for QoS Statistics will be displayed on the screen for your reference. Vigor2760 Series User’s Guide...
Page 237: Applications
Click it to retrieve the default settings of this page. Refresh Click it to fresh the web page. Name Display the name of the profile. To create a new DNS service profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 238 If DNS_A is selected as a type, simply type the name of the host (e.g., draytek.com). If DNS_MX is selected as a type, simply type the name of the mail server (e.g., draytek.com). IP Address If DNS_A is selected as a type, type an IP address (e.g., 192.168.1.56) for mapping to the host.
Page 239 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new DNS service profile has been created. Vigor2760 Series User’s Guide...
Page 240: Advanced
The cache is used to record the result of DNS inquiry. Apply Click it to save the settings. Reset Click it to retrieve the default settings of this page. Refresh Click it to fresh the web page. Vigor2760 Series User’s Guide...
Page 241: Dynamic Dns
Refresh Click it to refresh the information of the web page. Name Display the profile name of the DDNS server profile. Domain Name Display the domain name that the DDNS server profile uses. Vigor2760 Series User’s Guide...
Page 242: Service
Disable – The service profile is not available for choosing. Display the name of the profile. Name External Interface Display the channel used by such account. To create a new DNS service profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 243 Type a name for such profile. External Interface While connecting, the router will use PVC 1 or 3G_BACKUP as the channel for such account. Choose the one you want. Service Provider Select the service provider for the DDNS account. Vigor2760 Series User’s Guide...
Page 244 Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Now, a new DNS service profile has been created. Vigor2760 Series User’s Guide...
Page 245: Advanced
Click it to save the settings. Reset Click it to retrieve the default settings of this page. Refresh Click it to remove the modification of the web page. After finished the settings above, click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 246: Upnp
Available Items onto Selected Items. Available Items – Display all the available user objects based on the type you specify above. Selected Items – Display the user object selected for such group profile. Apply Click it to save the settings. Vigor2760 Series User’s Guide...
Page 247 Can't work with Firewall Software Enabling firewall applications on your PC may cause the UPnP function not working properly. This is because these applications will block the accessing ability of some network ports. Security Considerations Vigor2760 Series User’s Guide...
Page 248: Igmp
The application of multicast will be executed through WAN port. In addition, such function is available in NAT mode. External Proxy Interface Define which WAN interface shall receive the Multicast Stream (IPTV Traffic) here. (Up Stream) The default setting is PVC1. Vigor2760 Series User’s Guide...
Page 249: Wake On Lan
Delete Remove the selected profile. You have to check the profile you want and then click this button. Click it to retrieve the default settings of this page. Reset Vigor2760 Series User’s Guide...
Page 250 Check this box to enable such profile. Name Type a name for such profile. Interface The interface selected here will be used to invoke WOL profile. The profile can be wake by using address object. Check the Wake by Address Vigor2760 Series User’s Guide...
Page 251: Usb Applications
LAN can access, write and read data stored in USB storage disk with different applications. Then, the client can use the FTP site (USB storage disk) or share the Samba service through Vigor router. Vigor2760 Series User’s Guide...
Page 252: Usb Status
Description Refresh Click it to fresh the web page. Status Display the activation status of the USB disk. Enable – The USB printer is available for printing. Disable – The USB printer is not powered up. Vigor2760 Series User’s Guide...
Page 253: Samba
Disk Share profile is a storage space to which different users can write/read/create/delete files as if it is a folder on your own machine once those users connect to Vigor2760 Samba server successfully. A disk share is either the "internal storage" or "USB disks" plugged in the Vigor2760 USB ports.
Page 254 User Name – Use the drop down list to select a name from a list of available users or user groups created under User Management >>User Profile. Privilege – Determine the right (read/write or ready only) that Vigor2760 Series User’s Guide...
Page 255 Click it to remove the modification of the web page. Cancel Click it to exit the web page without saving the configuration. After finished the settings above, click Apply to save the file. Now, a new profile has been created. Vigor2760 Series User’s Guide...
Page 256: General
; : " < > * + = \ | ?. Apply Click it to save the settings. Reset Click it to retrieve the default settings of this page. Refresh Click it to clear current settings and return to the settings saved previously. Vigor2760 Series User’s Guide...
Page 257: Ftp Server
FTP server in Vigor2760 is a server that allows users to download from / upload files to either "internal storage" or "USB disks" plugged in the USB port. It allows you to create login accounts for FTP users. Each item will be explained as follows:...
Page 258 Specify the directory that a user will find himself/herself residing in once logging in. Internal Storage – It indicates Vigor2760 internal NAND flash storage, which is about 38MB and is designed to store configuration related settings. Currently the path is /mnt/share.
Page 259: General
Some devices support both functions. Vigor2760 can install server program onto the connected USB storage device. Clients with equipments supporting DLNA can play the files stored in the USB storage device connected to Vigor2760 through the network.
Page 260 USB disk. Apply Click it to save the settings. Reset Click it to retrieve the default settings of this page. Refresh Click it to clear current settings and return to the settings saved previously. Vigor2760 Series User’s Guide...
Page 261: Vpn And Remote Access
When LAN DHCP is disabled, the system will assign the IP address for remote dial-in user within the IP range. Apply Click it to save the settings. Click it to remove the modification of the web page. Clear Vigor2760 Series User’s Guide...
Page 262: Lan To Lan
Display the name of the profile. Description Display the comments/description of the VPN profile. Call Direction Display the allowed call direction of this LAN-to-LAN profile. Remote Network IP Display the IP address of the remote dial-in user. Vigor2760 Series User’s Guide...
Page 263 Specify the allowed call direction of this LAN-to-LAN profile. Both:-initiator/responder Dial-Out- initiator only. Dial-In- responder only. Always On Check to enable router always keep VPN connection. Idle Timeout The default value is 300 seconds. If the connection has been Vigor2760 Series User’s Guide...
Page 264 128-bit from the remote end. If not, the local end will only accept the data send without encryption. This option 128-bit indicates that the router Vigor2760 Series User’s Guide...
Page 265 Options L2TP with L2TP over IPsec enabled. Click the small triangle to unfold the available setting items. Local ID (optional) and Peer ID (optional) - This option is available when Pre-shared Key is selected as Authentication Vigor2760 Series User’s Guide...
Page 266 However, the time to generate the security key will be long. Phase1 Key Lifetime (min) –For security reason, the lifetime of key should be defined. The default value is 28800 seconds. Vigor2760 Series User’s Guide...
Page 267 63 characters. This field is applicable when you select PPTP or L2TP with or Password without IPsec policy above. The maximum length for password is 63 characters. Confirm Password Type the password again for confirmation. Vigor2760 Series User’s Guide...
Page 268 Local Certificate – Choose a certificate profile used for Vigor router. The certificate profile is defined in Certificate Management>>Local Certificate. Peer Certificate – Choose a certificate profile used for remote Vigor2760 Series User’s Guide...
Page 269 Peer ID (DN). Only the specified one is acceptable. The data shall be typed as, e.g., “C=TW, ST=Hsinchu, L=Hokou, O=Draytek, OU=RD, CN=John/emailAddress=john@test.com” or “C=TW”, O=Draytek”.
Page 270 Dead Peer Detection –Action – This function will detect if any response received from the peer. If no response, the chosen action will be performed. Hold means such VPN connection is still active; Clear means such VPN connection will be down. Vigor2760 Series User’s Guide...
Page 271 Click it to remove the modification of the web page. Cancel Click it to exit the web page without saving the configuration. After finished the settings above, click Apply to save the file. Now, a new LAN to LAN profile has been created. Vigor2760 Series User’s Guide...
Page 272: Remote Dial-In User
User Account – It is available when Local is selected as authentication type. Only the object profiles configured with Local type will be displayed here. Click + to enable DHCP or specify an IP address for the user account. Vigor2760 Series User’s Guide...
Page 273 It is available when PPTP is selected as Server Type. Select Optional or Required for MPPE. Optional – The local end accepts any MPPE encryption settings from the remote end. Required – If such option is selected, a new option of MPPE Vigor2760 Series User’s Guide...
Page 274 Method above. You can define a name to be used by local user and the peer user. If no name specified here, the system will use My WAN IP as the local ID and the Remote Host as the Peer ID configured in this web page. Vigor2760 Series User’s Guide...
Page 275 Phase1 Key Lifetime (min) –For security reason, the lifetime of key should be defined. The default value is 28800 seconds. You may specify a value in between 900 and 86400 seconds. Vigor2760 Series User’s Guide...
Page 276: Status
This page displays the existed VPN profiles for your reference. You can click the Overview, IPsec, L2TP or PPTP tab to check and choose the VPN profile you want. Next, click Dial to build the VPN connection between your PC and the remote end. Vigor2760 Series User’s Guide...
Page 277: Certificate Management
Allow you to download an existing certificate request from the PC to your router. Open a window to generate certiface request. Generate Refresh Click it to refresh the web page. Name Display the name of the certificate. Status Display the status of the certificate. Vigor2760 Series User’s Guide...
Page 278: Generate Local Certificate
Type the name of the state /province for such certificate. Locality (City) Type the name of the city for such certificate. Type the name of the organization. Organization Organization Unit Type a description for the organization unit. Vigor2760 Series User’s Guide...
Page 279 A CA server shall sign the certificate request and send it back to the PC. Next, click Upload to transmit the issued certificate from the PC to your router. Choose Local Certificate as the Type and click Select File to locate the one you want. Vigor2760 Series User’s Guide...
Page 280 The Certificate has been uploaded to Vigor router and displayed on this page. Note: Do not manually delete the certificate request file before completing the process of Uploading. If the uploading is successfully, the system will remove the request automatically. Vigor2760 Series User’s Guide...
Page 281: Upload Local Certificate
Locate the private key files from your host according to the certificate file selected. Passphrase This item will be available when Certificate or PKCS12 is chosen as the Type. Such string will be used for confirmation while signing Vigor2760 Series User’s Guide...
Page 282 Click it to exit the web page without saving the configuration. After finished the settings above, click Apply to save the file and wait for the messages “Loading” and then “Done” appear. The Certificate has been uploaded to Vigor router and displayed on this page. Vigor2760 Series User’s Guide...
Page 283: Remote Certificate
Certificates obtained from other sources and stored on the PC can be uploaded to Vigor router, do the following: Click the Upload button. The following setting page will appear. To specify a file, click the Select File button to locate the one you want. Vigor2760 Series User’s Guide...
Page 284 After finished the settings above, click Apply to save the file and wait for the messages “Loading” and “Done” appear. The Certificate has been uploaded to Vigor router and displayed on this page. Vigor2760 Series User’s Guide...
Page 285: Trusted Ca Certificate
Display the end point of the valid time of the certificate. Trusted CA certificate obtained from other sources and stored on the PC can be uploaded to Vigor router, do the following: Click the Upload button. Vigor2760 Series User’s Guide...
Page 286 After finished the settings above, click Apply to save the file and wait for the messages “Loading” and “Done” appear. A trusted CA certificate has been uploaded to Vigor router and displayed on this page. Vigor2760 Series User’s Guide...
Page 287: Certificate Revocation List
Revocation List obtained from other sources and stored on the PC can be uploaded to Vigor router, do the following: Click the Upload button. The following setting page will appear. To specify a CRL file, click the Select File button to locate the one you want. Vigor2760 Series User’s Guide...
Page 288: System Maintenance
VigorACS server that such device will be connected. However URL, username and password under CPE client are fixed that users cannot change it. The default CPE username and password are "vigor" and "password". You will need it when you configure VigorACS server. Vigor2760 Series User’s Guide...
Page 289 Username: acs Password: XXXXXX ACS Server Password Type the password for ACS Server for authentication. For example, if you want to use such CPE with VigorACS, you can type as the following: Vigor2760 Series User’s Guide...
Page 290 Server Port – Type the port number of the STUN server. Apply Click it to save the settings. Reset Click it to retrieve the default settings of this page. Refresh Click it to clear current settings and return to the settings saved previously. Vigor2760 Series User’s Guide...
Page 291: Administrator Setting
Click it to retrieve the default settings of this page. Refresh Click it to clear current settings and return to the settings saved previously. Name Display the profile name. Advertisement Display the advertisement message which is used to inform the user. Vigor2760 Series User’s Guide...
Page 292: Configuration Backup
To restore a restored configuration file, simply click the Restoration tab. Click the Select button to locate the backup file you want, then click Apply. The configuration file will be restored to the router. Vigor2760 Series User’s Guide...
Page 293: Syslog And Mail Alert
Enable – Check the box to enable such function. AlertLog Port – Type the port number required for the alert log. Click it to save the settings. Apply Reset Click it to retrieve the default settings of this page. Vigor2760 Series User’s Guide...
Page 294: Mail Alert
Display the port number of the mail alert server. SSL/TLS Display the activation status for SSL/TLS. Enable – The SSL/TLS is activated. Disable –The SSL/TLS is not activated. To add a new mail alert profile, please do the following: Click the Add button. Vigor2760 Series User’s Guide...
Page 295 All of them will receive the mail alert at the same time. Name – Type a name of the receiver. E-mail Receiver – Type the e-mail address of the receiver. Vigor2760 Series User’s Guide...
Page 296 Click it to save the settings. Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Vigor2760 Series User’s Guide...
Page 297: Time And Date
Type the starting time with the format of hh:mm:ss. Apply Click it to save the settings. Reset Click it to retrieve the default settings of this page. Click it to clear current settings and return to the settings Refresh saved previously. Vigor2760 Series User’s Guide...
Page 298: Management
161. Telnet Max Login Choose the number to determine how many remote users are allowed to telnet Vigor router through Internet. Management List Click + to open the following dialog for configuring remote management. Vigor2760 Series User’s Guide...
Page 299: Cli Console
Click it to save the settings. Refresh Click it to clear current settings and return to the settings saved previously. A black window will appear. Simply click your mouse on the window to perform the CLI operation. Vigor2760 Series User’s Guide...
Page 300: Remote Capture
Each item will be explained as follows: Item Description Create new SNMP profiles. Edit Edit the selected SNMP profile. To edit the profile, simply check the profile box you want to edit and then click this button. Vigor2760 Series User’s Guide...
Page 301 Set one host as the manager to execute SNMP function. Please type in IP address to specify certain host. Click the + button to add a new IP address. SNMP Event Specify the items to be executed by SNMP function. Vigor2760 Series User’s Guide...
Page 302 Click it to save the settings. Clear Click it to remove the modification of the web page. Cancel Click it to return to previous web page. After finished the settings above, click Apply to save the file. Vigor2760 Series User’s Guide...
Page 303: Reboot System
Apply. Click it to process the system reboot. Apply Under the Advanced tab, you might choose a schedule profile to perform the system reboot. After finished the configuration, click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 304: Firmware Upgrade
Download the newest firmware from DrayTek's web site or FTP site to your hard disk. The DrayTek web site is www.DrayTek.com (or local DrayTek's web site) and FTP site is ftp.DrayTek.com. Available parameters are listed below: Item Description Firmware for upload Click the Select button to locate the firmware you want from your hard disk.
Page 305: Advanced
Display current status (Activated or Not Activated) of the WCF license. Note: Refer to Chapter 2 to get detailed information. This page is used to choose the interface for WCF activation. After finished the selection, click Apply to save the settings. Vigor2760 Series User’s Guide...
Page 306: Diagnostics
Display the gateway address or 0.0.0.0 if none set. Mask Display the netmask for the destination net; '255.255.255.255' is for a host destination and '0.0.0.0' is for the default route. Display interface to which packets for this route will be sent. Interface Vigor2760 Series User’s Guide...
Page 307: Ipv6 Routing Table
This table display the routing table based on IPv6. Vigor2760 Series User’s Guide...
Page 308: Arp Cache Table
Display interface to which packets for this route will be sent. The table shows a mapping between an Ethernet hardware address (MAC Address) and an IPv6 address. This information is helpful in diagnosing network problems, such as IP address conflicts, etc. Vigor2760 Series User’s Guide...
Page 309: Dhcp Table
It displays the MAC address for the specified PC that DHCP assigned IP address for it. IP Address It displays the IP address assigned by this router for specified Host It displays the host ID name of the specified PC. Vigor2760 Series User’s Guide...
Page 310: Data Flow Monitor
Display the number (minutes) of the time quota remained. Display the number of the data quota remained. Data Quota Data Quota Unit Display the unit (MB or GB) of data quota. TX/RX Rate (Bbps) Display the transmitting/receiving speed used by such user. Vigor2760 Series User’s Guide...
Page 311 If you did not configure such settings for such user under User Management>>Privilege, it is impossible for you to modify the value here. Data Quota Change the value if you want. If you did not configure such settings for such user under Vigor2760 Series User’s Guide...
Page 312: System Table
Each item will be explained as follows: Item Description CPU Loading / The used memory and remaining capacity will be displayed. Memory Usage Click it to refresh the web page. Refresh Basic system information will be seen by clicking Diagnostics>>System Table>>System Information. Vigor2760 Series User’s Guide...
Page 313 Display the speed for incoming /outgoing traffic via such router. Line Rate Uptime Display the duration time when the router connects to Internet. System Time Display the time of the system. Related information of DSL interface will be seen by clicking Diagnostics>>System Table>>DSL Information. Vigor2760 Series User’s Guide...
Page 314 Related information of hardware panel and LED will be seen by clicking Diagnostics>>System Table>>NamePlate. Vigor2760 Series User’s Guide...
Page 315: Traffic Graph
Each item will be explained as follows: Item Description Choose the interface to display the traffic graph about it. Interface Apply Click it to confirm the interface selection. Refresh Click it to refresh the web page. Vigor2760 Series User’s Guide...
Page 316: Web Syslog
Click it to rest to factory default settings. Refresh Click it to refresh the web page. Date Display the date of the record. Time Display the time of the record. Display related information for firewall/VPN/User Message Access/Interface/System. Vigor2760 Series User’s Guide...
Page 317: Trouble Shooting
Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “1.3 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor2760 Series User’s Guide...
Page 318: For Windows
Open All Programs>>Getting Started>>Control Panel. Click Network and Sharing Center. In the following window, click Change adapter settings. Icons of network connection will be shown on the window. Right-click on Local Area Connection and click on Properties. Vigor2760 Series User’s Guide...
Page 319 Select Internet Protocol Version 4 (TCP/IP) and then click Properties. Select Obtain an IP address automatically and Obtain DNS server address automatically. Finally, click OK. Vigor2760 Series User’s Guide...
Page 320: For Mac Os
Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2760 Series User’s Guide...
Page 321: Pinging The Router From Your Computer
Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor2760 Series User’s Guide...
Page 322: Checking If The Isp Settings Are Ok Or Not
Open Network>>WAN and check whether the ISP settings are set correctly. Vigor2760 Series User’s Guide...
Page 323: Backing To Factory Default Setting If Necessary
5 seconds. When you see the ACT LED blinks rapidly, please release the button. Then, the router will restart with the default configuration. After restore the factory default setting, you can configure the settings for the router again to fit your personal request. Vigor2760 Series User’s Guide...
Page 324: Contacting Draytek
If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Vigor2760 Series User’s Guide...
