CompactFlash Memory Card Interface Description

3.3.10. I/O Write (Output) Timing Specification

A[10:0]
-REG
-CE
-IOWR
-IOIS16
t df IOIS16(ADR)
D[15::0]
1. All timings are measured at the CompactFlash Memory Card.
2. Skews and delays from the host system driver/receiver to the CompactFlash Memory Card must be accounted for by
the system design.
3. D[15::0] signifies data provided by the host system to the CompactFlash Memory Card.
3-14
t su REG(IOWR)
t su CE(IOWR)
t w (IOWR)
t su A(IOWR)
t su (IOWR)

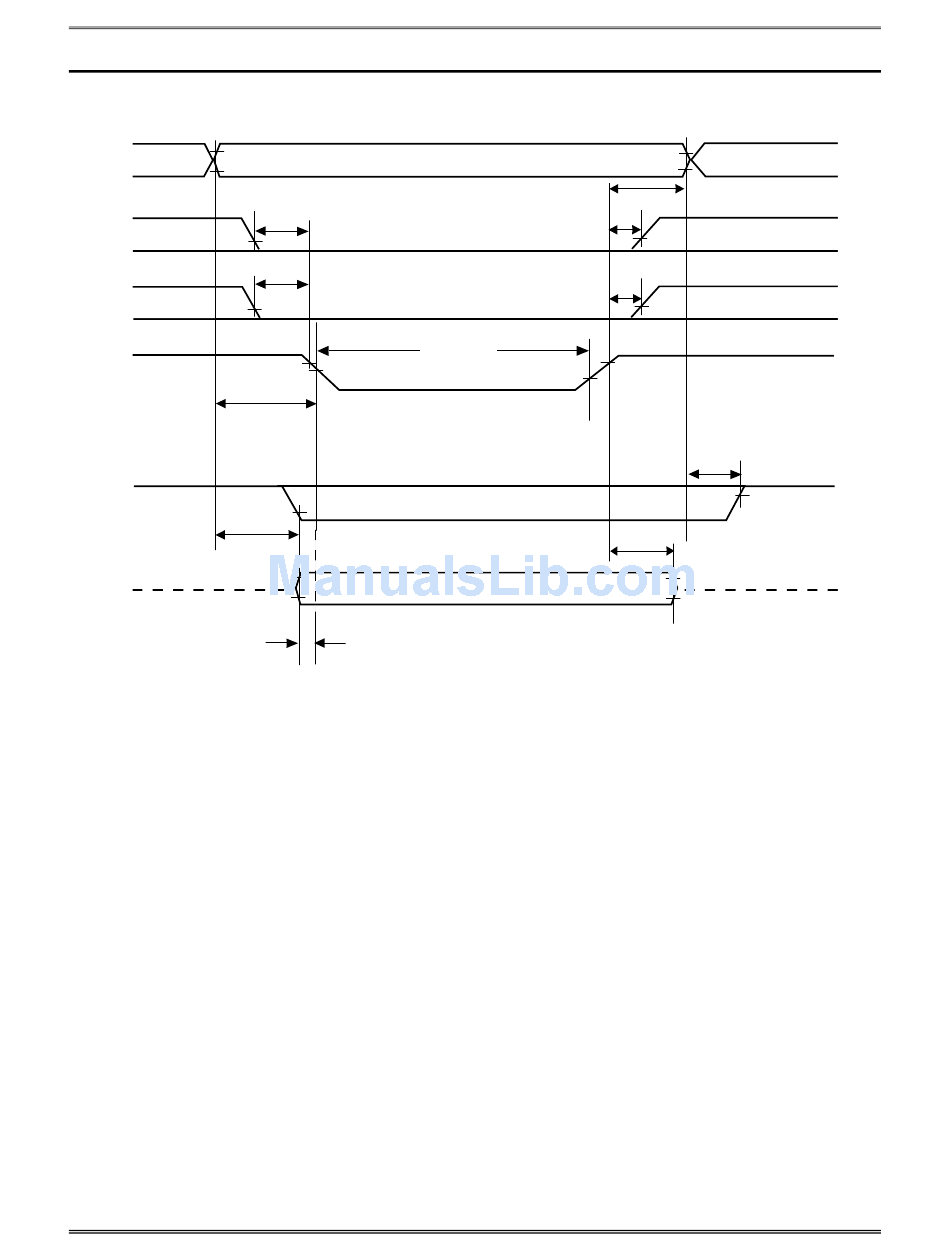

Figure 3-4. I/O Write Timing Diagram
®
CompactFlash Memory Card Product Manual, Rev. 10.0 © 2002 SANDISK CORPORATION
t h A(IOWR)
t h REG(IOWR)
t h CE(IOWR)
t h (IOWR)
t dr IOIS16(ADR)
