I/O Read (Input) Timing Specification - SanDisk CompactFlash Product Manual

CompactFlash Memory Card Interface Description

3.3.9. I/O Read (Input) Timing Specification

A[10:0]
-REG
-CE
-IORD
t su A(IORD)
-INPACK
-IOIS16
t df IOIS16(ADR)
D[15::0]
1. All timings are measured at the CompactFlash Memory Card.
2. Skews and delays from the host system driver/receiver to the CompactFlash Memory Card must be accounted for by
the system design.
3. D[15::0] signifies data provided by the CompactFlash Memory Card to the host system.
3-12
t su REG(IORD)
t su CE(IORD)
t w (IORD)
t df INPACK(IORD)
t d (IORD)

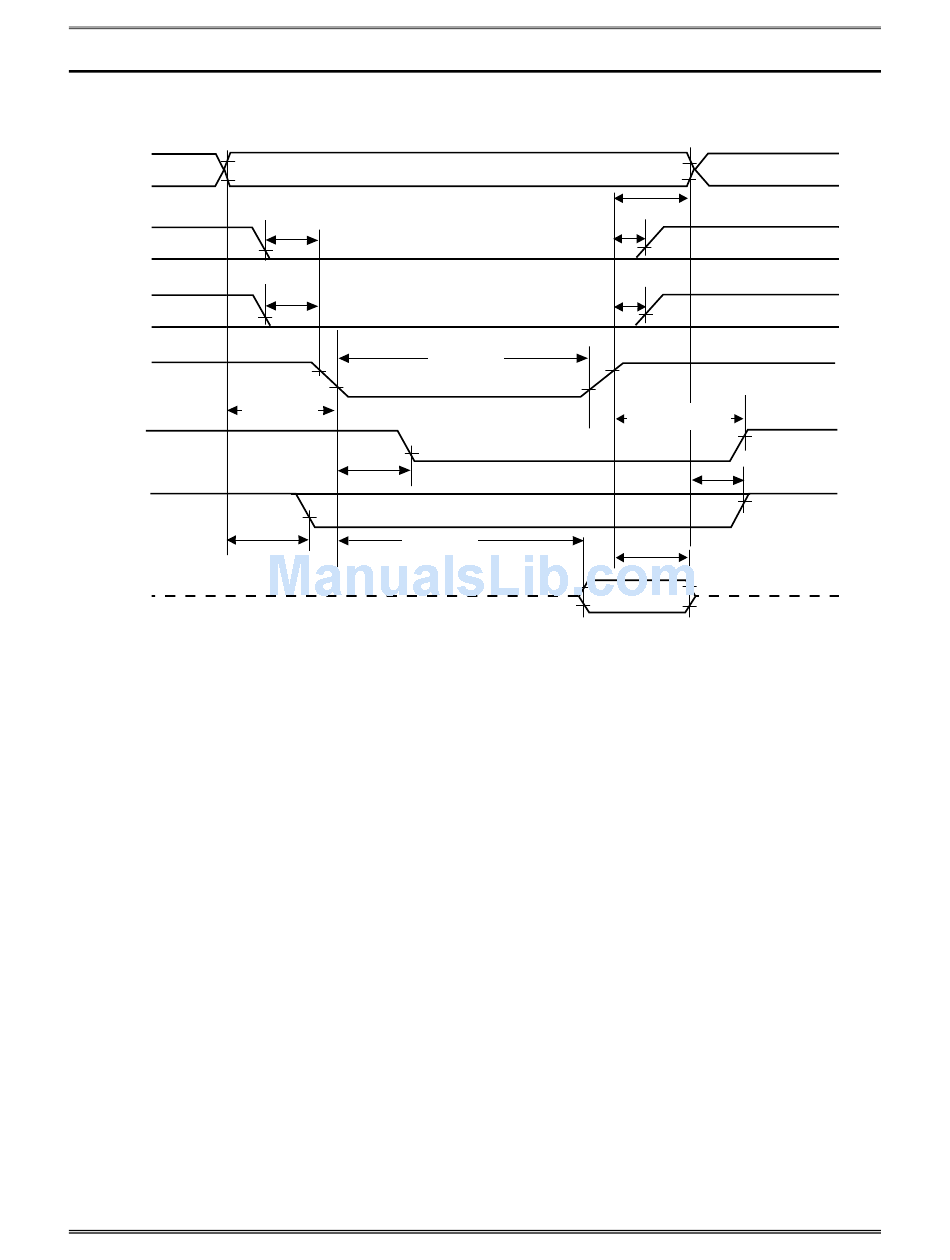

Figure 3-3. I/O Read Timing Diagram
®
CompactFlash Memory Card Product Manual, Rev. 10.0 © 2002 SANDISK CORPORATION
t h A(IORD)
t h REG(IORD)
t h CE(IORD)
t dr INPACK(IORD)
t h (IORD)
t dr IOIS16(ADR)
