4.6.5 PE Sensor Holder

1. Remove the APG Assy. (p.89)
2. Remove the PE Sensor connector cable from the five tabs on the Release Holder
Assy and the two tabs on the Head Cable Cover.
Head Cable Cover
Release Holder Assy.

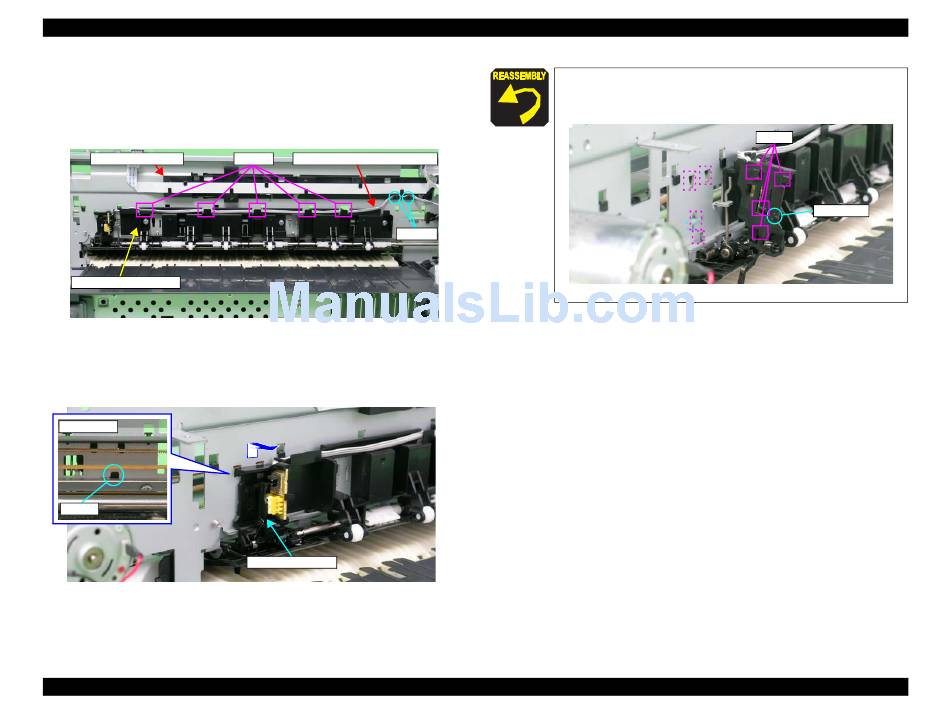

Figure 4-171. Releasing the Cables
3. Release the tabs that secure the PE Sensor Holder from the notch on the Main
Frame with a flathead screwdriver, and slide the PE Sensor Holder upwards and
then remove it toward you.
Front Side
Tab
Figure 4-172. Removing the PE Sensor Holder
Disassembly And Assembly
Tabs PE Sensor connector cable
Tabs
PE Sensor Holder
Removing the Sensors
Align the four tabs and guide pin on the PE Sensor Holder with the
positioning holes on the Main Frame correctly so that there is no
gap between the PE Sensor Holder and the Main Frame.
Figure 4-173. Reinstalling the PE Sensor
Revision E
Tabs
Guide
Guide pin
