4.5.2 PF Motor

1. Remove the Printer Mechanism. (Refer to 4.4.4 Lower Housing / Printer
Mechanism (p.96))
2. Disconnect the PF Motor connector cable from connector CN116 (black) on the
Main Board, and remove it from the Clamp on the Main Frame.
3. Remove the two C.C. M3 x 4 screws that secure the PF Motor.
4. Remove the PF Drive Belt from the PF Motor Pinion Gear, and remove the PF
Motor from the Printer Mechanism.
CN116

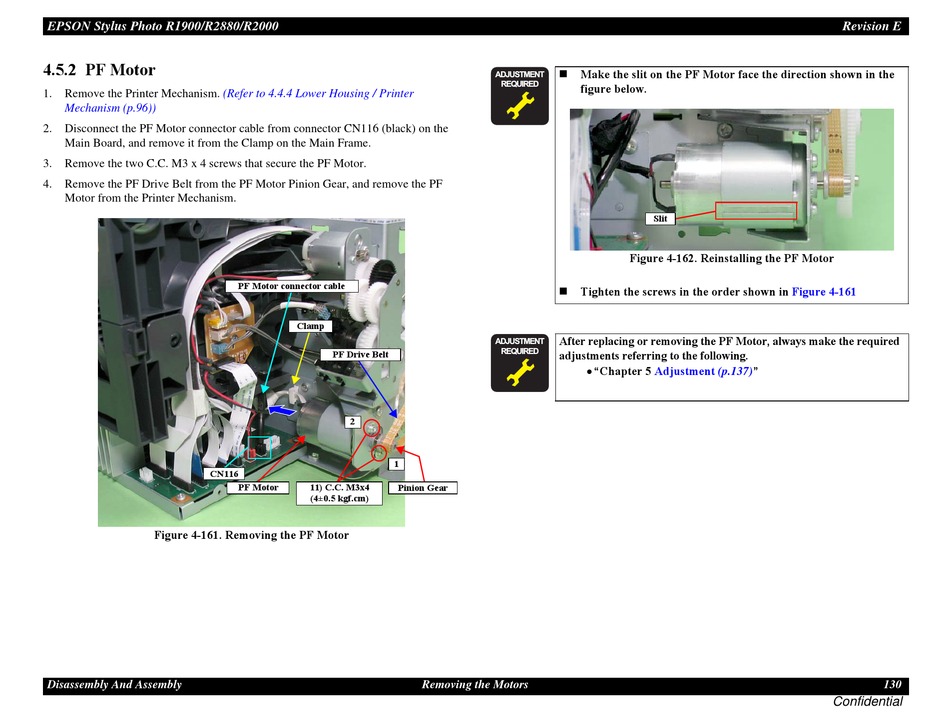

Figure 4-161. Removing the PF Motor
Disassembly And Assembly
PF Motor connector cable
Clamp
PF Drive Belt
2
1
PF Motor 11) C.C. M3x4
Pinion Gear
(4±0.5 kgf.cm)
 Make the slit on the PF Motor face the direction shown in the
A D J U S T M E N T
R E Q U I R E D
figure below.
 Tighten the screws in the order shown in
After replacing or removing the PF Motor, always make the required
A D J U S T M E N T
R E Q U I R E D
adjustments referring to the following.
 "Chapter 5
Removing the Motors
Slit
Figure 4-162. Reinstalling the PF Motor
Figure 4-161
Adjustment
(p.137)"
