EPSON Stylus Photo R1900/R2880/R2000

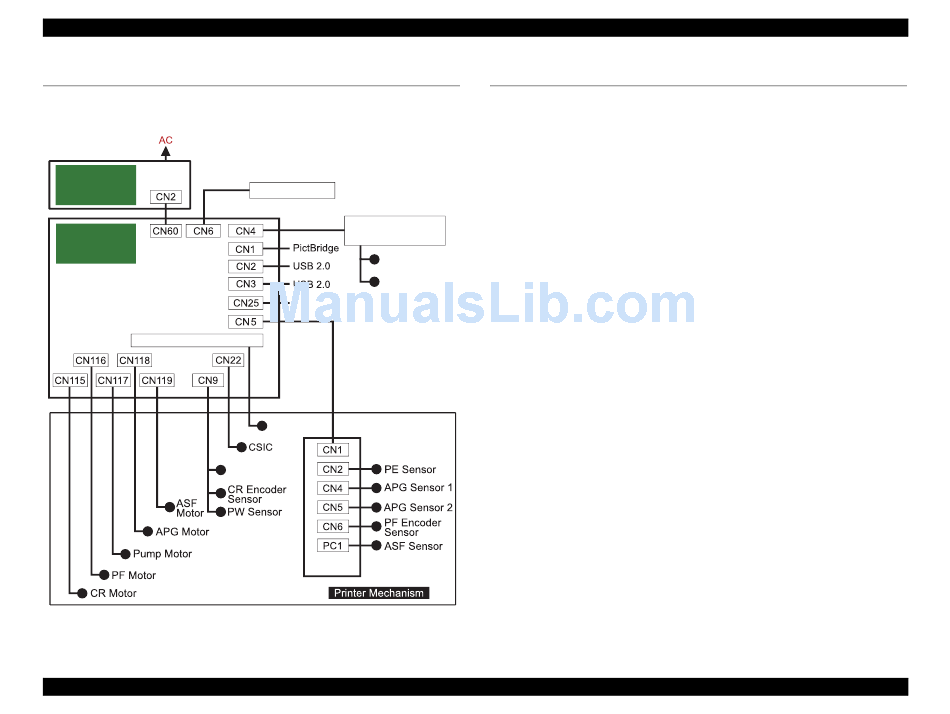

7.1 Connector Summary

This section shows the connections between the main components of the printer.
C698MAIN
(Power Supply
Board)
C698MAIN
(Main Board)
CN11, CN12, CN13, CN14
Table 7-1. Connection of the Major Components
Appendix
C698 LED Board
Control Panel
(C698 Panel Board)
CDR Sensor
Cover Open
Sensor
High Voltage Module
Printhead
Ink Mark
Sensor
Relay
Board

7.2 Exploded Diagram / Parts List

This manual does not provide exploded diagrams or parts list.
For the information, see SPI (Service Parts Information).
