EPSON Stylus Photo R1900/R2880/R2000

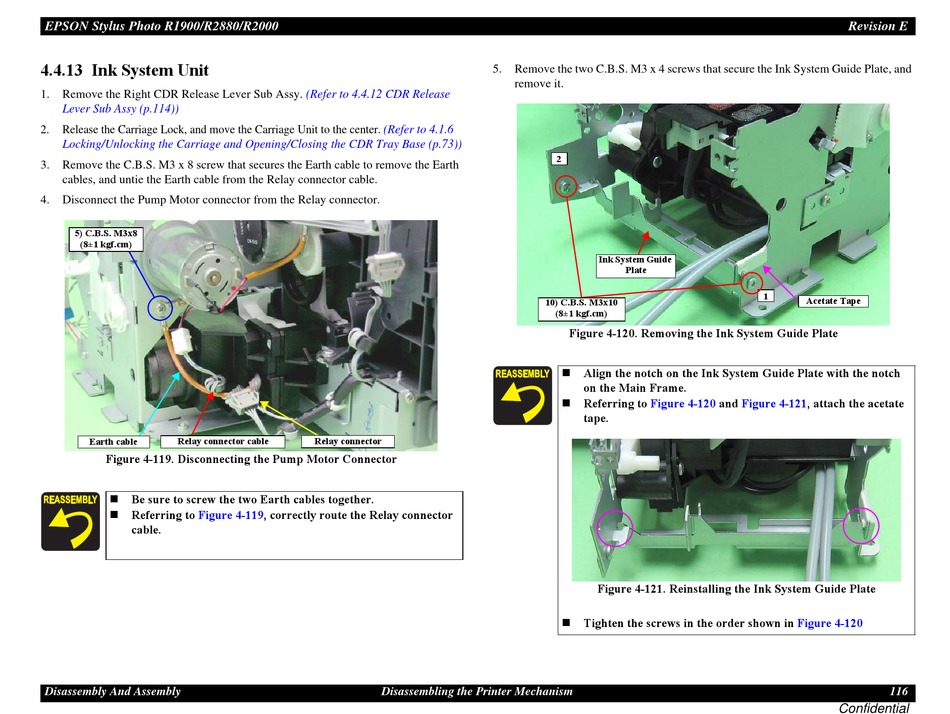

4.4.13 Ink System Unit

1. Remove the Right CDR Release Lever Sub Assy.
Lever Sub Assy (p.114))
2. Release the Carriage Lock, and move the Carriage Unit to the center.
Locking/Unlocking the Carriage and Opening/Closing the CDR Tray Base (p.73))
3. Remove the C.B.S. M3 x 8 screw that secures the Earth cable to remove the Earth
cables, and untie the Earth cable from the Relay connector cable.
4. Disconnect the Pump Motor connector from the Relay connector.
5) C.B.S. M3x8
(8±1 kgf.cm)
Earth cable Relay connector cable
Figure 4-119. Disconnecting the Pump Motor Connector
 Be sure to screw the two Earth cables together.
 Referring to Figure
cable.
Disassembly And Assembly
(Refer to 4.4.12 CDR Release
(Refer to 4.1.6
Relay connector
4-119, correctly route the Relay connector
Disassembling the Printer Mechanism
5. Remove the two C.B.S. M3 x 4 screws that secure the Ink System Guide Plate, and
remove it.
2
Ink System Guide
Plate
10) C.B.S. M3x10
(8±1 kgf.cm)
Figure 4-120. Removing the Ink System Guide Plate
 Align the notch on the Ink System Guide Plate with the notch
on the Main Frame.
 Referring to Figure 4-120
tape.
Figure 4-121. Reinstalling the Ink System Guide Plate
 Tighten the screws in the order shown in
Revision E
1
Acetate Tape
and Figure 4-121, attach the acetate
Figure 4-120
116
Confidential
