Stylus Photo R1900/R2880/R2000

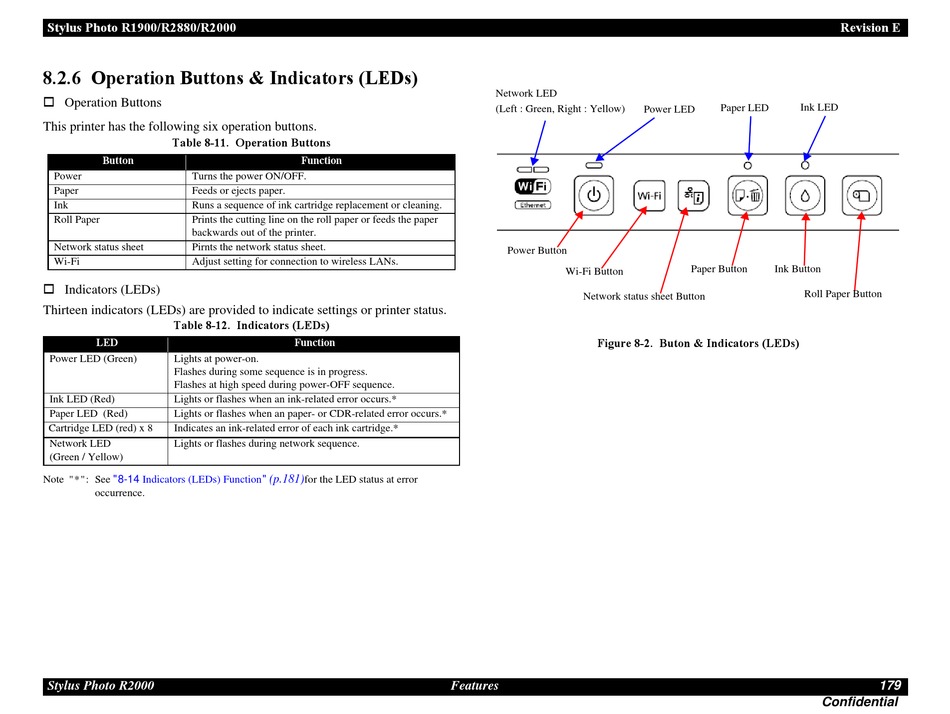

8.2.6 Operation Buttons & Indicators (LEDs)
 Operation Buttons
This printer has the following six operation buttons.
Table 8-11. Operation Buttons
Button
Power Turns the power ON/OFF.
Paper Feeds or ejects paper.
Ink Runs a sequence of ink cartridge replacement or cleaning.
Roll Paper Prints the cutting line on the roll paper or feeds the paper
backwards out of the printer.
Network status sheet Pirnts the network status sheet.
Wi-Fi Adjust setting for connection to wireless LANs.
 Indicators (LEDs)
Thirteen indicators (LEDs) are provided to indicate settings or printer status.
Table 8-12. Indicators (LEDs)
LED
Power LED (Green) Lights at power-on.
Flashes during some sequence is in progress.
Flashes at high speed during power-OFF sequence.
Ink LED (Red) Lights or flashes when an ink-related error occurs.*
Paper LED (Red) Lights or flashes when an paper- or CDR-related error occurs.*
Cartridge LED (red) x 8 Indicates an ink-related error of each ink cartridge.*
Network LED Lights or flashes during network sequence.
(Green / Yellow)
Note "*": See "8-14 Indicators (LEDs) Function"
occurrence.
Stylus Photo R2000
Function
Function
(p.181)
for the LED status at error
Network LED
(Left : Green, Right : Yellow)
Power Button
Wi-Fi Button
Network status sheet Button
Figure 8-2. Buton & Indicators (LEDs)
Features
Paper LED Ink LED
Power LED
Paper Button Ink Button
Roll Paper Button
Confidential
Revision E
179
