EPSON Stylus Photo R1900/R2880/R2000

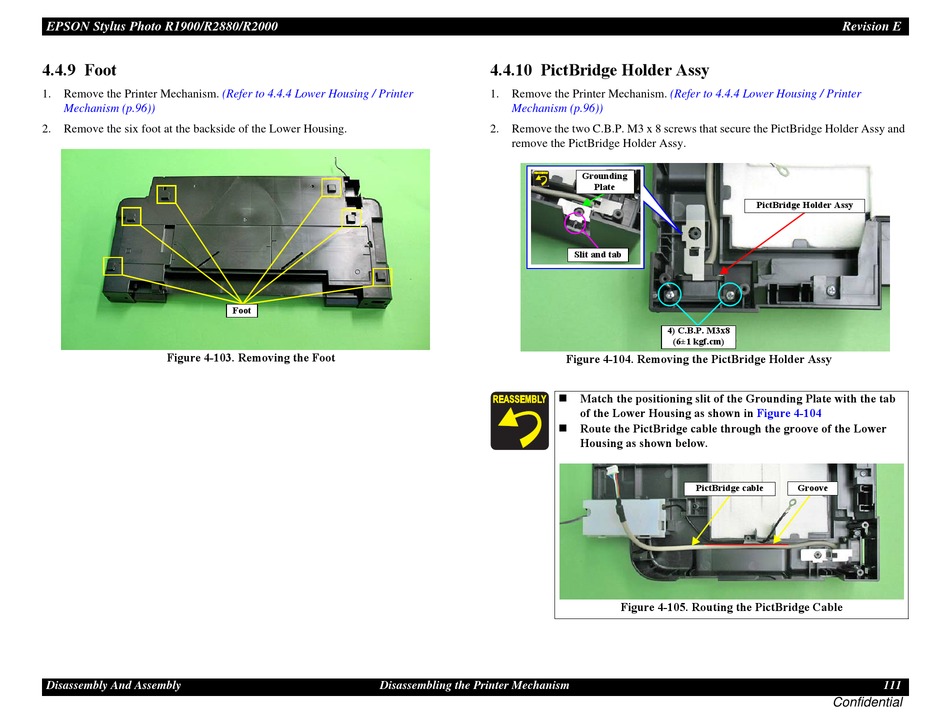

4.4.9 Foot

1. Remove the Printer Mechanism. (Refer to 4.4.4 Lower Housing / Printer
Mechanism (p.96))
2. Remove the six foot at the backside of the Lower Housing.
Figure 4-103. Removing the Foot
Disassembly And Assembly
Foot
Disassembling the Printer Mechanism

4.4.10 PictBridge Holder Assy

1. Remove the Printer Mechanism. (Refer to 4.4.4 Lower Housing / Printer
Mechanism (p.96))
2. Remove the two C.B.P. M3 x 8 screws that secure the PictBridge Holder Assy and
remove the PictBridge Holder Assy.
Grounding
Plate
Slit and tab
4) C.B.P. M3x8
Figure 4-104. Removing the PictBridge Holder Assy
 Match the positioning slit of the Grounding Plate with the tab
of the Lower Housing as shown in
 Route the PictBridge cable through the groove of the Lower
Housing as shown below.
Figure 4-105. Routing the PictBridge Cable
Revision E
PictBridge Holder Assy
(6±1 kgf.cm)
Figure 4-104
PictBridge cable Groove
Confidential
111
