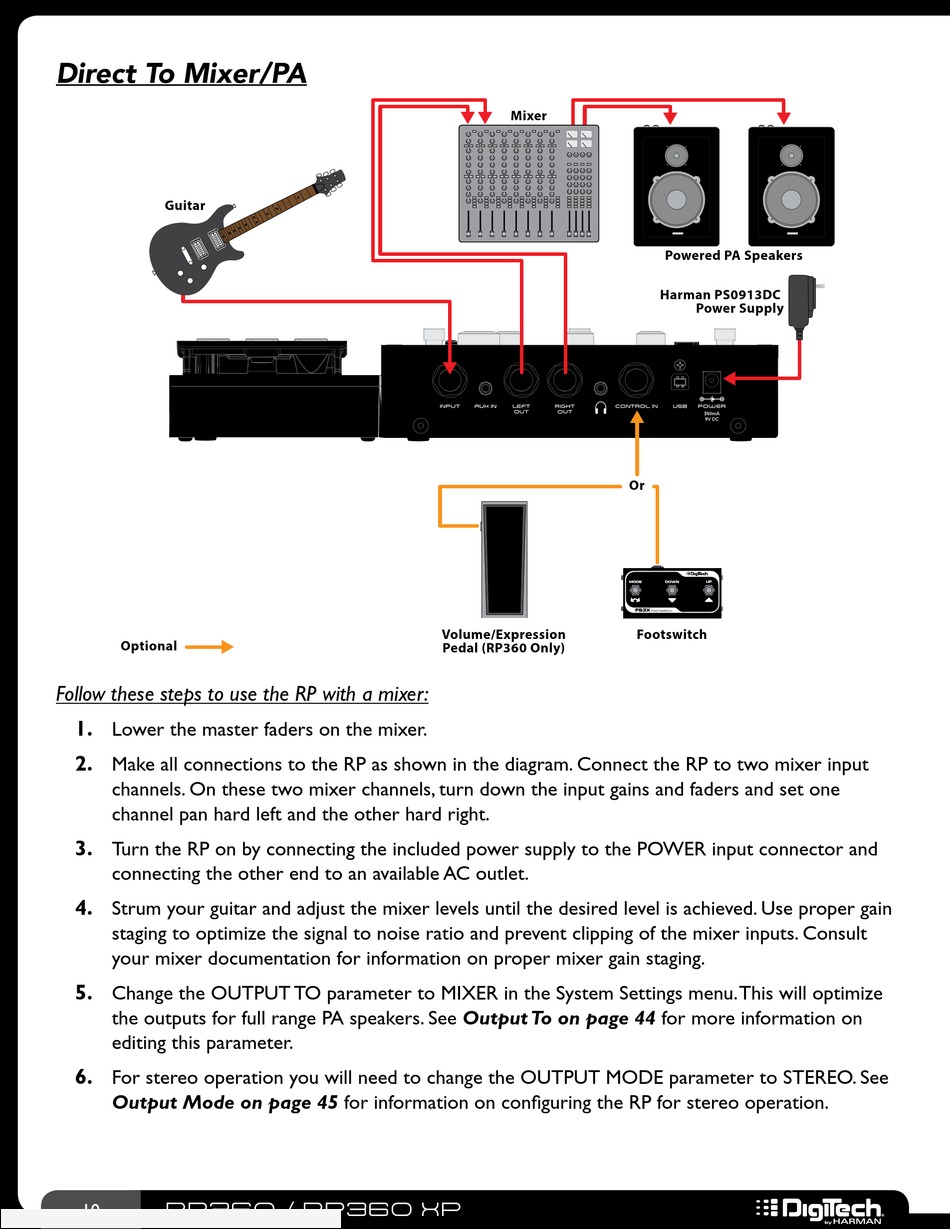

Direct To Mixer - DigiTech RP360 Owner's Manual

Direct To Mixer/PA
Guitar
Optional
Follow these steps to use the RP with a mixer:
1�
Lower the master faders on the mixer�
2�
Make all connections to the RP as shown in the diagram� Connect the RP to two mixer input
channels� On these two mixer channels, turn down the input gains and faders and set one
channel pan hard left and the other hard right�
3�
Turn the RP on by connecting the included power supply to the POWER input connector and
connecting the other end to an available AC outlet�
4�
Strum your guitar and adjust the mixer levels until the desired level is achieved� Use proper gain
staging to optimize the signal to noise ratio and prevent clipping of the mixer inputs� Consult
your mixer documentation for information on proper mixer gain staging�
5�
Change the OUTPUT TO parameter to MIXER in the System Settings menu� This will optimize
the outputs for full range PA speakers� See Output To on page 44 for more information on
editing this parameter�
6�
For stereo operation you will need to change the OUTPUT MODE parameter to STEREO� See
Output Mode on page 45 for information on configuring the RP for stereo operation�
RP360 / RP360 XP
10
Mixer
Volume/Expression
Pedal (RP360 Only)
Powered PA Speakers
Harman PS0913DC
Power Supply
Or
Footswitch
