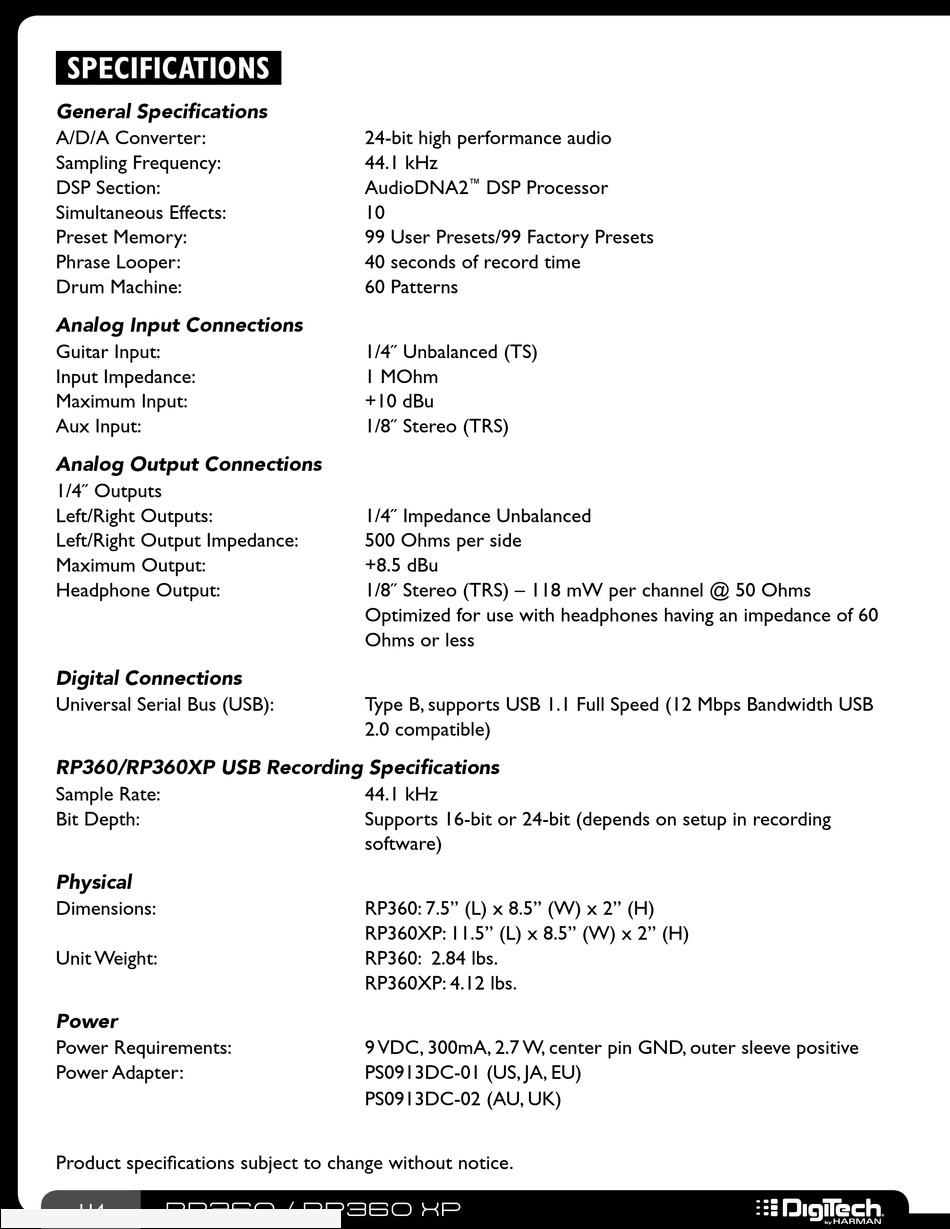

SPECIFICATIONS

General Specifications
A/D/A Converter:
Sampling Frequency:
DSP Section:
Simultaneous Effects:
Preset Memory:
Phrase Looper:
Drum Machine:
Analog Input Connections
Guitar Input:
Input Impedance:
Maximum Input:
Aux Input:
Analog Output Connections
1/4˝ Outputs
Left/Right Outputs:
Left/Right Output Impedance:
Maximum Output:
Headphone Output:
Digital Connections
Universal Serial Bus (USB):
RP360/RP360XP USB Recording Specifications
Sample Rate:
Bit Depth:
Physical
Dimensions:
Unit Weight:
Power
Power Requirements:
Power Adapter:
Product specifications subject to change without notice�
RP360 / RP360 XP
114
24-bit high performance audio
44�1 kHz
AudioDNA2 DSP Processor
™
10
99 User Presets/99 Factory Presets
40 seconds of record time
60 Patterns
1/4˝ Unbalanced (TS)
1 MOhm
+10 dBu
1/8˝ Stereo (TRS)
1/4˝ Impedance Unbalanced
500 Ohms per side
+8�5 dBu
1/8˝ Stereo (TRS) – 118 mW per channel @ 50 Ohms
Optimized for use with headphones having an impedance of 60
Ohms or less
Type B, supports USB 1�1 Full Speed (12 Mbps Bandwidth USB
2�0 compatible)
44�1 kHz
Supports 16-bit or 24-bit (depends on setup in recording
software)
RP360: 7�5" (L) x 8�5" (W) x 2" (H)
RP360XP: 11�5" (L) x 8�5" (W) x 2" (H)
RP360: 2�84 lbs�
RP360XP: 4�12 lbs�
9 VDC, 300mA, 2�7 W, center pin GND, outer sleeve positive
PS0913DC-01 (US, JA, EU)
PS0913DC-02 (AU, UK)
