P370/P470 Keyless RF Scanners Product Reference Guide
8. The indicator light on the cradle blinks, signifying successful power-up.
9. Scan the appropriate Synapse bar codes to set up the Synapse cable for your
specifications.
10. Rotate the antenna to the vertical position.
Wand Emulation, OCIA, OCR, Keyboard Wedges
See the appropriate Synapse cable instructions. An adapter cable is required.

Wall Mounting

Before wall-mounting the cradle, the scanner support tab must be changed from the desk-
mount position to the wall-mount position.
1. Lift the scanner support tab out of the top part of the cradle and replace it in the
wall-mount position.
1-6
Desk Mount

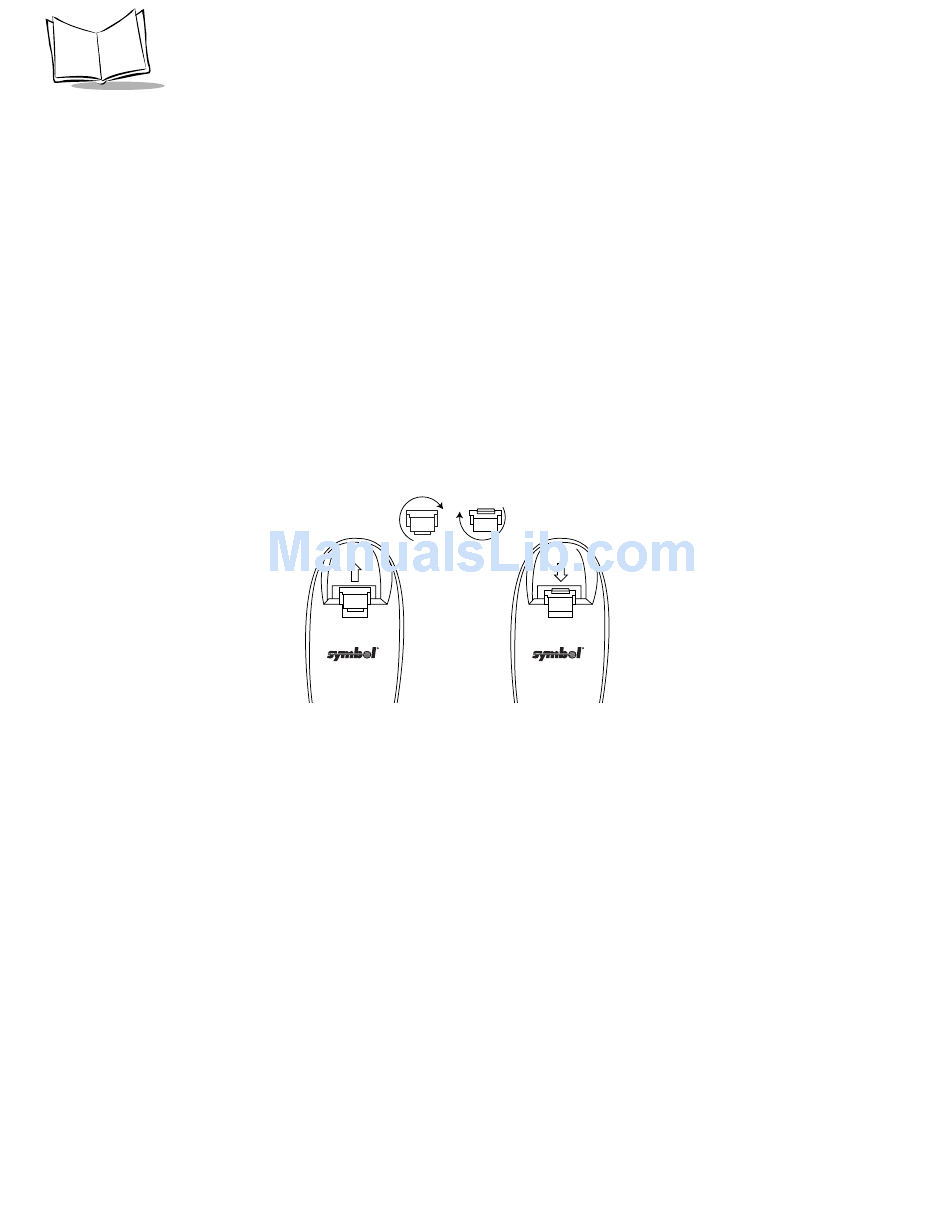

Figure 1-4. Scanner Support Tab
Wall Mount
