For IN5312a (XGA)

Adjusting the horizontal image position

With the lens in the center position the horizontal image position can be adjusted to the left or right by
up to a maximum of 5% of the image width. Note that the maximum horizontal image height
adjustment can be limited by the vertical image position. For example it is not possible to achieve the
maximum horizontal image position if the vertical image position is at maximum. Please consult the

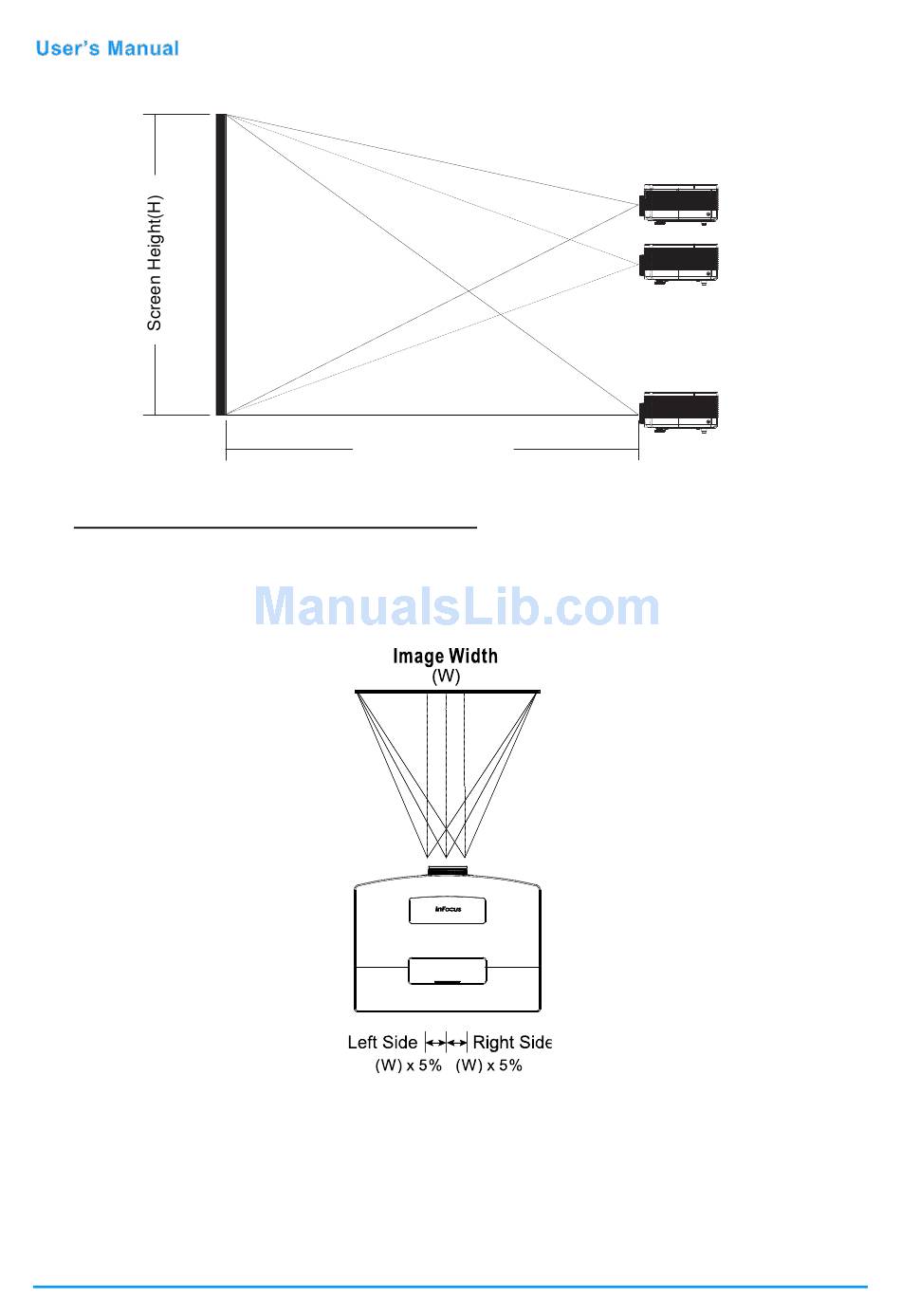

Shift Range diagram below for further clarification.
Distance(H)
— 16 —
-60% offset
-50% offset
0% offset
