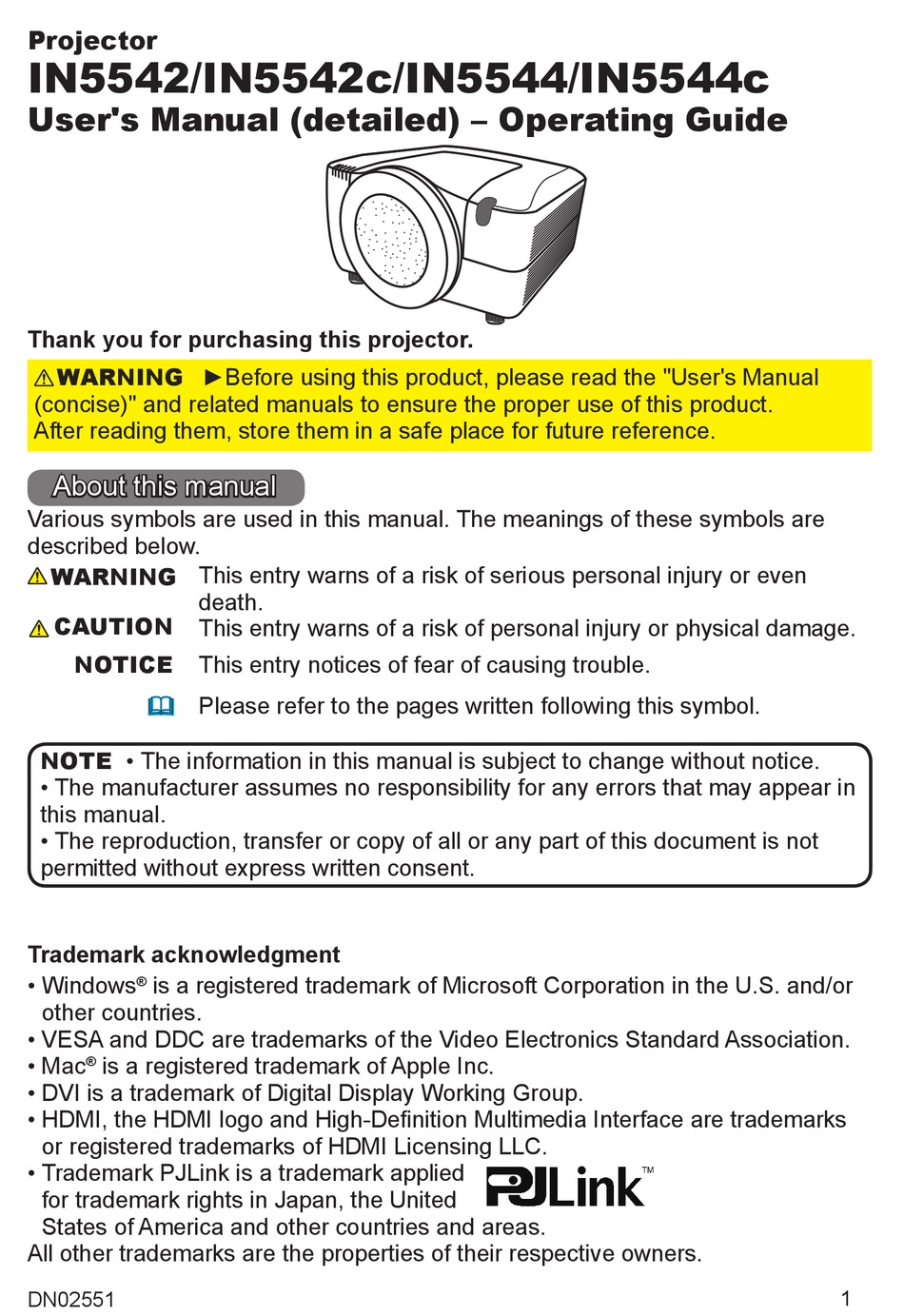

Projector
IN5542/IN5542c/IN5544/IN5544c
User's Manual (detailed) – Operating Guide
Thank you for purchasing this projector.
WARNING
(concise)" and related manuals to ensure the proper use of this product.
After reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
CAUTION
NOTICE
NOTE
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
• Windows
is a registered trademark of Microsoft Corporation in the U.S. and/or
®
other countries.
• VESA and DDC are trademarks of the Video Electronics Standard Association.
• Mac
is a registered trademark of Apple Inc.
®
• DVI is a trademark of Digital Display Working Group.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
• Trademark PJLink is a trademark applied
for trademark rights in Japan, the United
States of America and other countries and areas.
All other trademarks are the properties of their respective owners.
DN02551
►Before using this product, please read the "User's Manual
This entry warns of a risk of serious personal injury or even
death.
This entry warns of a risk of personal injury or physical damage.
This entry notices of fear of causing trouble.
Please refer to the pages written following this symbol.
