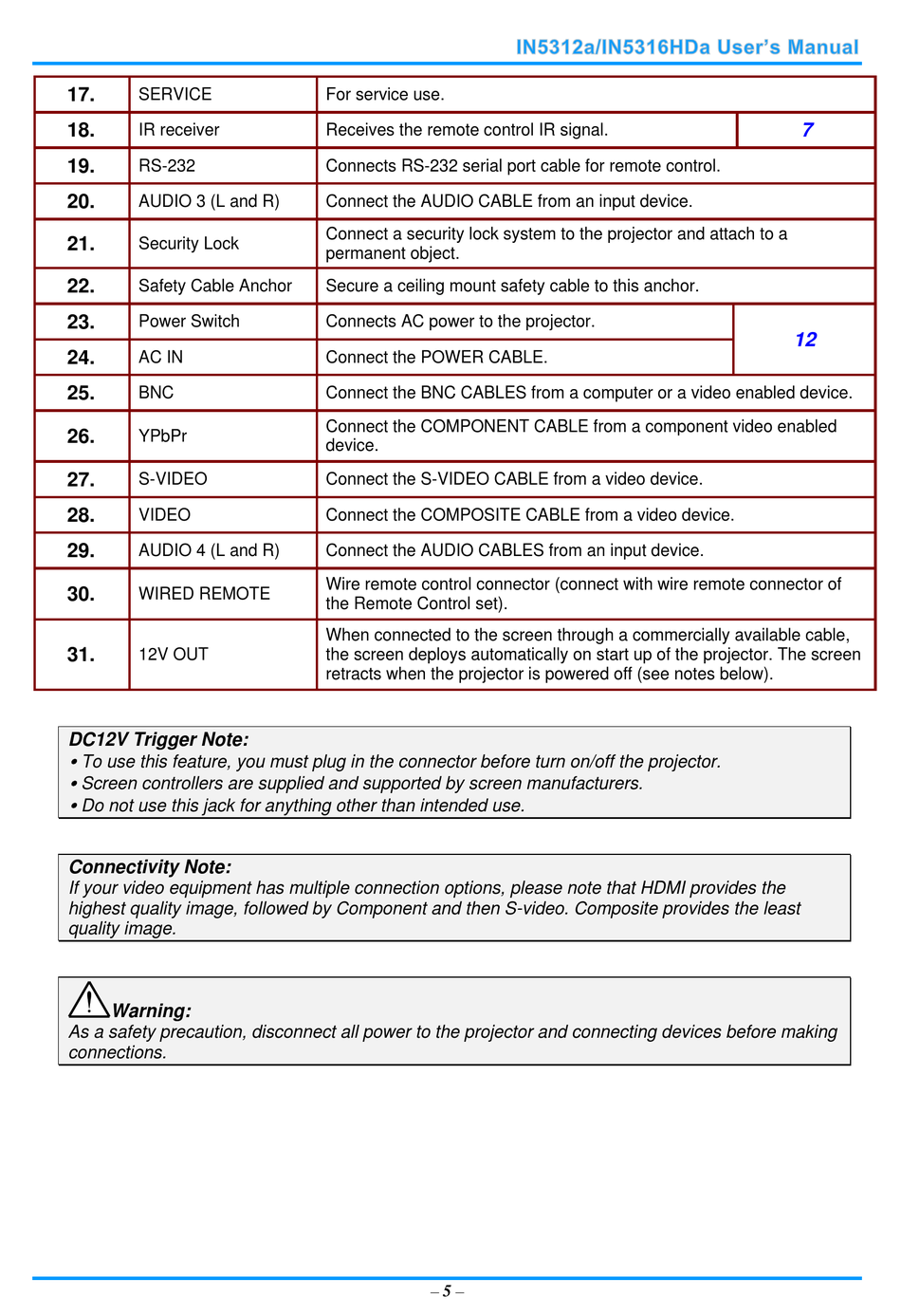

InFocus IN5212a User Manual page 12

17.
SERVICE
18.
IR receiver
19.
RS-232
20.
AUDIO 3 (L and R)
21.
Security Lock
22.
Safety Cable Anchor
23.
Power Switch
24.
AC IN
25.
BNC
26.
YPbPr
27.
S-VIDEO
28.
VIDEO
29.
AUDIO 4 (L and R)
30.
WIRED REMOTE
31.
12V OUT
DC12V Trigger Note:

To use this feature, you must plug in the connector before turn on/off the projector.

Screen controllers are supplied and supported by screen manufacturers.

Do not use this jack for anything other than intended use.
Connectivity Note:
If your video equipment has multiple connection options, please note that HDMI provides the
highest quality image, followed by Component and then S-video. Composite provides the least
quality image.
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
For service use.
Receives the remote control IR signal.
Connects RS-232 serial port cable for remote control.
Connect the AUDIO CABLE from an input device.
Connect a security lock system to the projector and attach to a
permanent object.
Secure a ceiling mount safety cable to this anchor.
Connects AC power to the projector.
Connect the POWER CABLE.
Connect the BNC CABLES from a computer or a video enabled device.
Connect the COMPONENT CABLE from a component video enabled
device.
Connect the S-VIDEO CABLE from a video device.
Connect the COMPOSITE CABLE from a video device.
Connect the AUDIO CABLES from an input device.
Wire remote control connector (connect with wire remote connector of
the Remote Control set).
When connected to the screen through a commercially available cable,
the screen deploys automatically on start up of the projector. The screen
retracts when the projector is powered off (see notes below).
– 5 –
7
12
