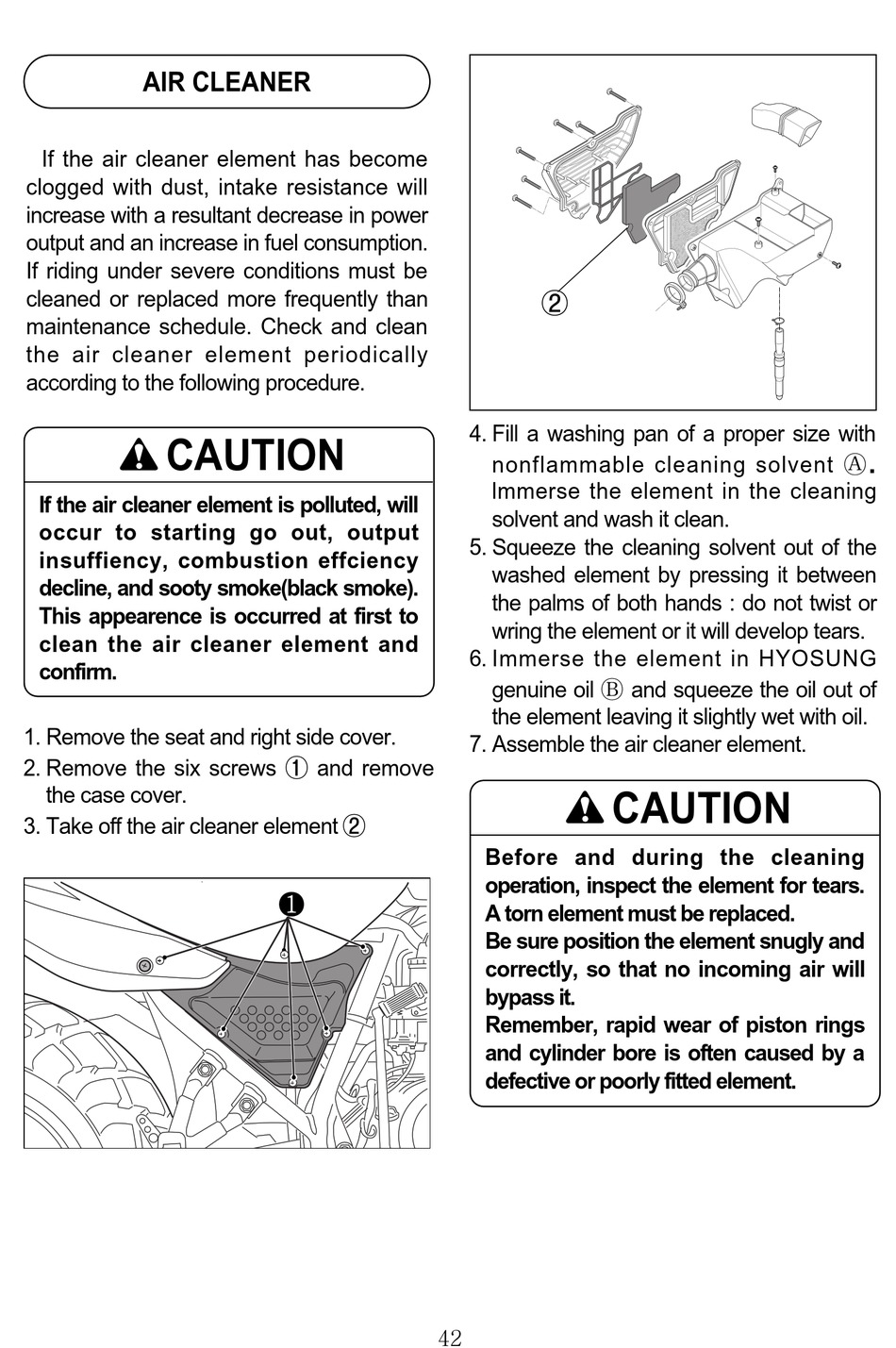

AIR CLEANER

If the air cleaner element has become
clogged with dust, intake resistance will
increase with a resultant decrease in power
output and an increase in fuel consumption.
If riding under severe conditions must be
cleaned or replaced more frequently than
maintenance schedule. Check and clean
the air cleaner element periodically
according to the following procedure.
CAUTION
If the air cleaner element is polluted, will
occur to starting go out, output
insuffiency, combustion effciency
decline, and sooty smoke(black smoke).
This appearence is occurred at first to
clean the air cleaner element and
confirm.
1. Remove the seat and right side cover.
2. Remove the six screws
the case cover.
3. Take off the air cleaner element
and remove
�
탐탈
4. Fill a washing pan of a proper size with
nonflammable cleaning solvent
lmmerse the element in the cleaning
solvent and wash it clean.
5. Squeeze the cleaning solvent out of the
washed element by pressing it between
the palms of both hands : do not twist or
wring the element or it will develop tears.
6. Immerse the element in HYOSUNG
�
genuine oil and squeeze the oil out of
the element leaving it slightly wet with oil.
7. Assemble the air cleaner element.
CAUTION
Before and during the cleaning
operation, inspect the element for tears.
A torn element must be replaced.
Be sure position the element snugly and
correctly, so that no incoming air will
bypass it.
Remember, rapid wear of piston rings
and cylinder bore is often caused by a
defective or poorly fitted element.
