Table of Contents
Break-In Information
Safe Riding Recommendation
Accessory Installation and Precaution Safety Tips
Table of Contents
Serial Number Location
Fuel and Oil Recommendation
Names of each Part (Comet 250R & Comet 125R)
Dashboard and Handlebars (Comet 250R & Comet 125R)
Left Side View (Comet 250R & Comet 125R)
Right Side View (Comet 250R & Comet 125R)
Dashboard and Handlebars View (Comet 250 & Comet 125)
Left Side View (Comet 250 & Comet 125)
Right Side View (Comet 250 & Comet 125)
Controls
Ignition Switch
Ignition Key
Instrument Panel (Comet 250R and Comet 125R)
Tachometer
Turn Signal Indicator Lamp
High Beam and Neutral Indicator Lamp
Fuel Meter
Odometer/Trip Meter
Clock
Select Switch
Speedometer
Reset Switch
Instrument Panel (Comet 250 and Comet 125)
Trip Meter/Odometer/Speedometer
Fuel Meter/Tachometer/Turn Signal Indicator Lamp
Neutral Indicator Lamp/High Beam Indicator Lamp
Left Handle Switch (Comet 250R and Comet 125R)
Clutch Lever/Pass Switch
Dimmer Switch/Turn Signal Switch
Horn Switch
Right Handle Switch (Comet 250R and Comet 125R)
Engine Stop Switch
Front Brake Lever/Throttle Grip
Light Switch
Starter Switch
Carburetor Choke Lever
Rear Brake Pedal
Gearshift Lever
Footrests
Gearshift Link Rod for Comet 250R and Comet 125R's Optional Parts
Side Stand
Seat Lock
Trunk
Rear Shock Absorber
Gasoline
Engine Oil/Engine Oil Level Check
Engine Oil and Filter Change
Engine Oil Capacity Chart
Oil Filter Installation
Riding Tips
Starting the Engine
Starting off
Using the Transmission
Riding on Hills
Stopping and Parking
Break-In
Inspection before Riding
Periodic Maintenance
Lubrication Points
Lubrication Points Diagram
Engine Maintenance Chart
Chassis Maintenance Chart
Inspection and Maintenance
Tool Kit
Engine Oil/Fuel Hose/Gasoline Inspection
Front Fork Inspection
Rear Shock Absorber Inspection
Inspection of Battery Solution Level
Clean of Battery Terminal
Air Cleaner Inspection
Air Cleaner Oil Drain Plug Inspection
Spark Plug Inspection and Replacement
Carburetor Inspection
Idling Speed
Throttle Cable Adjustment
Clutch Cable Inspection
Clutch Cable Adjustment
Drive Chain Inspection
Drive Chain Adjustment
Drive Chain Cleaning and Oiling
Brakes Inspection
Brake Fluid
Brake Pads
Brake Disk Inspection
Front/Rear Brake Fluid Supply
Front/Rear Brake Lamp Switch
Tire Inspection
Tire Pressure
Cracks and Cuts on Tires
Tire Tread Condition
Rear Axle Nut
Tire Replacement
Replacement of the Lamp
Head Lamp Replacement
Turn Signal/Tail/Brake Lamp Replacement
License Plate Lamp Replacement
Fuse Replacement
Troubleshooting
When the Engine Refuses to Start/Engine Staling
Cleaning the Vehicle
Inspection after Cleaning
Label
Specifications - Comet 250R and Comet 250
Specifications - Comet 125R and Comet 125
Advertisement
Quick Links
1
Fuel and Oil Recommendation
Download this manual
See also:
Service Manual
HYOSUNG MOTORS & MACHINERY INC.
Part No. 99011HM8110
For U.S.A
DEC. 2005.
3rd Ed.
Printed in KOREA
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for HYOSUNG GT 125 R
Motorcycle HYOSUNG GT 250 R Service Manual
(38 pages)
Motorcycle Hyosung Aquila 250 Service Manual
(206 pages)
Motorcycle HYOSUNG COMET 125 Service Manual
(199 pages)
Motorcycle HYOSUNG Aquila GT250 Ej Service Manual
(122 pages)
Motorcycle HYOSUNG Comet 250 R User Manual
Hyosung bike (82 pages)
Motorcycle HYOSUNG GT 125R Manual
(80 pages)
Motorcycle HYOSUNG GT250 Brochure
(24 pages)
Motorcycle HYOSUNG GT 650 EFI Owner's Manual
(91 pages)
Motorcycle HYOSUNG GT250 REi Owner's Manual
(106 pages)
Motorcycle HYOSUNG GT650SR - PARTS CATALOGUE Parts Catalog
(124 pages)
Motorcycle HYOSUNG COMET GT125 - CATALOGUE Manual
(115 pages)
Motorcycle HYOSUNG COMET GT125 EURO 3 - CATALOGUE Manual
Euro-3 (117 pages)
Motorcycle HYOSUNG GT650 User Manual
(88 pages)
Motorcycle HYOSUNG AQUILA 650 FI Service Manual
(90 pages)
Motorcycle HYOSUNG GT 650 Service Manual
(210 pages)
Motorcycle HYOSUNG GV250 EI Service Manual
(102 pages)
Summary of Contents for HYOSUNG GT 125 R
Page 1

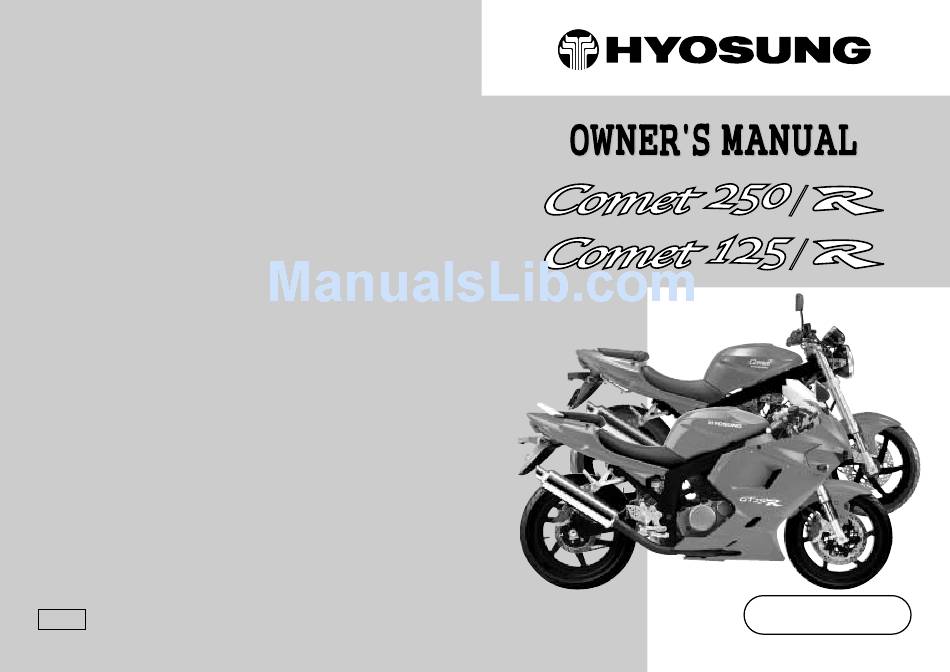

HYOSUNG MOTORS & MACHINERY INC. Part No. 99011HM8110 For U.S.A DEC. 2005. 3rd Ed. Printed in KOREA...
