3.7 Cutter Module Installation (Option)

1. Pull the top cover open levers to open the top cover.
2. Remove the front panel from the lower cover.
3. Lift and hold the top cover while pushing down and sliding the cover support
arm backwards to release.
4. Use a screwdriver to remove 6 screws on the lower inner cover.
Screws
Front Panel
Lower Inner Cover

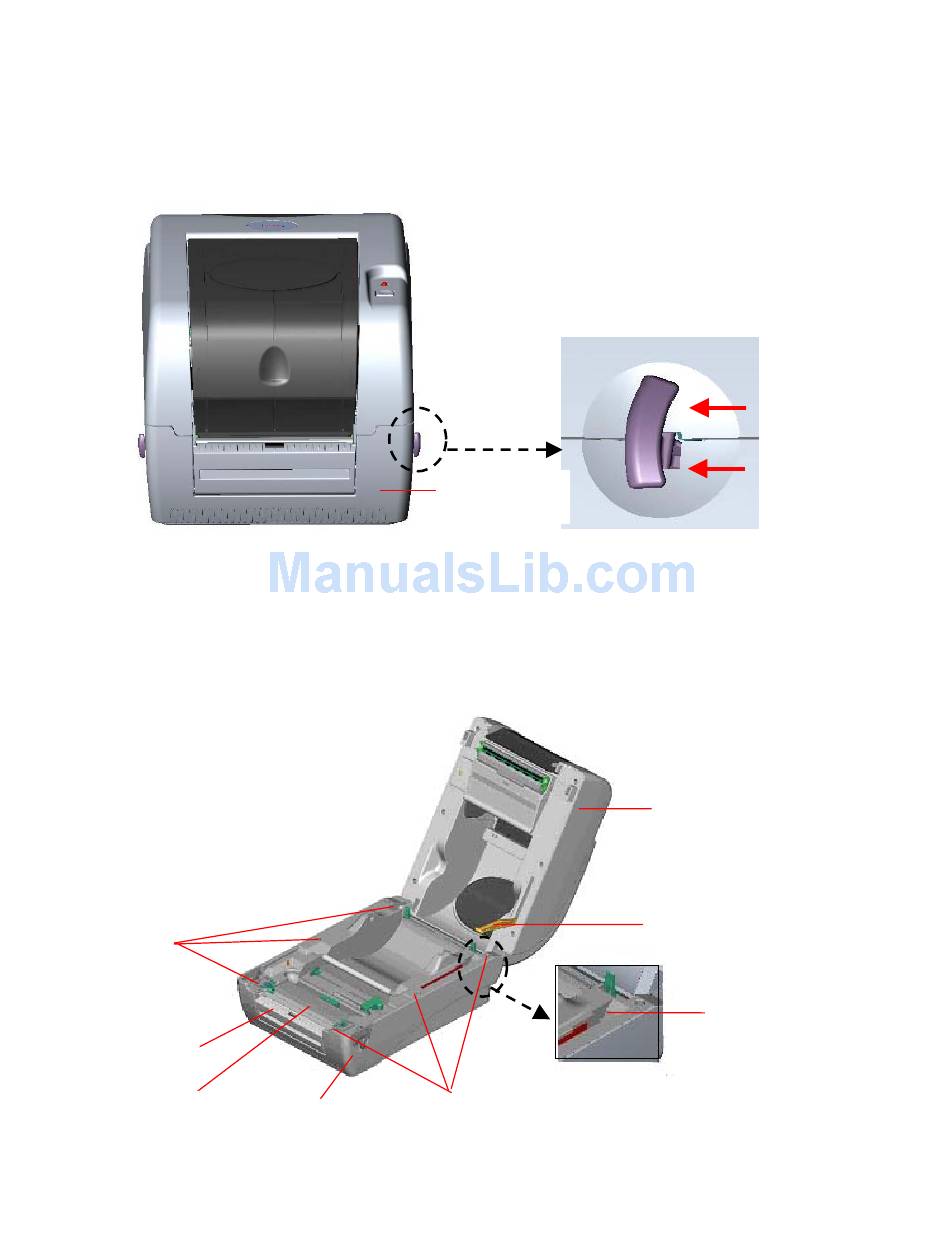

Fig. 23 Remove 6 screws from lower inner cover
Document #120522 Rev-A
Lower Cover
Fig. 22 Pull the lever to open the cover
Screws
Lower Cover
17
Top Cover
Top Cover Support
Flute
