3.6.1 Loading Labels into Peel-off Module

Note: Both thermal paper and plain paper labels apply for peel-off
function, neither PVC nor vinyl work with peel-off function.
1. Insert a 1" label spindle into a label roll.
2. Open the printer top cover by pulling the top cover open levers. The top cover
support will hold the printer top cover.
Peel-off panel
Backing paper
Opening
3. Install the label roll onto the paper roll mount.
4. Open the peel-off panel by pulling it forward.
Peel-off
panel
Document #120522 Rev-A

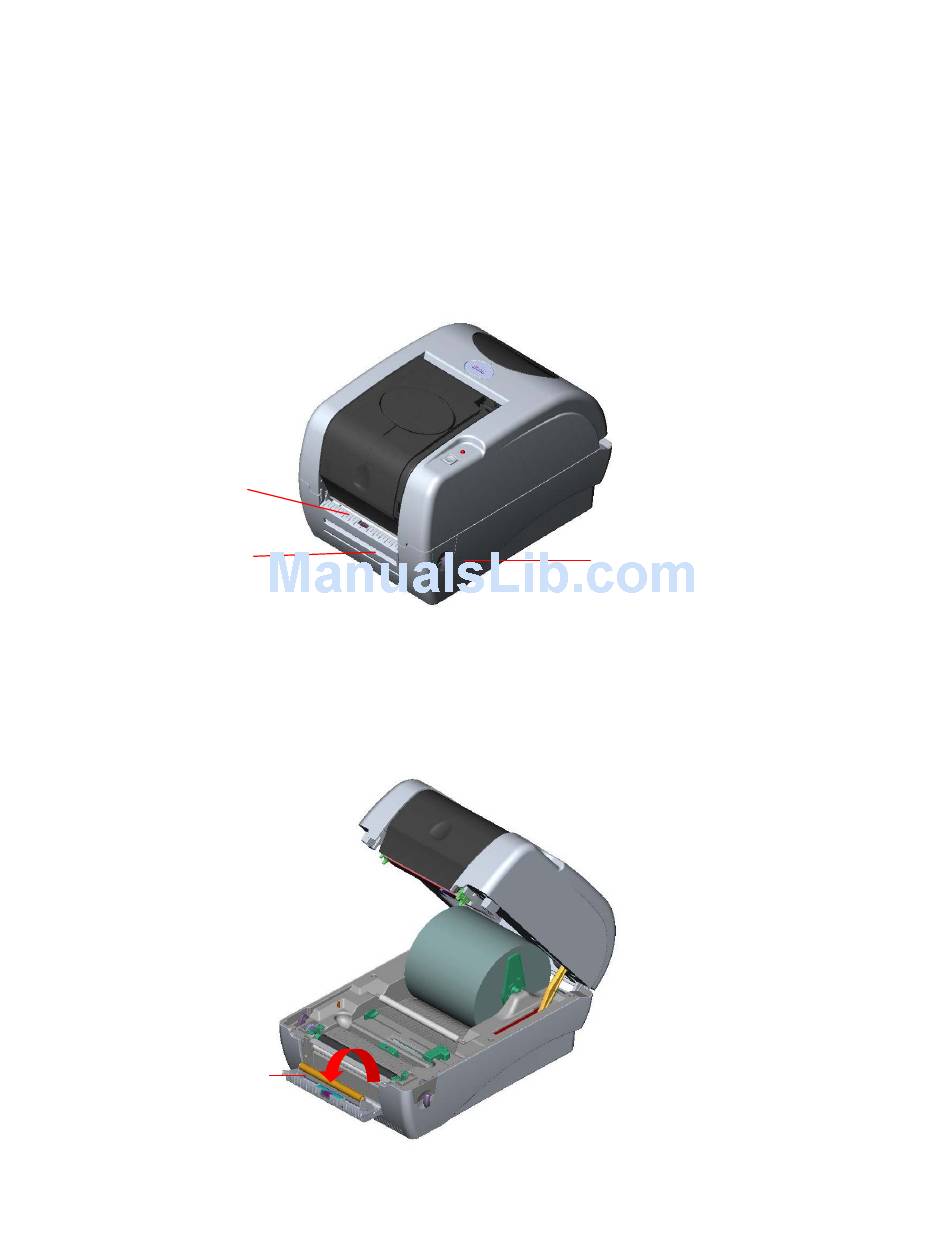

Fig. 18 Open the top cover
Fig. 19 Open the peel-off panel
15
Top Cover Open Lever
