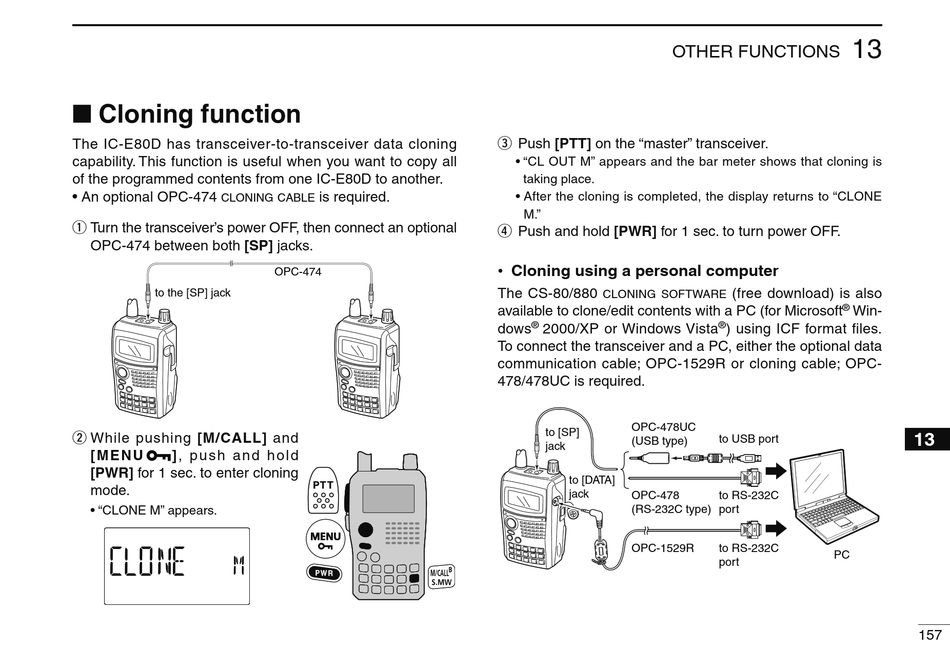

Cloning function

The IC-E80D has transceiver-to-transceiver data cloning
capability. This function is useful when you want to copy all
of the programmed contents from one IC-E80D to another.
• An optional OPC-474
CLONING CABLE
q Turn the transceiver's power OFF, then connect an optional
OPC-474 between both [SP] jacks.
to the [SP] jack
w While pushing [M/CALL] and
[ M E N U ] , p u s h a n d h o l d
[PWR] for 1 sec. to enter cloning
mode.
• "CLONE M" appears.
is required.
OPC-474
OTHER FUNCTIONS
e Push [PTT] on the "master" transceiver.
• "CL OUT M" appears and the bar meter shows that cloning is
taking place.
• After the cloning is completed, the display returns to "CLONE
M."
r Push and hold [PWR] for 1 sec. to turn power OFF.
• Cloning using a personal computer
The CS-80/880
CLONING SOFTWARE
available to clone/edit contents with a PC (for Microsoft
®
dows 2000/XP or Windows Vista
To connect the transceiver and a PC, either the optional data
communication cable; OPC-1529R or cloning cable; OPC-
478/478UC is required.
OPC-478UC
to [SP]
(USB type)
jack
to [DATA]
jack
OPC-478
(RS-232C type)
OPC-1529R
13
(free download) is also
®
Win-
®
) using ICF format files.
to USB port
to RS-232C
port
to RS-232C
PC
port
