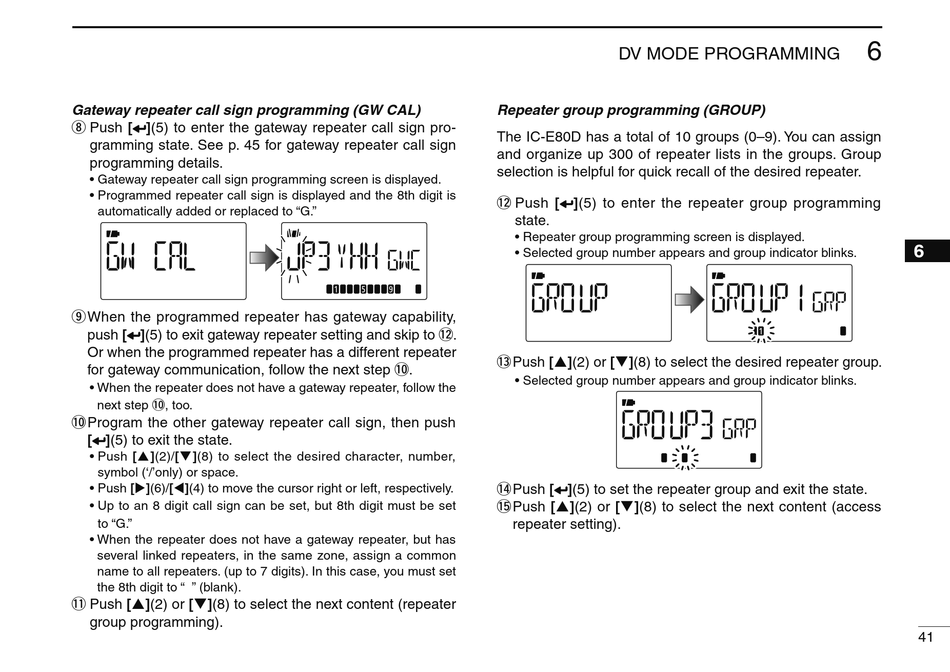

Gateway repeater call sign programming (GW CAL)
i Push [ ](5) to enter the gateway repeater call sign pro-
gramming state. See p. 45 for gateway repeater call sign
programming details.
• Gateway repeater call sign programming screen is displayed.
• Programmed repeater call sign is displayed and the 8th digit is
automatically added or replaced to "G."
o When the programmed repeater has gateway capability,
push [ ](5) to exit gateway repeater setting and skip to !2 .
Or when the programmed repeater has a different repeater
for gateway communication, follow the next step !0 .
• When the repeater does not have a gateway repeater, follow the
next step !0 , too.
!0 Program the other gateway repeater call sign, then push
[ ](5) to exit the state.
• Push [ ](2)/[ ](8) to select the desired character, number,
symbol ('/'only) or space.
• Push [ ](6)/[ ](4) to move the cursor right or left, respectively.
• Up to an 8 digit call sign can be set, but 8th digit must be set
to "G."
• When the repeater does not have a gateway repeater, but has
several linked repeaters, in the same zone, assign a common
name to all repeaters. (up to 7 digits). In this case, you must set
the 8th digit to " " (blank).
!1 Push [ ](2) or [ ](8) to select the next content (repeater
group programming).
DV MODE PROGRAMMING
Repeater group programming (GROUP)
The IC-E80D has a total of 10 groups (0–9). You can assign
and organize up 300 of repeater lists in the groups. Group
selection is helpful for quick recall of the desired repeater.
!2 Push [ ](5) to enter the repeater group programming
state.
• Repeater group programming screen is displayed.
• Selected group number appears and group indicator blinks.
!3 Push [ ](2) or [ ](8) to select the desired repeater group.
• Selected group number appears and group indicator blinks.
!4 Push [ ](5) to set the repeater group and exit the state.
!5 Push [ ](2) or [ ](8) to select the next content (access
repeater setting).
