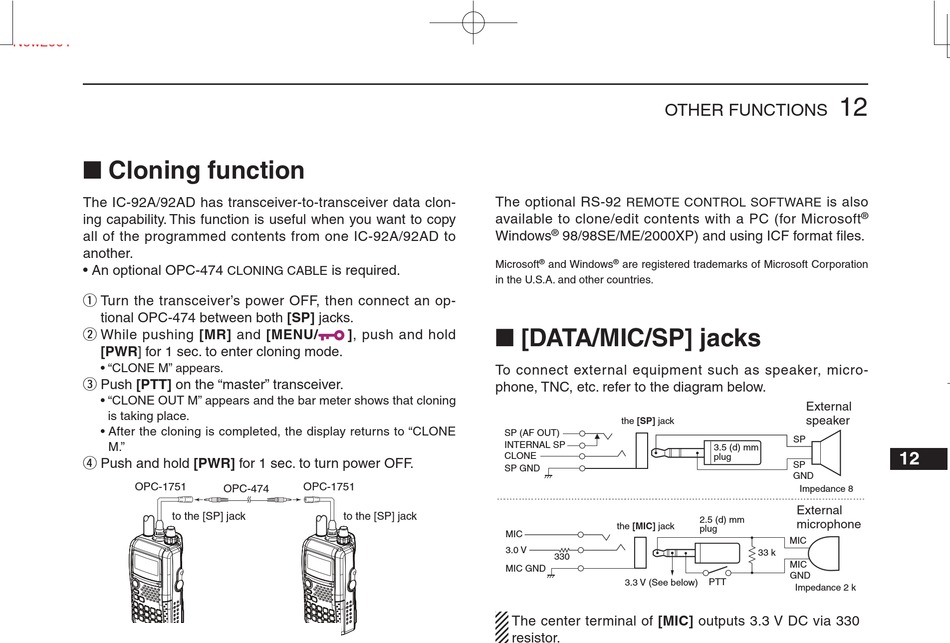

■ Cloning function
The IC-92A/92AD has transceiver-to-transceiver data clon-
ing capability. This function is useful when you want to copy
all of the programmed contents from one IC-92A/92AD to
another.
• An optional OPC-474
CLONING CABLE
q Turn the transceiver's power OFF, then connect an op-
tional OPC-474 between both [SP] jacks.
w While pushing [MR] and [MENU/
[PWR] for 1 sec. to enter cloning mode.
• "CLONE M" appears.
e Push [PTT] on the "master" transceiver.
• "CLONE OUT M" appears and the bar meter shows that cloning
is taking place.
• After the cloning is completed, the display returns to "CLONE
M."
r Push and hold [PWR] for 1 sec. to turn power OFF.
OPC-1751
OPC-474
to the [SP] jack
is required.
], push and hold
OPC-1751
to the [SP] jack
OTHER FUNCTIONS
The optional RS-92
REMOTE CONTROL SOFTWARE
available to clone/edit contents with a PC (for Microsoft
®
Windows
98/98SE/ME/2000XP) and using ICF format fi les.
®
®
Microsoft
and Windows
are registered trademarks of Microsoft Corporation
in the U.S.A. and other countries.
■ [DATA/MIC/SP] jacks
To connect external equipment such as speaker, micro-
phone, TNC, etc. refer to the diagram below.
the [SP] jack
SP (AF OUT)
INTERNAL SP
CLONE
SP GND
the [MIC] jack
MIC
3.0 V
330
MIC GND
3.3 V (See below)
The center terminal of [MIC] outputs 3.3 V DC via 330
resistor.
12
is also
®
External
speaker
SP
3.5 (d) mm
plug
SP
GND
Impedance 8
External
2.5 (d) mm
microphone
plug
MIC
33 k
MIC
GND
PTT
Impedance 2 k
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
131
