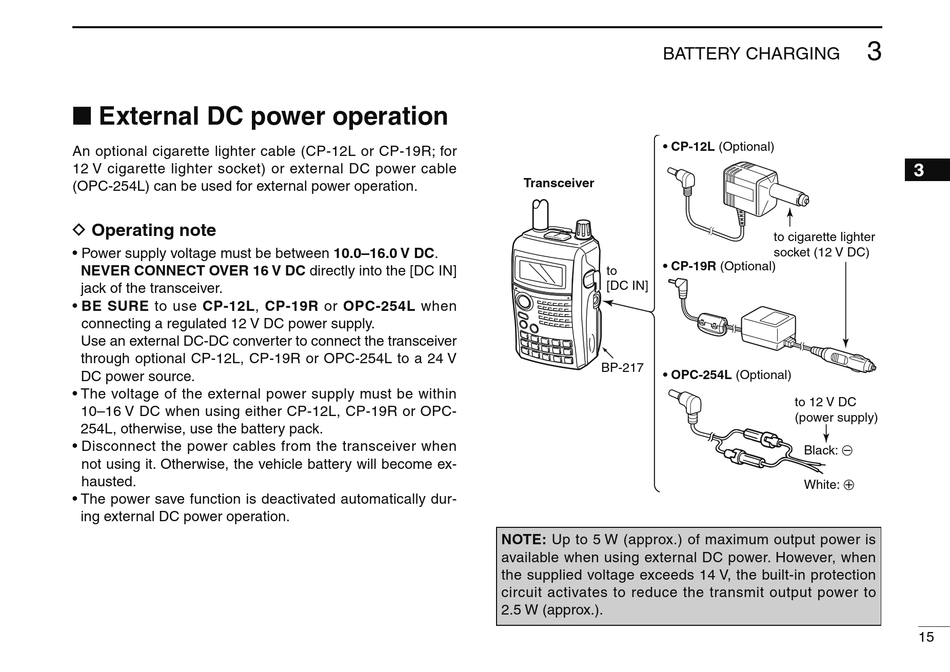

External DC power operation

An optional cigarette lighter cable (CP-12L or CP-19R; for
12 V cigarette lighter socket) or external DC power cable
(OPC-254L) can be used for external power operation.
D Operating note
• Power supply voltage must be between 10.0–16.0 V DC.
NEVER CONNECT OVER 16 V DC directly into the [DC IN]
jack of the transceiver.
• BE SURE to use CP-12L, CP-19R or OPC-254L when
connecting a regulated 12 V DC power supply.
Use an external DC-DC converter to connect the transceiver
through optional CP-12L, CP-19R or OPC-254L to a 24 V
DC power source.
• The voltage of the external power supply must be within
10–16 V DC when using either CP-12L, CP-19R or OPC-
254L, otherwise, use the battery pack.
• Disconnect the power cables from the transceiver when
not using it. Otherwise, the vehicle battery will become ex-
hausted.
• The power save function is deactivated automatically dur-
ing external DC power operation.
BATTERY CHARGING
• CP-12L (Optional)
Transceiver
• CP-19R (Optional)
to
[DC IN]
BP-217
• OPC-254L (Optional)
NOTE: Up to 5 W (approx.) of maximum output power is
available when using external DC power. However, when
the supplied voltage exceeds 14 V, the built-in protection
circuit activates to reduce the transmit output power to
2.5 W (approx.).
3
3
to cigarette lighter
socket (12 V DC)
to 12 V DC
(power supply)
Black: _
White: +
