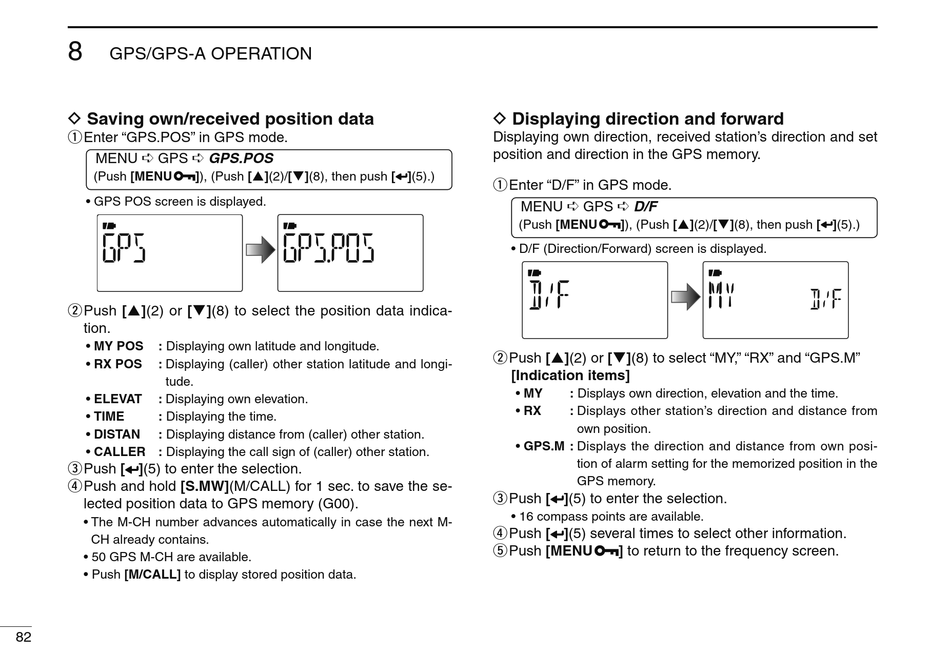

Icom IC-E80D Instruction Manual page 90

8
GPS/GPS-A OPERATION
D Saving own/received position data
q Enter "GPS.POS" in GPS mode.
MENU GPS
(Push [MENU
• GPS POS screen is displayed.
w Push [ ](2) or [ ](8) to select the position data indica-
tion.
• MY POS : Displaying own latitude and longitude.
• RX POS : Displaying (caller) other station latitude and longi-
tude.
• ELEVAT : Displaying own elevation.
• TIME : Displaying the time.
• DISTAN : Displaying distance from (caller) other station.
• CALLER : Displaying the call sign of (caller) other station.
e Push [ ](5) to enter the selection.
r Push and hold [S.MW](M/CALL) for 1 sec. to save the se-
lected position data to GPS memory (G00).
• The M-CH number advances automatically in case the next M-
CH already contains.
• 50 GPS M-CH are available.
• Push [M/CALL] to display stored position data.
82
GPS.POS
]), (Push [ ](2)/[ ](8), then push [ ](5).)
D Displaying direction and forward
Displaying own direction, received station's direction and set
position and direction in the GPS memory.
q Enter "D/F" in GPS mode.
MENU GPS D/F
(Push [MENU ]), (Push [ ](2)/[ ](8), then push [ ](5).)
• D/F (Direction/Forward) screen is displayed.
w Push [ ](2) or [ ](8) to select "MY," "RX" and "GPS.M"
[Indication items]
• MY : Displays own direction, elevation and the time.
• RX : Displays other station's direction and distance from
own position.
• GPS.M : Displays the direction and distance from own posi-
tion of alarm setting for the memorized position in the
GPS memory.
e Push [ ](5) to enter the selection.
• 16 compass points are available.
r Push [ ](5) several times to select other information.
t Push [MENU
] to return to the frequency screen.
