13
OTHER FUNCTIONS

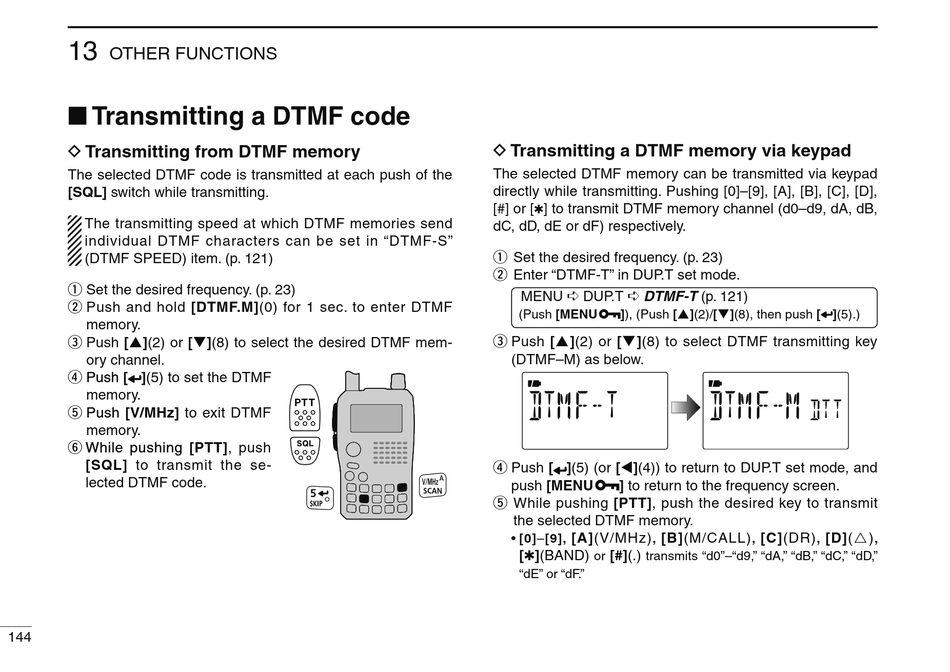

Transmitting a DTMF code

D Transmitting from DTMF memory
The selected DTMF code is transmitted at each push of the
[SQL] switch while transmitting.
The transmitting speed at which DTMF memories send
individual DTMF characters can be set in "DTMF-S"
(DTMF SPEED) item. (p. 121)
q Set the desired frequency. (p. 23)
w Push and hold [DTMF.M](0) for 1 sec. to enter DTMF
memory.
e Push [ ](2) or [ ](8) to select the desired DTMF mem-
ory channel.
r Push
Push [ ](5) to set the DTMF
memory.
t Push
Push [V/MHz] to exit DTMF
memory.
y While pushing
While pushing [PTT], push
[SQL] to transmit the se-
lected DTMF code.
144
D Transmitting a DTMF memory via keypad
The selected DTMF memory can be transmitted via keypad
directly while transmitting. Pushing [0]–[9], [A], [B], [C], [D],
[#] or [ ] to transmit DTMF memory channel (d0–d9, dA, dB,
dC, dD, dE or dF) respectively.
q Set the desired frequency. (p. 23)
w Enter "DTMF-T" in DUP.T set mode.
MENU DUP.T DTMF-T (p. 121)
(Push [MENU ]), (Push [ ](2)/[ ](8), then push [ ](5).)
e Push [ ](2) or [ ](8) to select DTMF transmitting key
(DTMF–M) as below.
r Push [ ](5) (or [ ](4)) to return to DUP.T set mode, and
push [MENU ] to return to the frequency screen.
t While pushing [PTT], push the desired key to transmit
the selected DTMF memory.
[A](V/MHz) [B](M/CALL)
• [0]–[9], ,
[ ](BAND) [#](.)
or transmits "d0"–"d9," "dA," "dB," "dC," "dD,"
"dE" or "dF."
[C](DR) [D]( )
, , ,
