Preparation

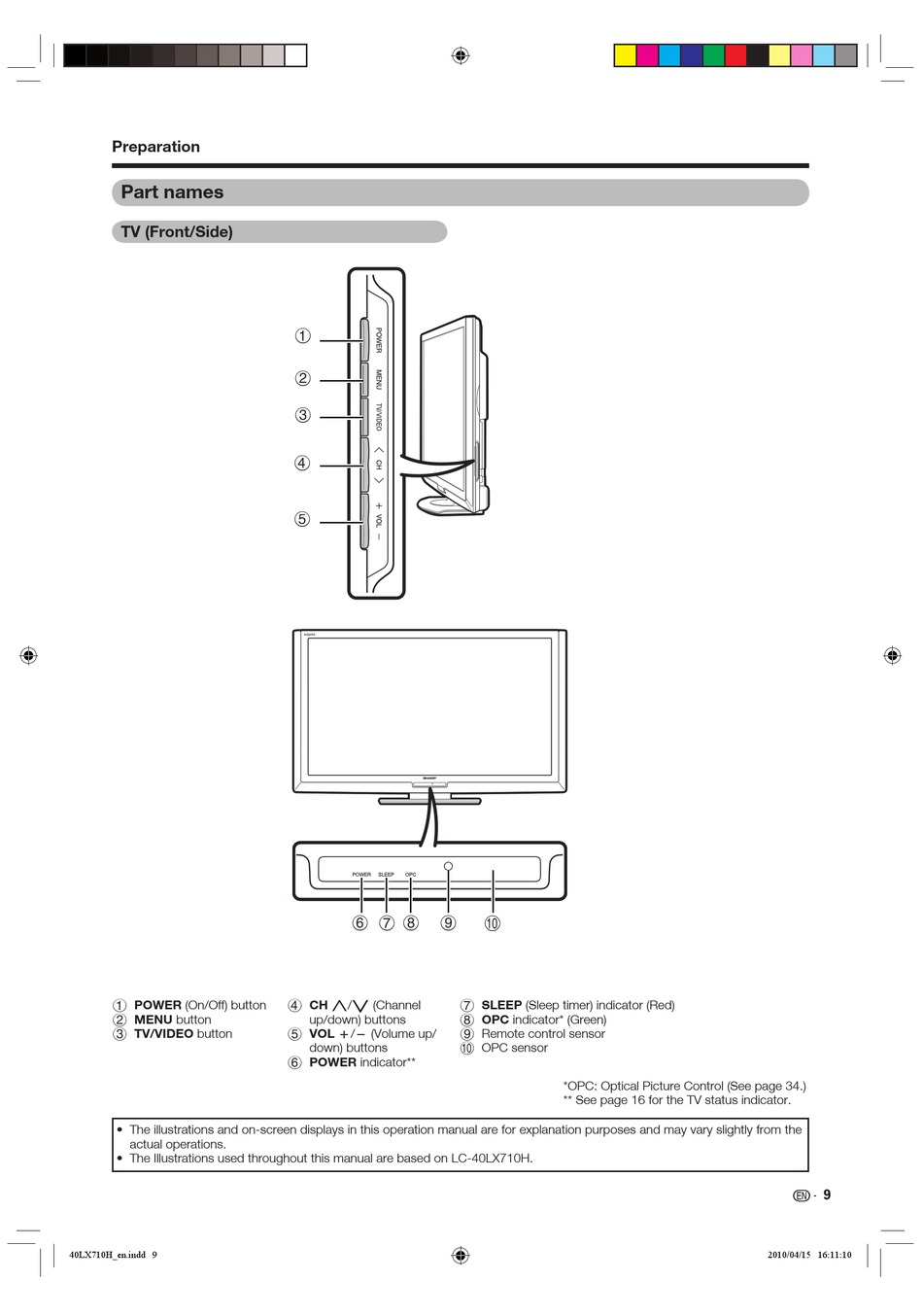

Part names

TV (Front/Side)

1 POWER (On/Off) button
2 MENU button
3 TV/VIDEO button
• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the
actual operations.
• The Illustrations used throughout this manual are based on LC-40LX710H.
40LX710H_en.indd 9 40LX710H_en.indd 9
1
2
3
4
5
6 7 8 9
4 CH r / s (Channel 7 SLEEP (Sleep timer) indicator (Red)
8 OPC indicator* (Green)
up/down) buttons
5 VOL k / l (Volume up/ 9 Remote control sensor
0 OPC sensor
down) buttons
6 POWER indicator**
0
*OPC: Optical Picture Control (See page 34.)
** See page 16 for the TV status indicator.
9
