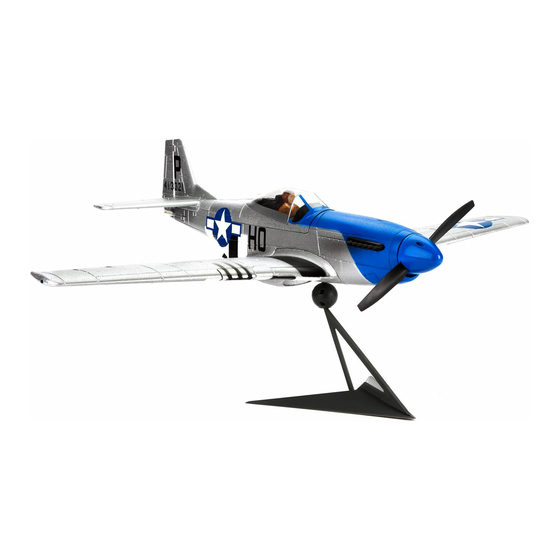

- Page 1 P-51D Mustang 280 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
P-51D Mustang 280 BNF Basic is right at home in the line of 280- to 300-size E-fl ite warbirds. Fitted with the proven power system from the Edge 540QQ, this Mustang will deliver speed and performance not commonly seen in warbirds of this size. -
Page 4: Battery Charging
Battery Charging Choose a charger designed to balance charge 3S Li-Po batteries. We recommend the Celectra 80W AC/DC Multi-Chemistry Battery Charger. Refer to your charger manual for charging instructions. Charging Warnings • Always disconnect the battery after charging, and CAUTION: All instructions and warnings must let the charger cool between charges. -
Page 5: Wing Installation
Wing Installation 1. Remove the canopy by pulling it up, then back to disengage the canopy’s guide pins from the fuselage. 2. Turn the model over so the bottom of the fuselage faces up. 3. Guide the aileron servo wire (A) through the hole on the bottom of the fuselage. -
Page 6: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) CAUTION: When using a Futaba transmitter code of a single specifi c transmitter. You need with a Spektrum DSM ® module, you must reverse ™... -
Page 7: Battery Installation
Battery Installation 1. Remove the canopy. 2. Install the battery (A) in the battery cavity towards the front of the fuselage. Refer to the Center of Gravity instructions for the battery’s position. 3. Connect the fully charged flight battery to the ESC. Refer to the ESC Arming instructions for correct connection of the battery to the ESC. -
Page 8: Control Direction Test
Control Direction Test Bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure the aircraft control surfaces move correctly and in the proper direction. Always keep throttle at the low position during testing. Make sure the tail linkages move freely and that paint or decals are not adhered to them. -
Page 9: Dual Rates And Expos
Dual Rates and Expos High Rate Low Rate We recommend using a DSM radio capable of dual rates and expo. The settings to the right are Aileron 10mm recommended starting settings for intermediate Elevator 9mm pilots. Adjust according to individual preferences after the initial fl... -
Page 10: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before NOTICE: If a crash is imminent, reduce the throttle choosing a location to fl y your aircraft. and trim fully. Failure to do so could result in extra damage to the airframe, as well as damage to the We recommend fl... -
Page 11: Service Of Power Components
Service of Power Components Disassembly CAUTION: Always disconnect the battery before handling or adjusting the propeller or motor. Failure to do so could result in personal injury. Propeller 1. Remove the 2 screws (A) from the spinner (B). Carefully separate the spinner from the back plate (C). -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Aircraft will ESC did not arm because throttle stick and/or Lower throttle stick and throttle trim to lowest not respond throttle trim too high setting to throttle but Throttle channel is reversed Reverse throttle channel on transmitter responds to other controls Motor disconnected from ESC... -
Page 13: Limited Warranty
Limited Warranty What this Warranty Covers WARRANTY SERVICES Horizon Hobby, Inc. (“Horizon”) warrants to the original Questions, Assistance, and Services purchaser that the product purchased (the “Product”) will Your local hobby store and/or place of purchase cannot be free from defects in materials and workmanship at the provide warranty support or service. -
Page 14: Warranty And Service Contact Information
(in accordance with ISO/IEC 17050-1) No. HH2013070301 This product must not be disposed of with other waste. Instead, it is the Product(s): P-51D Mustang 280 user’s responsibility to dispose of their Item Number(s): EFL6150 waste equipment by handing it over Equipment class: 1... -
Page 15: Replacement Parts
