Ethernet Configuration

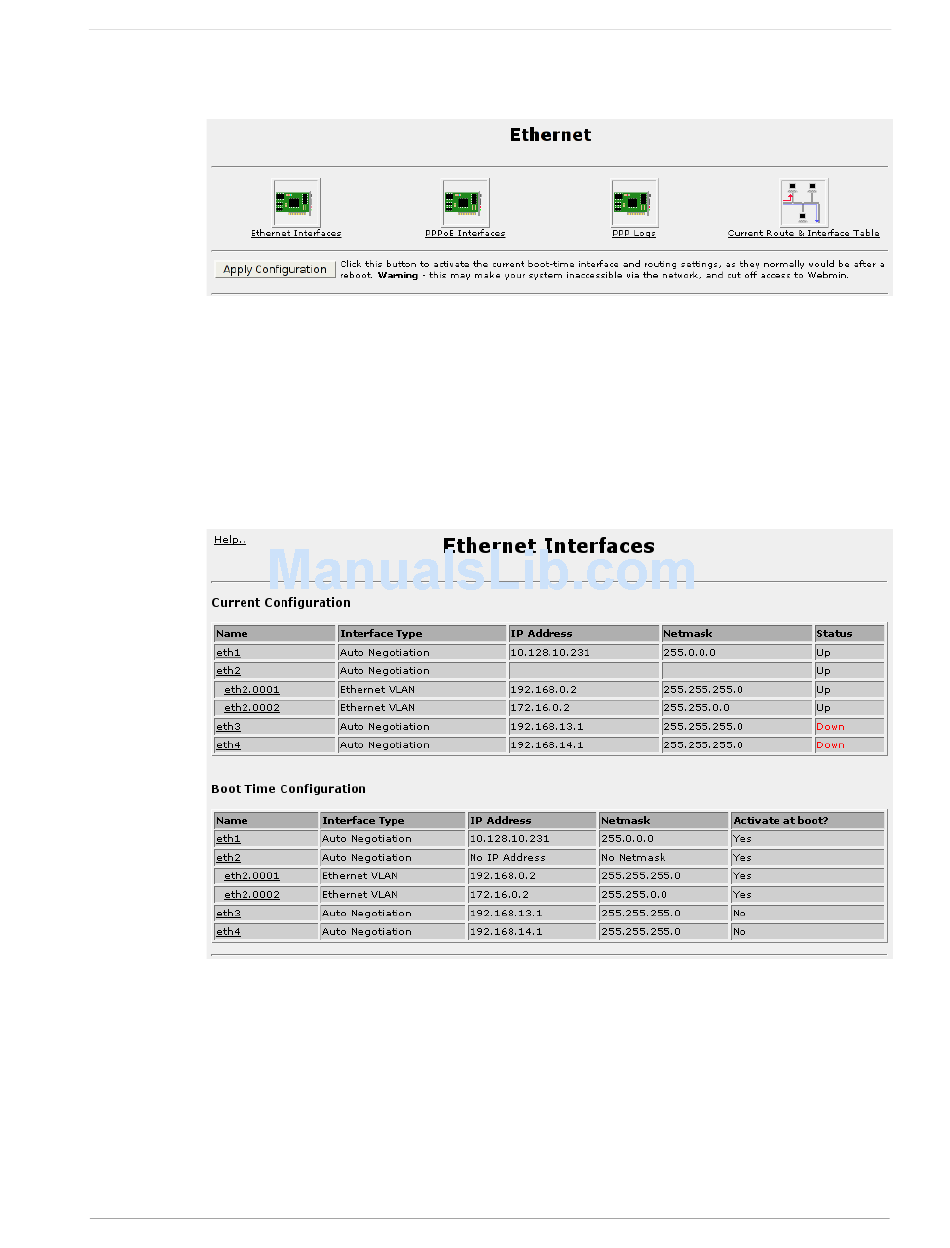

Figure 45: Ethernet Menu

This menu allows you to configure Ethernet interface parameters as well as display
the routes and status of all network interfaces.
Select the Ethernet Interfaces icon to configure Ethernet interfaces.
The Network Interfaces menu lets you edit the permanent configuration of Ethernet
interfaces, or simply try out changes. The Apply Configuration button serves to
restore the permanently saved changes and restart Ethernet networking.

Ethernet Interfaces

Figure 46: Current and Boot Time Ethernet Configuration

This menu allows you to display and configure the Ethernet interfaces in the router.
The Current Configuration table allows you to try out changes on the existing
interfaces before making permanent changes. Any changes made take effect
immediately, but will not be present after the next boot. The entries in this table can
also be used to temporarily disable or re-enable an interface.
The Boot Time Configuration table router allows you make changes to the
"permanent" configuration of any interface.
