INSTALLATION AND CONNECTIONS

I Power supply connections

Use the optional PS-125 / PS-85
when operating the IC-706MKIIG with AC power.
Refer to the diagram below for connection.

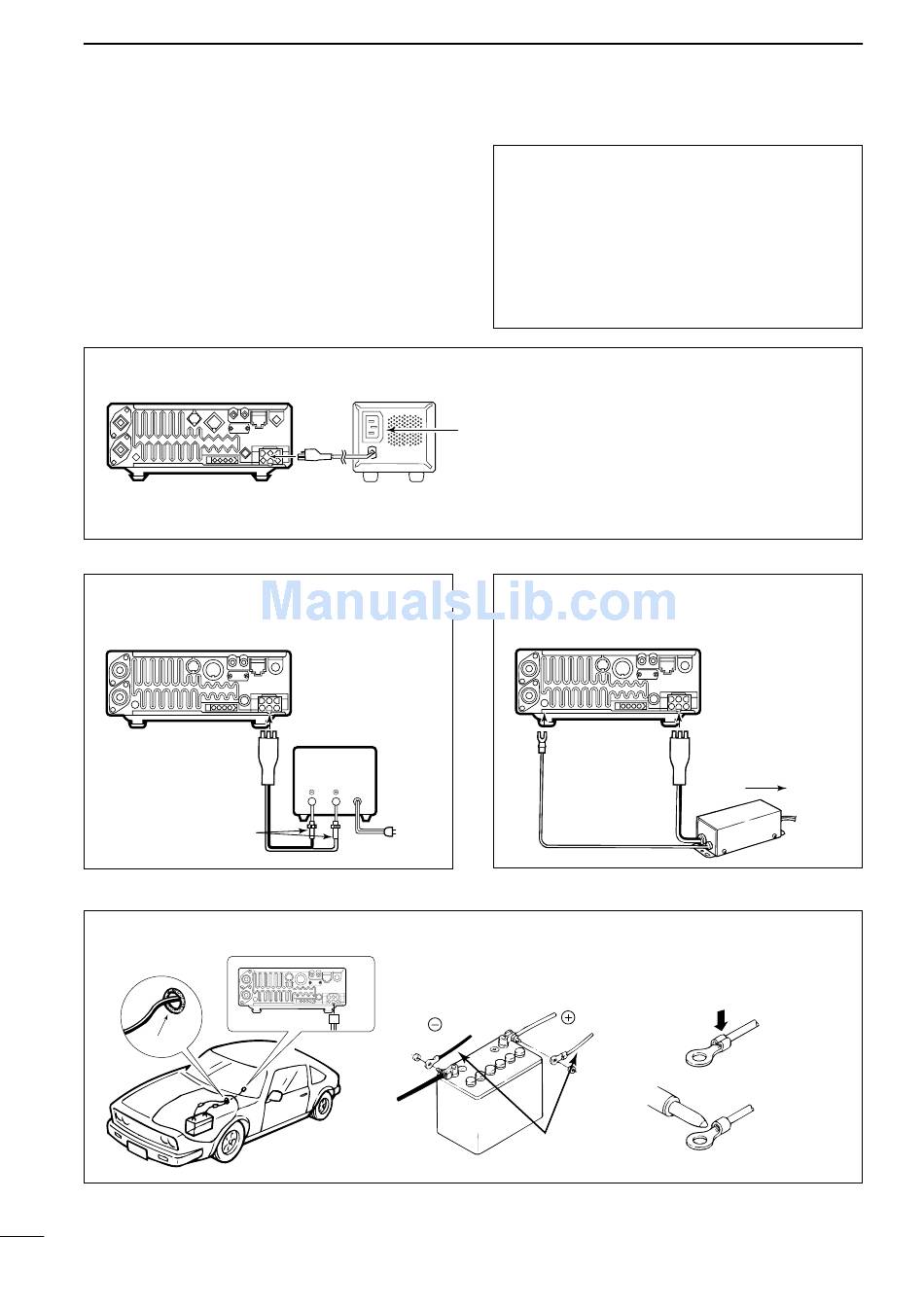

CONNECTING THE PS-125 / PS-85 DC POWER SUPPLY
CONNECTING A NON-ICOM
DC POWER SUPPLY
Transceiver
DC power
socket
Supplied
DC power cable
30 A fuses
CONNECTING A VEHICLE BATTERY
Grommet
13
DC POWER SUPPLY
PS-125 / PS-85
DC power
socket
DC power cable
13.8 V 20 A
Black Red
To AC outlet
NEVER
a 24 V battery.
black
CAUTION:
Before connecting the DC power
cable, check the following important items. Make
sure:
• The [POWER] switch is OFF.
• Output voltage of the power source is 12–15 V
when you use a non-Icom power supply.
• DC power cable polarity is correct.
Red : positive (+) terminal
Black : negative (–) terminal
Connect to an AC outlet
using the supplied AC cable.
Note: When using the PS-125, the IC-
706MKIIG Europe version complies with
EMC directives even if the OPC-639 is
not used.
CONNECTING A NON-ICOM
DC POWER SUPPLY (For Europe versions)
Transceiver
DC power
[GND]
socket
connect to
red
12 V
battery
Supplied
DC power cable
To non-Icom
power supply
OPC-639
Note:
Use terminals for
the cable connections.
Crimp
Solder
