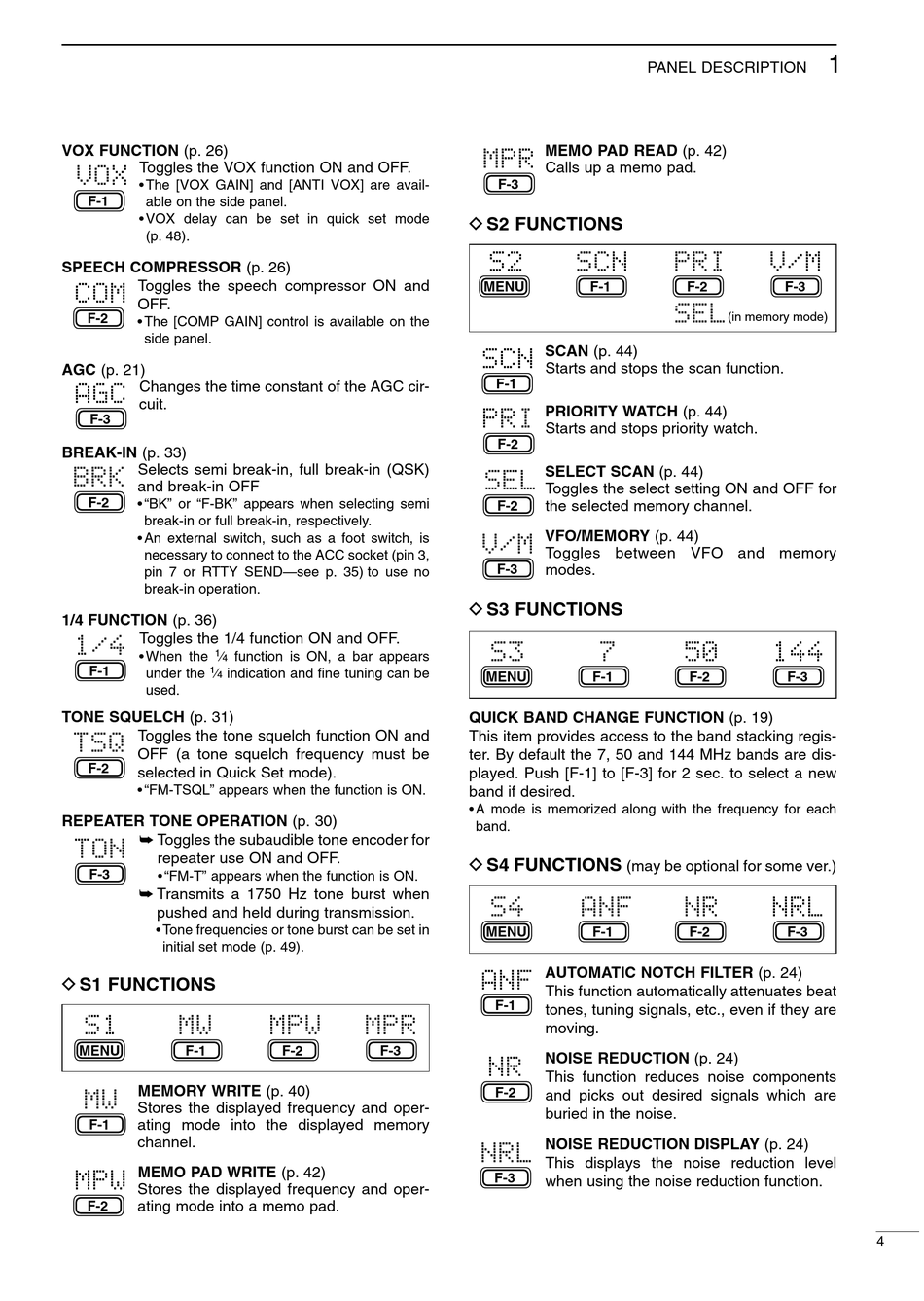

VOX FUNCTION (p. 26)
Toggles the VOX function ON and OFF.
VOX
• The [VOX GAIN] and [ANTI VOX] are avail-
F-1
able on the side panel.
• VOX delay can be set in quick set mode
(p. 48).
SPEECH COMPRESSOR (p. 26)
Toggles the speech compressor ON and
COM
OFF.
F-2
• The [COMP GAIN] control is available on the
side panel.
AGC (p. 21)
Changes the time constant of the AGC cir-
AGC
cuit.
F-3
BREAK-IN (p. 33)
Selects semi break-in, full break-in (QSK)
BRK
and break-in OFF
F-2
• "BK" or "F-BK" appears when selecting semi
break-in or full break-in, respectively.
• An external switch, such as a foot switch, is
necessary to connect to the ACC socket (pin 3,
pin 7 or RTTY SEND—see p. 35) to use no
break-in operation.
1/4 FUNCTION (p. 36)
Toggles the 1/4 function ON and OFF.
1/4
1
• When the ⁄ function is ON, a bar appears
4
F-1
1
under the ⁄ indication and fine tuning can be
4
used.
TONE SQUELCH (p. 31)
Toggles the tone squelch function ON and
TSQ
OFF (a tone squelch frequency must be
F-2
selected in Quick Set mode).
• "FM-TSQL" appears when the function is ON.
REPEATER TONE OPERATION (p. 30)
➥ Toggles the subaudible tone encoder for
TON
repeater use ON and OFF.
F-3
• "FM-T" appears when the function is ON.
➥ Transmits a 1750 Hz tone burst when
pushed and held during transmission.
• Tone frequencies or tone burst can be set in
initial set mode (p. 49).
D S1 FUNCTIONS
S1 MW
MENU F-1
MEMORY WRITE (p. 40)
MW
Stores the displayed frequency and oper-
ating mode into the displayed memory
F-1
channel.
MEMO PAD WRITE (p. 42)
MPW
Stores the displayed frequency and oper-
F-2 ating mode into a memo pad.
MPW MPR
F-2 F-3
MEMO PAD READ (p. 42)
MPR
Calls up a memo pad.
F-3
D S2 FUNCTIONS
S2 SCN
MENU F-1
SCAN (p. 44)
SCN
Starts and stops the scan function.
F-1
PRIORITY WATCH (p. 44)
PRI
Starts and stops priority watch.
F-2
SELECT SCAN (p. 44)
SEL
Toggles the select setting ON and OFF for
the selected memory channel.
F-2
VFO/MEMORY (p. 44)
V/M
Toggles between VFO and memory
F-3 modes.
D S3 FUNCTIONS
S3 7
MENU F-1
QUICK BAND CHANGE FUNCTION (p. 19)
This item provides access to the band stacking regis-
ter. By default the 7, 50 and 144 MHz bands are dis-
played. Push [F-1] to [F-3] for 2 sec. to select a new
band if desired.
• A mode is memorized along with the frequency for each
band.
D S4 FUNCTIONS
(may be optional for some ver.)
S4 ANF
MENU F-1
AUTOMATIC NOTCH FILTER (p. 24)
ANF
This function automatically attenuates beat
F-1
tones, tuning signals, etc., even if they are
moving.
NOISE REDUCTION (p. 24)
NR
This function reduces noise components
F-2
and picks out desired signals which are
buried in the noise.
NOISE REDUCTION DISPLAY (p. 24)
NRL
This displays the noise reduction level
F-3
when using the noise reduction function.
PANEL DESCRIPTION
PRI V/M
F-2 F-3
SEL
(in memory mode)
50 144
F-2 F-3
NR NRL
F-2 F-3
1
4
