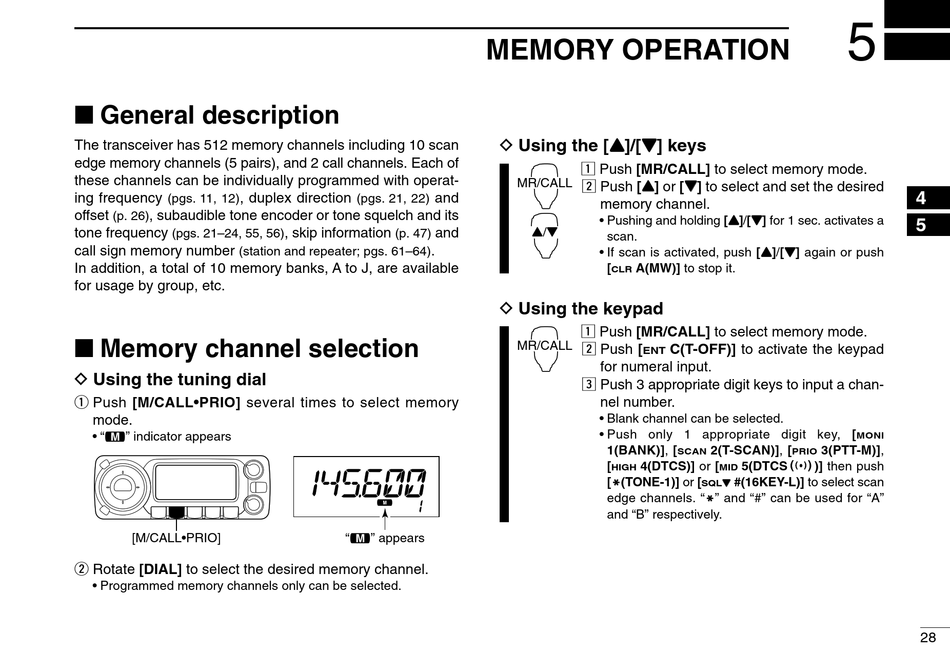

I General description

The transceiver has 512 memory channels including 10 scan
edge memory channels (5 pairs), and 2 call channels. Each of
these channels can be individually programmed with operat-
ing frequency , duplex direction
(pgs. 11, 12)
offset , subaudible tone encoder or tone squelch and its
(p. 26)
tone frequency
(pgs. 21–24, 55, 56)
call sign memory number
(station and repeater; pgs. 61–64)
In addition, a total of 10 memory banks, A to J, are available
for usage by group, etc.

I Memory channel selection

D Using the tuning dial
q Push [M/CALL•PRIO] several times to select memory
mode.
• "!" indicator appears
[M/CALL•PRIO]
w Rotate [DIAL] to select the desired memory channel.
• Programmed memory channels only can be selected.
and
(pgs. 21, 22)
, skip information and
(p. 47)
.
"!" appears

MEMORY OPERATION

D Using the [Y Y ]/[Z Z ] keys
z Push [MR/CALL] to select memory mode.
MR/CALL
x Push [Y Y ] or [Z Z ] to select and set the desired
memory channel.
• Pushing and holding [Y Y ]/[Z Z ] for 1 sec. activates a
Y/Z
scan.
• If scan is activated, push [Y Y ]/[Z Z ] again or push
[ A(MW)] to stop it.
CLR
D Using the keypad
z Push [MR/CALL] to select memory mode.
MR/CALL
x Push [
ENT
for numeral input.
c Push 3 appropriate digit keys to input a chan-
nel number.
• Blank channel can be selected.
• Push only 1 appropriate digit key, [
1(BANK)], [
[ 4(DTCS)] or [
HIGH
[M M (TONE-1)] or [
edge channels. "M M " and "#" can be used for "A"
and "B" respectively.
5
C(T-OFF)] to activate the keypad
2(T-SCAN)], [ 3(PTT-M)],
SCAN PRIO
S )] then push
5(DTCSS
MID
#(16KEY-L)] to select scan
Z Z
SQL
4
5
MONI
