I Lock Functions - Icom ID-800H Instruction Manual

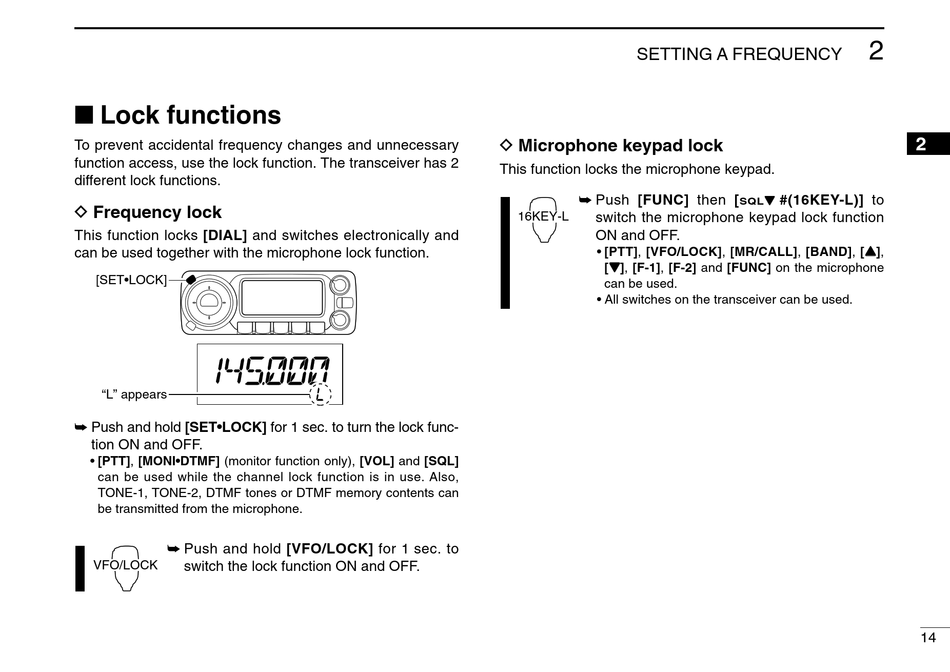

I Lock functions

To prevent accidental frequency changes and unnecessary
function access, use the lock function. The transceiver has 2
different lock functions.
D Frequency lock
This function locks [DIAL] and switches electronically and
can be used together with the microphone lock function.
[SET•LOCK]
"L" appears
➥ Push and hold [SET•LOCK] for 1 sec. to turn the lock func-
tion ON and OFF.
• [PTT], [MONI•DTMF] (monitor function only), [VOL] and [SQL]
can be used while the channel lock function is in use. Also,
TONE-1, TONE-2, DTMF tones or DTMF memory contents can
be transmitted from the microphone.
➥ Push and hold [VFO/LOCK] for 1 sec. to
VFO/LOCK switch the lock function ON and OFF.
SETTING A FREQUENCY
D Microphone keypad lock
This function locks the microphone keypad.
➥ Push [FUNC] then [
16KEY-L
switch the microphone keypad lock function
ON and OFF.
• [PTT], [VFO/LOCK], [MR/CALL], [BAND], [Y Y ],
[Z Z ], [F-1], [F-2] and [FUNC] on the microphone
can be used.
• All switches on the transceiver can be used.
2
2
#(16KEY-L)] to
Z Z
SQL
14
