Icom ID-800H Instruction Manual page 125

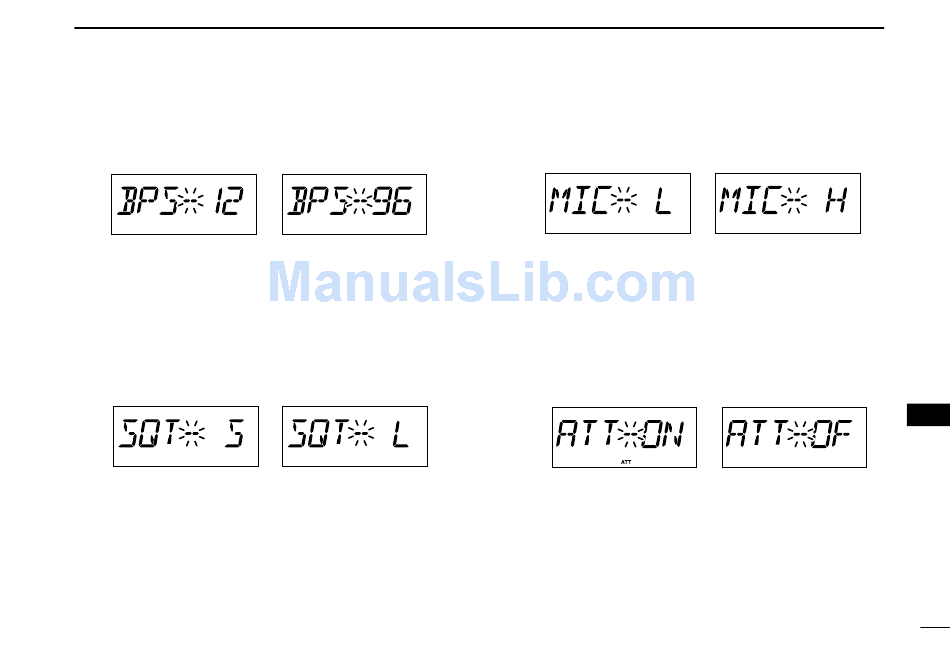

D D Data transmission speed
Selects the data transmission speed for packet operation
from 1200 bps and 9600 bps.
D D Squelch delay
Selects squelch delay from short and long to prevent re-
peated opening and closing of the squelch during reception
of the same signal.
• S : Short squelch delay. (default)
• L : Long squelch delay.
D D Microphone sensitivity
Selects the microphone sensitivity from high (H) and low (L)
(default: 1200 bps) to suits your preference.
D D Squelch attenuator
Turns the squelch attenuator function ON (default) and OFF.
OTHER FUNCTIONS
• ON : The squelch attenuator activates when [SQL]
control is set between 12 o'clock and fully
clockwise position.
• OF : The squelch attenuator does not function.
12
(default: Low)
12
108
