Removal and Replacement
Removing and Replacing a PCI Smart Fan Assembly

Removing a PCI Smart Fan Assembly

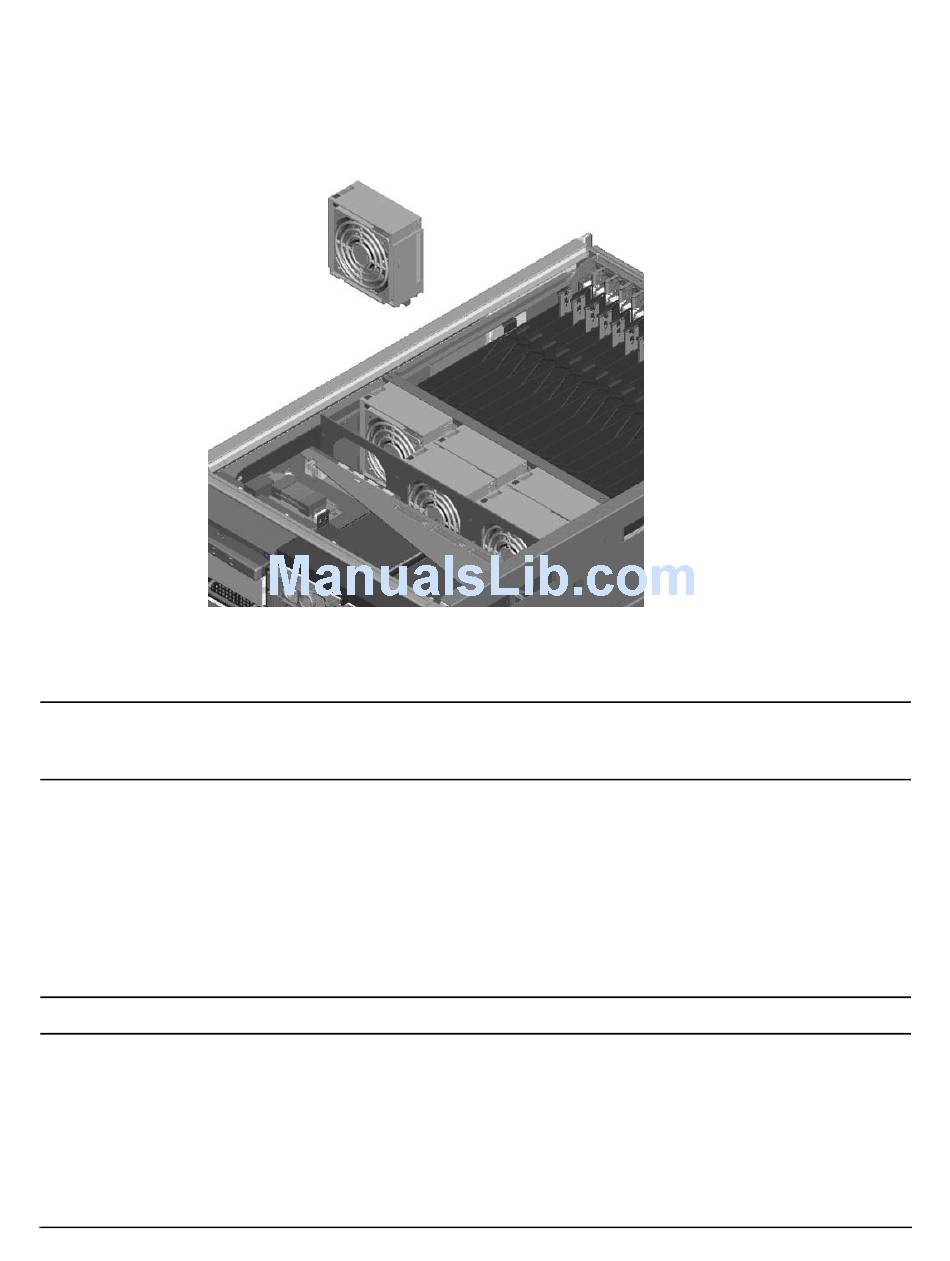

Figure 4-13 PCI Smart Fan Assembly Detail
Step 1. Securely grasp the two thumb holds on the fan assembly.
NOTE
Step 2. Slide the fan upward from the chassis.

Replacing a PCI Smart Fan Assembly

Step 1. Carefully position the fan assembly in the chassis.
Step 2. The fan easily slides into the chassis; however, a slow firm pressure will be needed to properly seat
the connection.
NOTE A green fan LED indicates the fan is operational.
74
The two right side fans, as viewed from the front, are located very close to the
chassis. It may be necessary to use a tool such as a flatblade screwdriver to assist in
removing them.
Chapter 4
