8

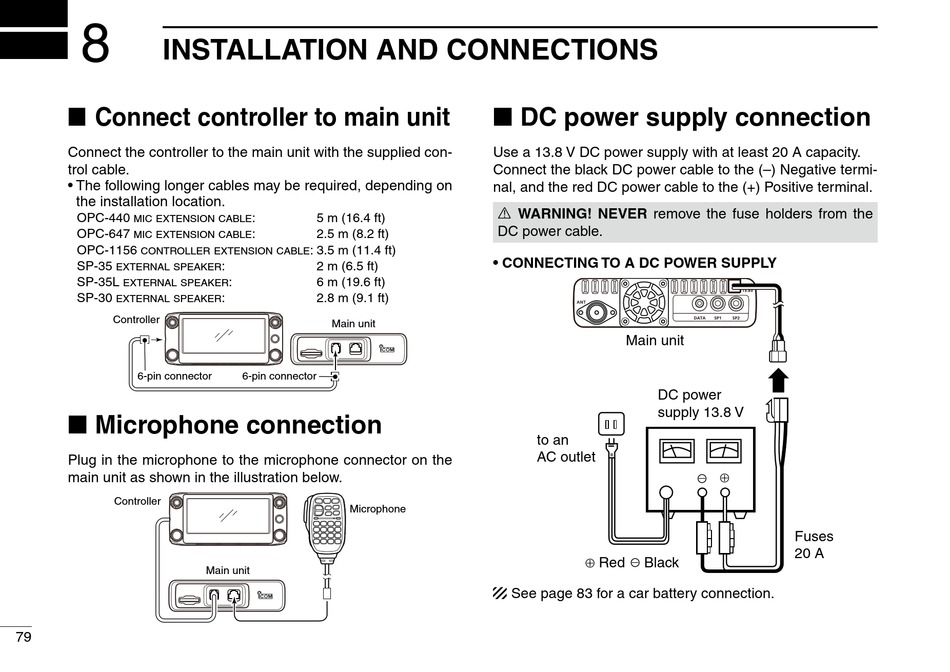

INSTALLATION AND CONNECTIONS

■ Connect controller to main unit

Connect the controller to the main unit with the supplied con-
trol cable.
• The following longer cables may be required, depending on
the installation location.
OPC-440
mic extension cable
OPC-647
mic extension cable
OPC-1156
controller extension cable
SP-35
external speaker
SP-35L
external speaker
SP-30
external speaker
Controller
6-pin connector

■ Microphone connection

Plug in the microphone to the microphone connector on the
main unit as shown in the illustration below.
Controller
79
: 5 m (16.4 ft)
: 2.5 m (8.2 ft)
: 3.5 m (11.4 ft)
: 2 m (6.5 ft)
: 6 m (19.6 ft)
: 2.8 m (9.1 ft)
Main unit
6-pin connector
Microphone
Main unit

■ DC power supply connection

Use a 13.8 V DC power supply with at least 20 A capacity.
Connect the black DC power cable to the (–) Negative termi-
nal, and the red DC power cable to the (+) Positive terminal.
R WARNING! NEVER remove the fuse holders from the
DC power cable.
• CONNECTING TO A DC POWER SUPPLY
Main unit
DC power
supply 13.8 V
to an
AC outlet
−
⊕ Red Black
See page 83 for a car battery connection.
− ⊕
Fuses
20 A
