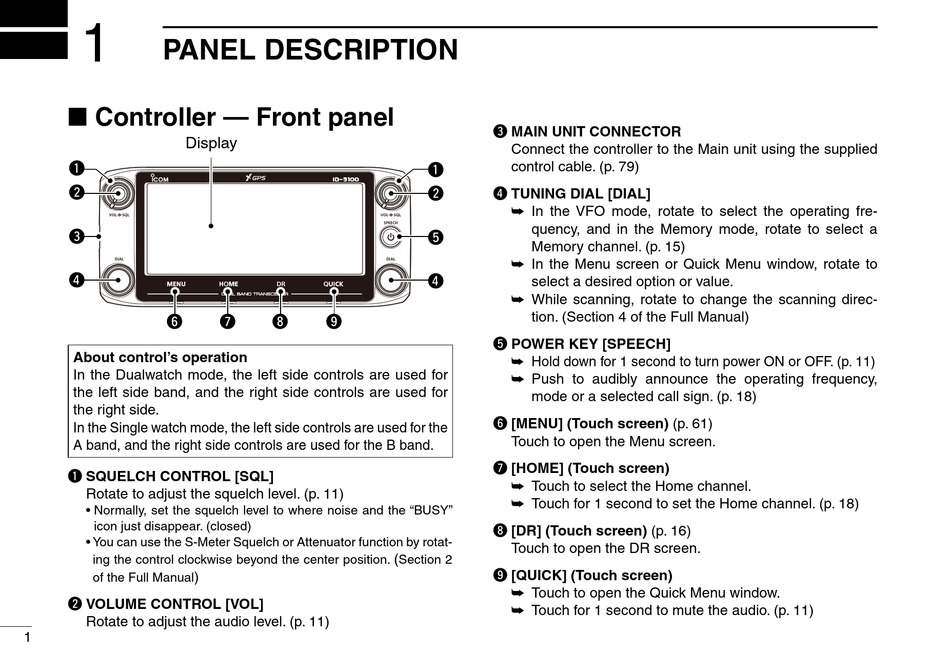

PANEL DESCRIPTION

■ Controller — Front panel
Display
q
w
e
r
y
About control's operation
In the Dualwatch mode, the left side controls are used for
the left side band, and the right side controls are used for
the right side.
In the Single watch mode, the left side controls are used for the
A band, and the right side controls are used for the B band.
q SQUELCH CONTROL [SQL]
Rotate to adjust the squelch level. (p. 11)
• Normally, set the squelch level to where noise and the "BUSY"
icon just disappear. (closed)
• You can use the S-Meter Squelch or Attenuator function by rotat-
ing the control clockwise beyond the center position.
)
of the Full Manual
w VOLUME CONTROL [VOL]
Rotate to adjust the audio level. (p. 11)
1
ID-5100
u i o
(
Section 2
e MAIN UNIT CONNECTOR
Connect the controller to the Main unit using the supplied
control cable. (p. 79)
q
w r TUNING DIAL [DIAL]
In the VFO mode, rotate to select the operating fre-
➥
quency, and in the Memory mode, rotate to select a
t
Memory channel. (p. 15)
In the Menu screen or Quick Menu window, rotate to
➥
r select a desired option or value.
While scanning, rotate to change the scanning direc-
➥
tion. (Section 4 of the Full Manual)
t POWER KEY [SPEECH]
Hold down for 1 second to turn power ON or OFF. (p. 11)
➥
Push to audibly announce the operating frequency,
➥
mode or a selected call sign. (p. 18)
y [MENU] (Touch screen) (p. 61)
Touch to open the Menu screen.
u [HOME] (Touch screen)
Touch to select the Home channel.
➥
Touch for 1 second to set the Home channel. (p. 18)
➥
i [DR] (Touch screen) (p. 16)
Touch to open the DR screen.
o [QUICK] (Touch screen)
Touch to open the Quick Menu window.
➥
Touch for 1 second to mute the audio. (p. 11)
➥
