RWARNING! (About DC power supply)
• Make sure DC power cable polarity is correct.
Red: Positive + terminal
Black: Negative – terminal
• DO NOT pull or bend the DC power cable.
Fuse
holders
⊕ Red
− Black
12 V
battery
INSTALLATION AND CONNECTIONS

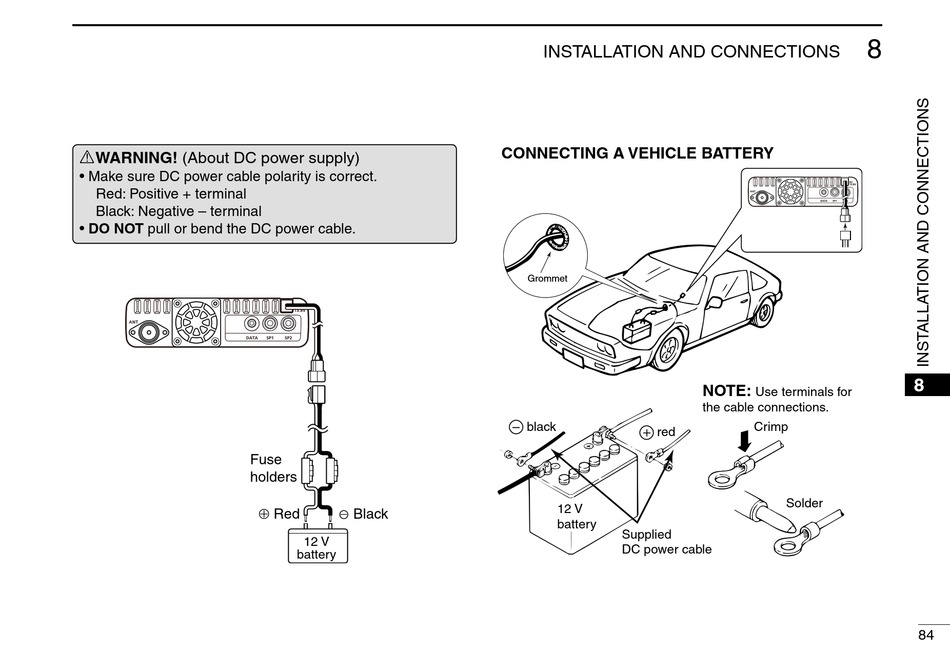

CONNECTING A VEHICLE BATTERY
Grommet
black
red
12 V
battery
Supplied
DC power cable
8
NOTE:
Use terminals for
the cable connections.
Crimp
Solder
8
