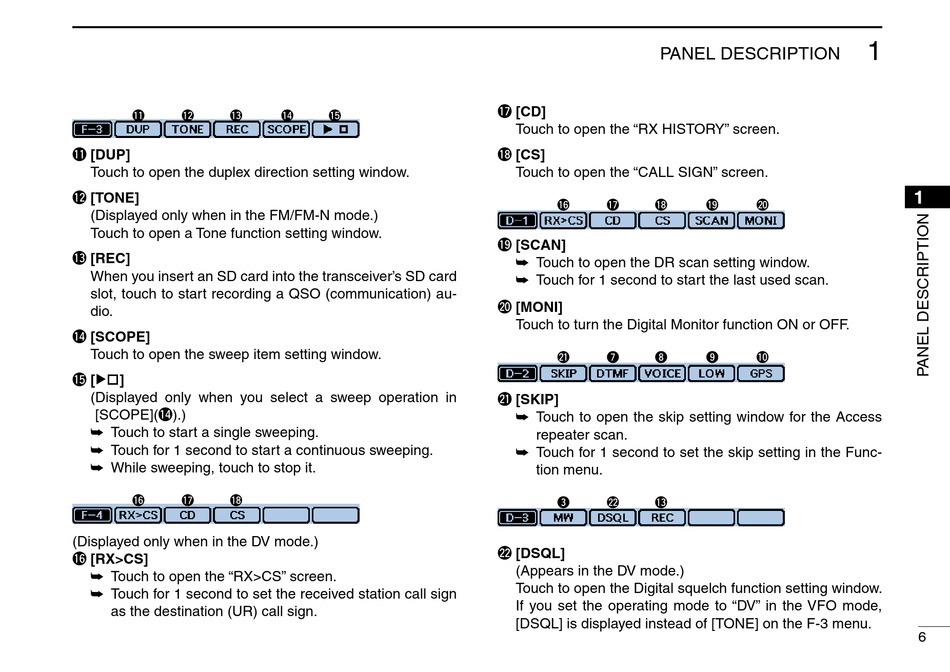

Icom ID-5100A Basic Manual page 19

!1 !2 !3
!1 [DUP]
Touch to open the duplex direction setting window.
!2 [TONE]
(Displayed only when in the FM/FM-N mode.)
Touch to open a Tone function setting window.
!3 [REC]
When you insert an SD card into the transceiver's SD card
slot, touch to start recording a QSO (communication) au-
dio.
!4 [SCOPE]
Touch to open the sweep item setting window.
!5 [≈]
( Displayed only when you select a sweep operation in
[SCOPE](!4 ) .)
Touch to start a single sweeping.
➥
Touch for 1 second to start a continuous sweeping.
➥
While sweeping, touch to stop it.
➥
!6 !7 !8
(Displayed only when in the DV mode.)
!6 [RX>CS]
Touch to open the "RX>CS" screen.
➥
Touch for 1 second to set the received station call sign
➥
as the destination (UR) call sign.
!4 !5
PANEL DESCRIPTION
!7 [CD]
Touch to open the "RX HISTORY" screen.
!8 [CS]
Touch to open the "CALL SIGN" screen.
!6 !7 !8
!9 [SCAN]
Touch to open the DR scan setting window.
➥
Touch for 1 second to start the last used scan.
➥
@0 [MONI]
Touch to turn the Digital Monitor function ON or OFF.
@1 u i
@1 [SKIP]
Touch to open the skip setting window for the Access
➥
repeater scan.
Touch for 1 second to set the skip setting in the Func-
➥
tion menu.
e @2 !3
@2 [DSQL]
(Appears in the DV mode.)
Touch to open the Digital squelch function setting window.
If you set the operating mode to "DV" in the VFO mode,
[DSQL] is displayed instead of [TONE] on the F-3 menu.
1
!9 @0
o !0
1
6
