Printer Parts

> Printer parts
Printer parts

Front ................................................................................................................................................................ 896

Back ................................................................................................................................................................ 898
Top Cover (Inside) ........................................................................................................................................... 899
Carriage ........................................................................................................................................................... 900
Ink Tank Cover (Inside) ................................................................................................................................... 901
Stand .............................................................................................................................................................. 903
Media Take-up Unit (Optional) ........................................................................................................................ 904

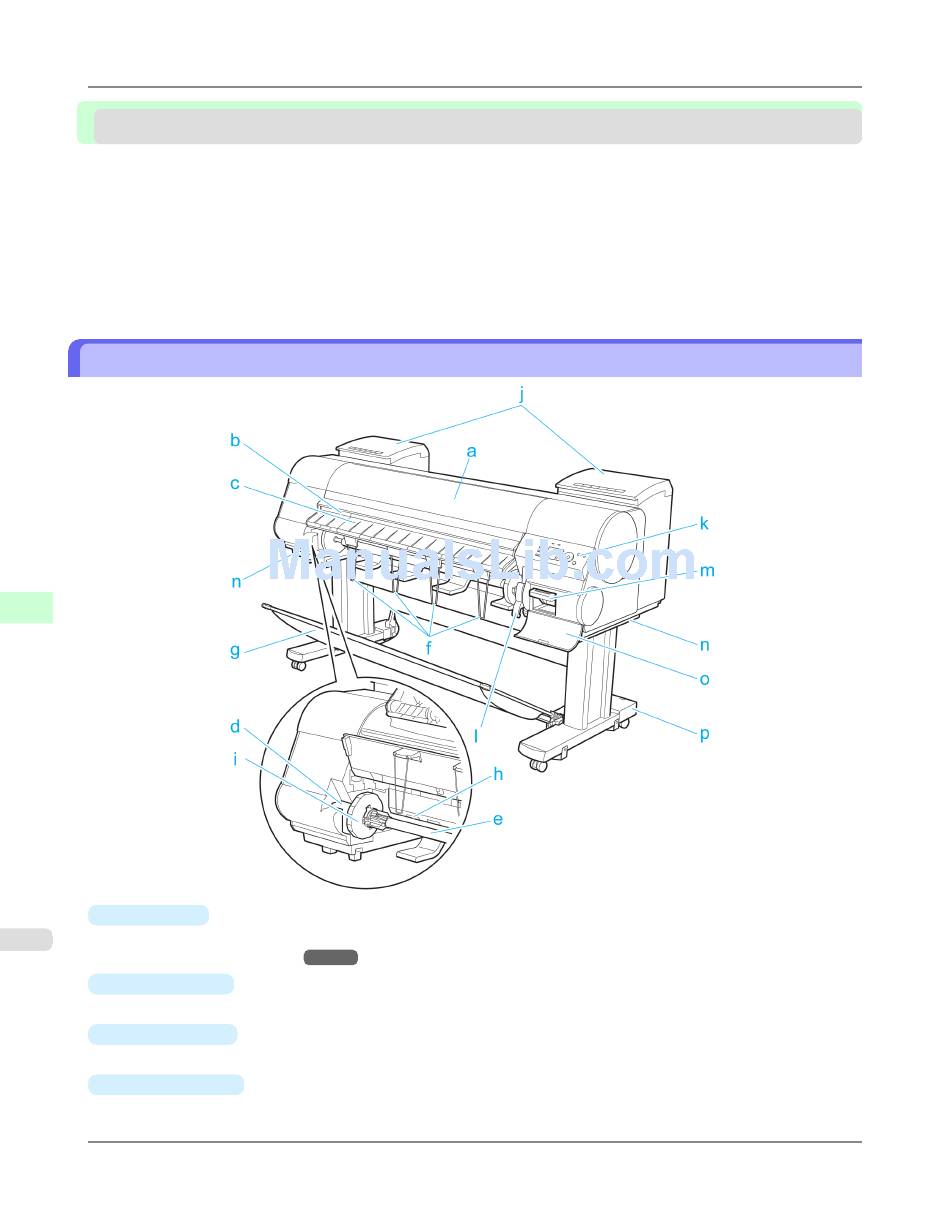

Front
8
a. Top Cover
896 Open this cover to install the Printhead, load paper, and remove any jammed paper from inside the printer as needed.
(See "Top Cover (Inside).")
b. Cutter Groove
Paper is cut (using the cutter or manually with scissors) over this groove.
c. Ejection Guide
Guides printed documents as they are ejected. Raise the guide when loading a roll.
d. Roll Holder Slot
Slide the Roll Holder into this slot.
Front
>
→P.899
iPF8300S
