AT820 Series User Manual

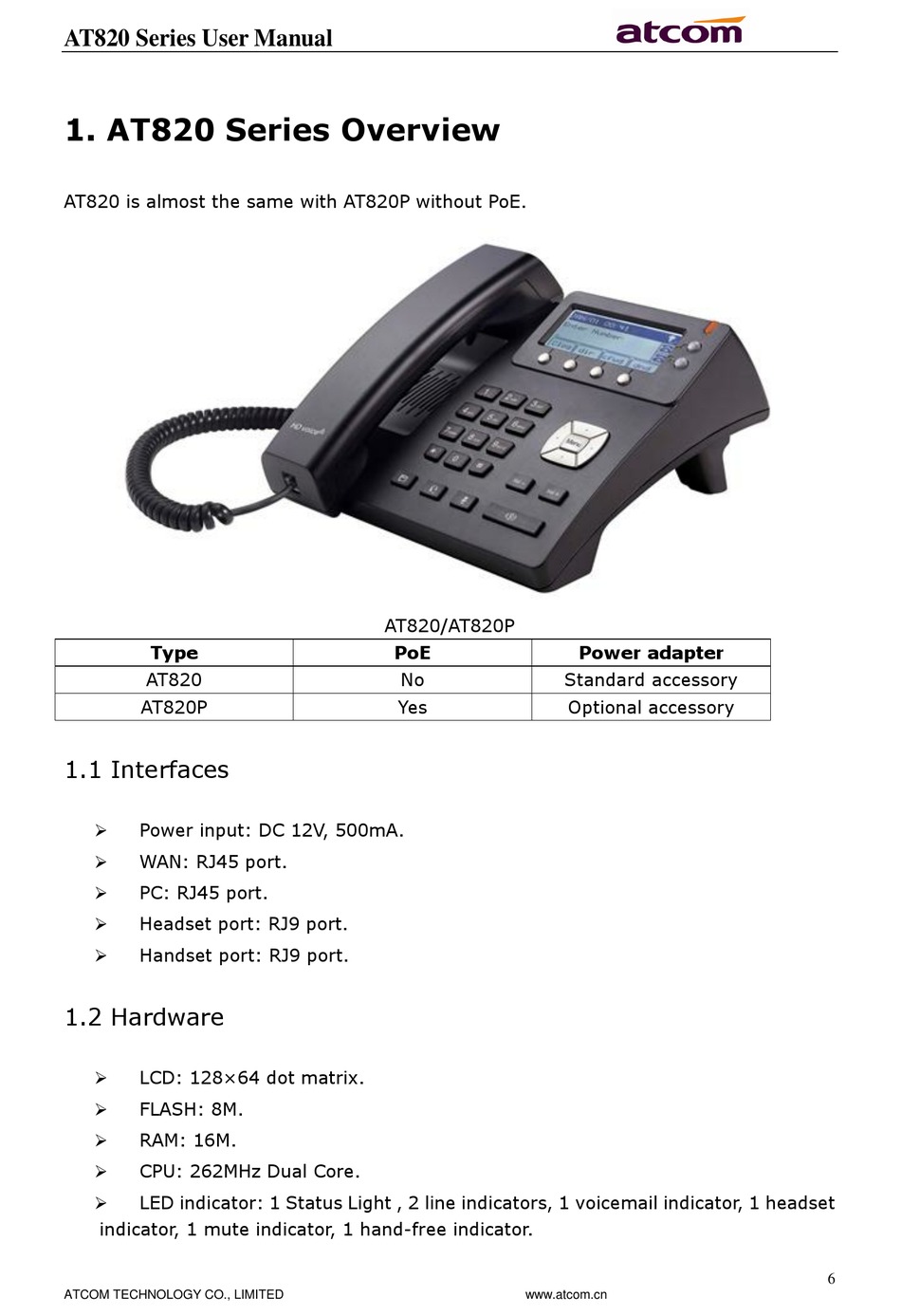

1. AT820 Series Overview

AT820 is almost the same with AT820P without PoE.
Type
AT820
AT820P

1.1 Interfaces

Power input: DC 12V, 500mA.

WAN: RJ45 port.

PC: RJ45 port.

Headset port: RJ9 port.

Handset port: RJ9 port.


1.2 Hardware

LCD: 128×64 dot matrix.

FLASH: 8M.

RAM: 16M.

CPU: 262MHz Dual Core.

LED indicator: 1 Status Light , 2 line indicators, 1 voicemail indicator, 1 headset

indicator, 1 mute indicator, 1 hand-free indicator.
ATCOM TECHNOLOGY CO., LIMITED
AT820/AT820P
PoE
No
Yes
www.atcom.cn
Power adapter
Standard accessory
Optional accessory
